NoisePAD

NoisePAD is a class of 4-channel real-time analyser for noise & vibration. The combination of a robust 8” tablet and analyser meets the standard MIL 810.

Sinus Messtechnik

Interested

For more information on NoisePAD or to request a quote, contact our team now:

Request a QuoteContact us

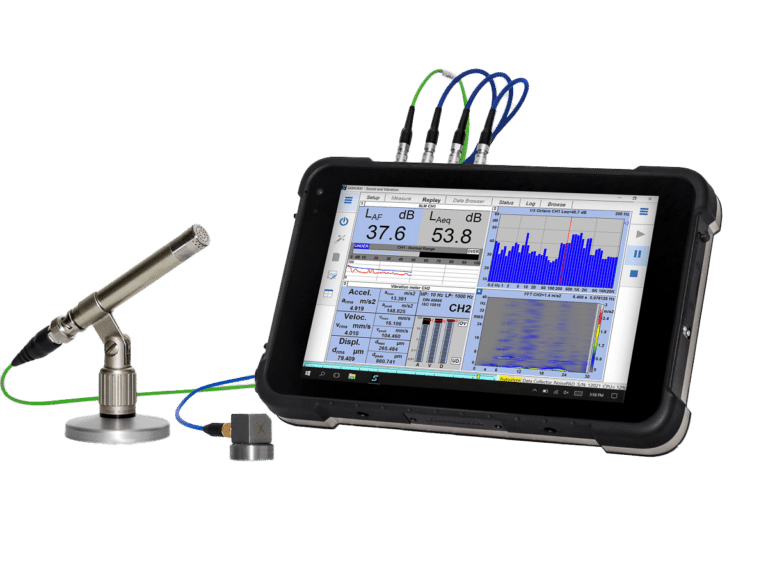

The NoisePAD is a 4-channel noise and vibration analyser. Minimal size and weight make the NoisePAD a perfect fit for mobile applications thus closing the gap between Sinus’ hand-held sound level meters and the Soundbook measuring system. Very low power consumption allows tripling of the battery life compared to the Soundbook to a maximum of 12 hours.

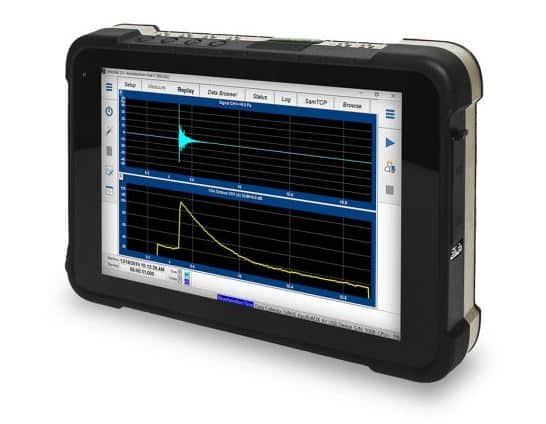

This combination of a robust industrial 8-inch tablet and a DSP-based analyzer complies with MIL-STD-810. Rubber seals protect all connectors from water and dust. The NoisePAD thus fulfils the requirements of IP54.

The NoisePAD has two additional tacho/trigger channels for rotational speed measurements as well as external control of the instrument. It also offers a signal generator output, which allows to generate noise or sweep signals for example. The integrated LEMO CAMA connectors enable secure and reliable interfacing with ICP/IPEE sensors.

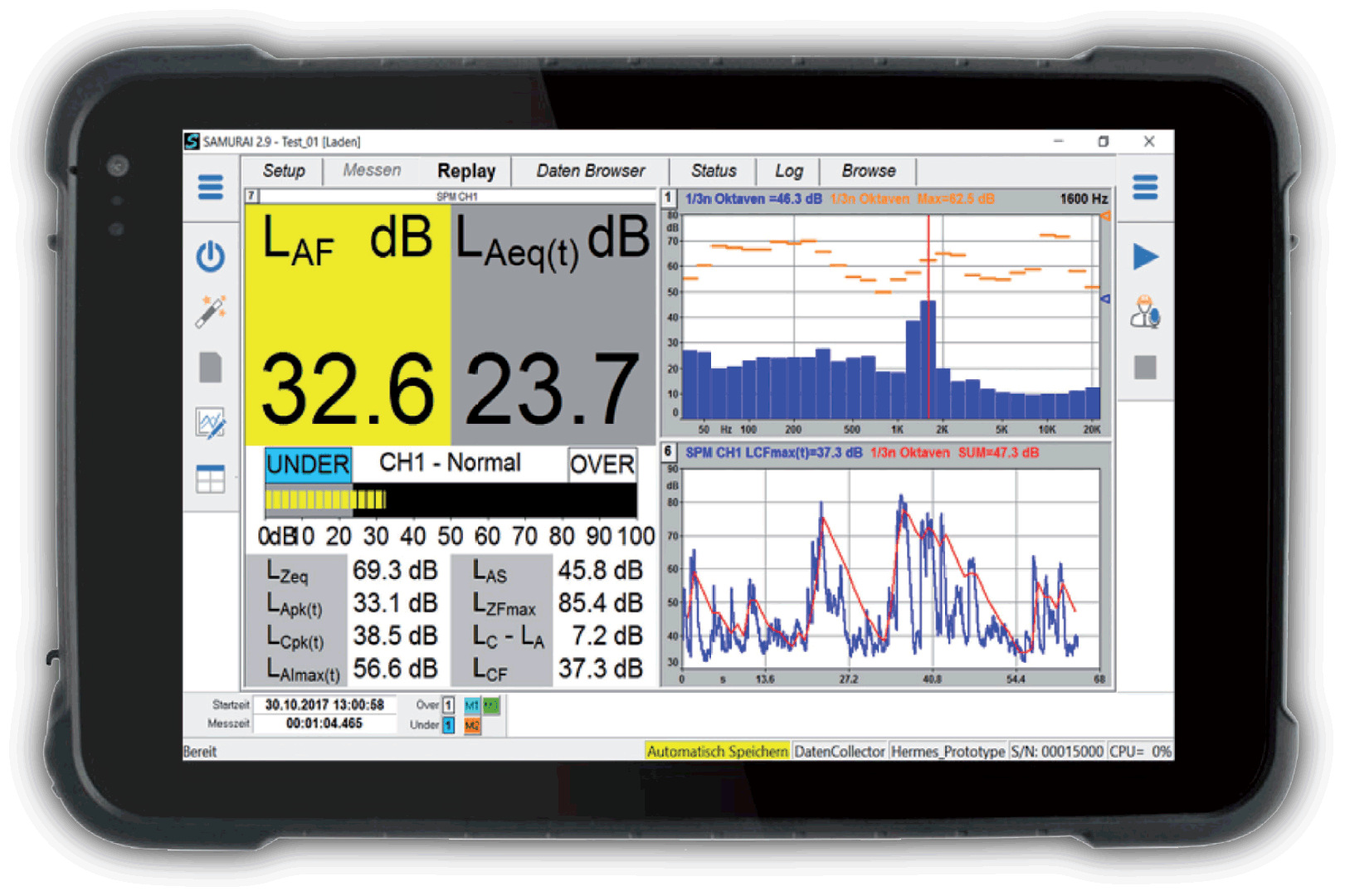

The NoisePAD  features a full version of Windows 10 supporting all common Windows applications. The new optimized software interface of SAMURAI 3.0 has been adapted to support the NoisePAD™ touch control. This allows you to cross-use our software products on the NoisePAD.

Interfaces as USB, Bluetooth, 4G and WiFi, SD cards as well as front and rear cameras extend the application scope of this instrument.

NoisePAD is especially well suited for:

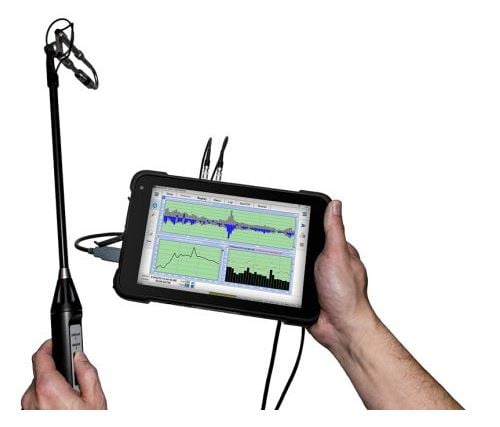

  • Sound intensity measurements
  • ISO 9614 sound power measurements
  • Rotor balancing
  • Machinery vibration measurements
  • Building acoustics
  • Noise and vibration monitoring
  • Occupational health/human vibration measurements
  • Environmental noise & building vibration monitoring
  • Engineering services
  • Quality assurance
  • Frequency analysis

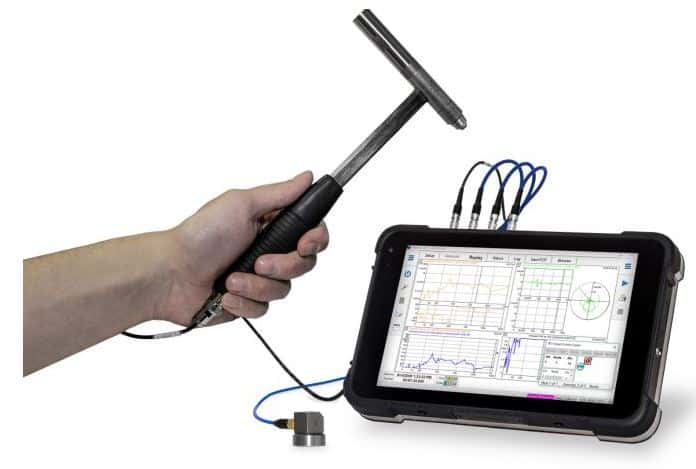

  • Modal analysis
  • Order analysis
  • Structural analysis

    Integrated PC

    Device basis: 8″ Tablet PC
    FinishIP54 magnesium case
    ProcessorIntel ATOM Cherrytrail
    RAM4GB
    DisplayBright 8″ TFT 1024 x600
    Storage medium128 GByte SSD
    Interface12x USB, WLAN, Bluetooth, SD-Card, 4G-modem, HDMI, GPS, 2x Kamera
    Operating systemWindows 10, multiple languages

    Specifications

    General technical specifications of NoisePAD™
    Input channels 4
    Plug typeLemo NIM-CAMAC (BNC Adaptor cable available)
    Resolution24 bit
    Real-time bandwidthDC … 51.2kHz @ 4 channels
    Dynamic range110dB
    Noise< 1μV(A), < 2μV(Z) @ 0.1Hz … 20 kHz
    Sample rates200Hz to 51.2 kHz
    Decimationup to 200Hz sample rate, selectable per channel
    Anti-aliasing filteryes
    Max. input voltage±10Vpeak @ head room of 1dB
    Gain0dB, 20dB
    Over-voltage detectionyes, automatically with self-calibration
    Phase shift< 0.1° @ 20Hz … 20 kHz
    Offset correctionyes, automatically at internal calibration
    Imput couplingDC, AC 0.15Hz, HP 1Hz, HP 10Hz, LP 2kHz
    ICP supply2 mA
    Cable error detectionyes, for ICP sensors
    TEDS according to IEEE 1451.4yes
    Output channel
    Resolution24 bit
    BandwidthDC … 20 kHz
    Max. output voltage±3.16Vpeak
    Plug typeLemo NIM-CAMAC (BNC Adaptor cable available)
    Special channels
    Trigger2x trigger / tacho, trigger level adjustable 0.1Hz … 6 MHz
    Plug typeLemo NIM-CAMAC (BNC Adaptor cable available)
    Synchronisationno
    Dimensions and weight
    Dimensions226 mm x 156 mm x 28 mm
    Weight950 g
    BatteryLithium-ion battery, 12 h measurement capacity
    External power supply100 … 240VAC or 5 VDC with adaptors
    Environmental conditions
    Protection classIP54 / IP50 without with Lemo NIM-CAMAC protecting caps
    Shock resistancecomplies with MIL-STD 810F
    Humidity30% … 90%
    Temperature range-10°C … +50°C
    Storage conditions-20°C … +60°C, 95% humidity maximum
    EMC
    Emissionscomplies with EN50081-1
    Immissionscomplies with EN50082-1
    Order details
    PART NO.DESCRIPTION
    903000.2NoisePad_4C
    Order details NoisePAD accessories
    PART NO.DESCRIPTION
    802165.4NoisePad_carrying case
    903010.7NoisePad_docking
    601370.3NoisePad power supply
    978074.4ACAMAC/BNCw Adapter cable 0.25 m
    978070.3ACAMAC/BNC cable 1.5 m
    978071.1CAMAC/BNC cable 3 m
    978072.8CAMAC/BNC cable 10 m
    978065.6CAMAC/UNF10-32 cable 1.5 m
    978066.4CAMAC/UNF10-32 cable 3 m
    801729.7SIS190 1/2″ sound intensity probe USB
