Apollo Light

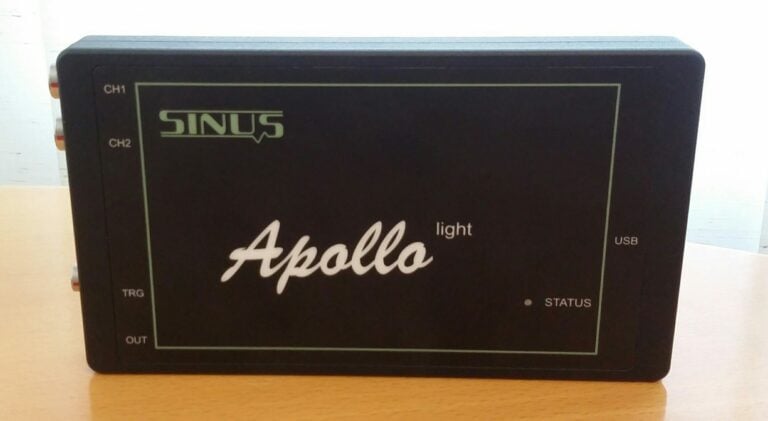

The Apollo Light is the light version of Sinus’ versatile Apollo black box. It is handy and robust with a USB interface.

The Apollo Light is compatible with Sinus’ established Apollo_box and Soundbook Analyser but without SLOW channels, SYNC port and AUX port. The reductions to the main functions allow them to reduce the size, weight. power consumption and price when compared to the standard Apollo unit.





Sinus Messtechnik

Interested

For more information on Apollo Light or to request a quote, contact our team now:

Request a QuoteContact us

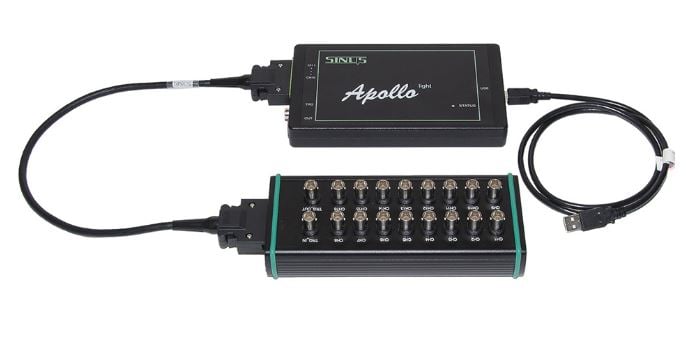

The low-cost Apollo Light hardware provides 2-16 measuring channels and additional trigger/tacho channels on the footprint of a USB hard drive. The measurement electronics is packaged in a robust, high-quality aluminium case. Ultra-low power consumption allows operation with a tablet PC. Multiple Apollo_light devices can be synchronised for sample-synchronous operation and allow an individually adjustable sample rate for each channel.

The Apollo Light is especially well suited for applications in:

  • Occupational safety and environmental protection
  • Engineering services
  • Quality assurance
  • Research and development

The measurements you can implement with their modular software packages, include:

  • Sound level measurements
  • Frequency analysis
  • Signal recording
  • Human vibration measurements
  • Measurements of ground-propagated vibration
  • Building and room acoustics
  • Machinery vibration measurements
  • Modal analysis
  • Order analysis
  • Structural analysis

Specifications

General technical specifications of main input channels
Apollo_lt_2B Apollo_lt_2L Apollo_lt_4B Apollo_lt_4L Apollo_lt_8C Apollo_lt_16
Input channels 2/4/8
Number of measuring channels



2 2 4 4 8 16
Female input connectors



BNC LEMO7 BNC LEMO7 LEMO-NIM-CAMAC MDR/18xBNC
Resolution



24-Bit 24-Bit 24-Bit 24-Bit 24-Bit 24-Bit
Real-time bandwidth



DC … 20 kHz DC … 20 kHz DC … 20 kHz DC … 20 kHz DC … 20 kHz DC … 20 kHz
Dynamic range



110 dB 110 dB 110 dB 110 dB 110 dB 110 dB
Noise



< 3 µV(A) < 3 µV(A) < 3 µV(A) < 3 µV(A) < 3 µV(A) < 3 µV(A)
Sample rates



200 Hz bis 51,2 kHz 200 Hz bis 51,2 kHz 200 Hz bis 51,2 kHz 200 Hz bis 51,2 kHz 200 Hz bis 51,2 kHz 200 Hz bis 51,2 kHz
Decimation



up to 200Hz sample rate
selectable per channel
up to 200Hz sample rate
selectable per channel
up to 200Hz sample rate
selectable per channel
up to 200Hz sample rate
selectable per channel
up to 200Hz sample rate
selectable per channel
up to 200Hz sample rate
selectable per channel
Max. input voltage



± 1 V // ± 10 V peak ± 1 V // ± 10 V peak ± 1 V // ± 10 V peak ± 1 V // ± 10 V peak ± 1 V // ± 10 V peak ± 1 V // ± 10 V peak
Gain



0 dB, 20 dB 0 dB, 20 dB 0 dB, 20 dB 0 dB, 20 dB 0 dB, 20 dB 0 dB, 20 dB
Over-voltage detection



yes yes yes yes yes yes
Phase shift



< 0.1° @ 20 Hz … 20 kHz < 0.1° @ 20 Hz … 20 kHz < 0.1° @ 20 Hz … 20 kHz < 0.1° @ 20 Hz … 20 kHz < 0.1° @ 20 Hz … 20 kHz < 0.1° @ 20 Hz … 20 kHz
Offset correction



yes, automatically
at auto-calibration
yes, automatically
at auto-calibration
yes, automatically
at auto-calibration
yes, automatically
at auto-calibration
yes, automatically
at auto-calibration
yes, automatically
at auto-calibration
Input coupling



DC, AC 0,15 Hz,
HP 10 Hz, LP 2 kHz
DC, AC 0,15 Hz,
HP 10 Hz, LP 2 kHz
DC, AC 0,15 Hz,
HP 10 Hz, LP 2 kHz
DC, AC 0,15 Hz,
HP 10 Hz, LP 2 kHz
DC, AC 0,15 Hz,
HP 10 Hz, LP 2 kHz
DC, AC 0,15 Hz,
HP 10 Hz, LP 2 kHz
Microphone voltage supply



± 14 V, + 20 / 63 /
200 V switchable
± 14 V, + 20 / 63 /
200 V switchable
IPC current supply



2 mA 2 mA 2 mA 2 mA 2 mA 2 mA
TEDS (IEEE 1451.4)



yes yes yes yes yes yes
General technical specifications of service channels / additional specification
Apollo_lt_2B Apollo_lt_2L Apollo_lt_4B Apollo_lt_4L Apollo_lt_8C Apollo_lt_16
Output channels 1-2
Resolution



24-bit 24-bit 24-bit 24-bit 24-bit 24-bit
Real-time bandwidth



DC … 20 kHz DC … 20 kHz DC … 20 kHz DC … 20 kHz DC … 20 kHz DC … 20 kHz
Max. output voltage



± 3,16 Vpeak ± 3,16 Vpeak ± 3,16 Vpeak ± 3,16 Vpeak ± 3,16 Vpeak ± 3,16 Vpeak
Connector



3.5 jack 3.5 jack 3.5 jack 3.5 jack 3.5 jack 3.5 jack
Trigger channels
Trigger



2x In: Trigger / tacho
trigger level adjustable
0.1Hz … 6MHz
2x Out
2x In: Trigger / tacho
trigger level adjustable
0.1Hz … 6MHz
2x Out
2x In: Trigger / tacho
trigger level adjustable
0.1Hz … 6MHz
2x Out
2x In: Trigger / tacho
trigger level adjustable
0.1Hz … 6MHz
2x Out
2x In: Trigger / tacho
trigger level adjustable
0.1Hz … 6MHz
2x Out
2x In: Trigger / tacho
trigger level adjustable
0.1Hz … 6MHz
2x Out
Dimensions and weights
Dimensions



180 x 105 x 22 mm 180 x 105 x 22 mm 180 x 105 x 22 mm 180 x 105 x 22 mm 180 x 105 x 22 mm 180 x 105 x 22 mm
Weight



700 g 700 g 700 g 700 g 700 g 700 g
USB-Power consumption



350 mA 350 mA 400 mA 400 mA 500 mA 700 mA
Environmental conditions
Operating temperature range



-10 °C … +50 °C -10 °C … +50 °C -10 °C … +50 °C -10 °C … +50 °C -10 °C … +50 °C -10 °C … +50 °C
Order details (Apollo_light accessories))
ORDER NO. DESCRIPTION
908185.7 Apollo_TACHO CABLE
908186.5 Apollo_TRIGGER SPLITTER BOX
971010.4 LEMO7 / BNC ADAPTER

Apollo Light datasheet
