Soundbook MK2

Soundbook_MK2 is the second generation of Sinus’ universal measurement system for sound and vibration measurements as well as general engineering measurements. It is based on the innovative Apollo platform. The high-performance 24-bit ADCs and the advanced Apollo filter processor combine highest precision, a large number of channels and a high signal bandwidth in one device. Of course, the robust Panasonic Toughbook CF-19 serves as base equipment for the Soundbook_MK2 again.

Sinus Messtechnik

Interested

For more information on Soundbook MK2 or to request a quote, contact our team now:

Request a QuoteContact us

The universal multi-channel acoustic and vibration measuring system has the PTB type approval 21.21 / 13.05 and is therefore the only PC-based analyzer that can be verified.

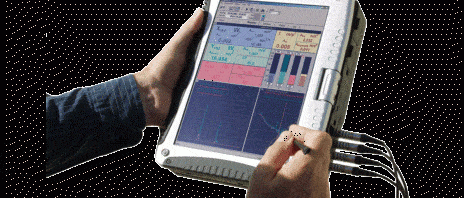

Soundbook allows you to work virtually everywhere, at the office as well as on the go. Soundbook reliably withstands heat, cold, rain, dust, vibration and hard impacts. With a weight of 3 kilograms, a robust magnesium case, a rotatable, bright TFT display, low power consumption and various interfaces Soundbook combines the performance of a high-quality instrument with the capabilities of a PC. You may choose from variants with 2 / 4 or 8 measuring channels with LEMO7 or BNC input connectors to match you application requirements.

Soundbook is especially suited for:

  • Occupational safety and environmental protection
  • Engineering services
  • Quality assurance
  • Research and development
  • Sound level measurements
  • Frequency analysis
  • Signal recording
  • Human vibration measurements
  • Pass-by noise measurements
  • Building acoustics
  • Machinery vibration measurements
  • Modal analysis
  • Order analysis
  • Structural analysis

Integrated PC

Device basis: Panasonic Toughbook CF-19 (see also Toughbook websitefor further details)
FinishIP54 magnesium case
ProcessorIntelTM Core i5 2.6GHz
RAM4GB

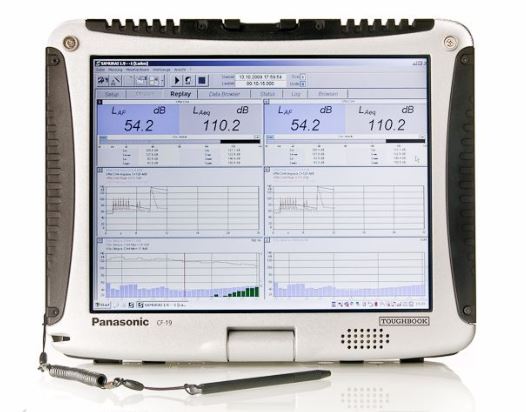

DisplayBright 10.4″ TFT 1024 x 768 with touchscreen, ambient light sensor (up to 500cd/m² transmissive and 6.500cd/m² reflective brightness, depending on light conditions)
Storage medium500GB HD with heating / shock absorber or SSD

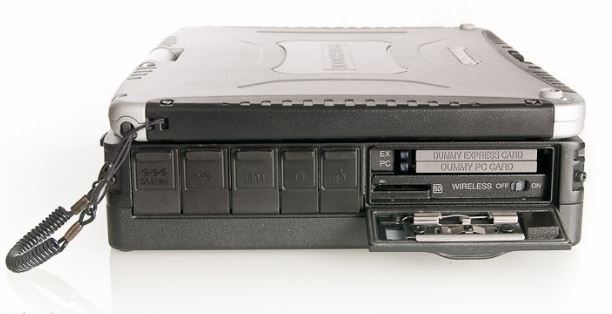

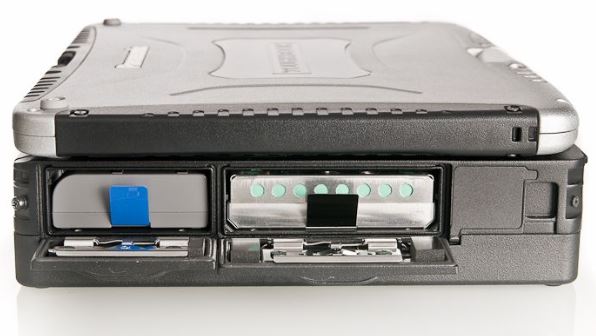

Interface1x USB 2.0, 1x USB 3.0, LAN, WLAN, modem RJ-11, PC card Typ II, VGA, Bluetooth, SD card, Firewire, ExpressCard 34/54, SD/SDXC
Operating systemWindows 7, multiple languages

Specifications

General technical specifications of Soundbook_MK2
Input channels 1-2/4/8
Resolution24 bit
Real-time bandwidthDC … 40kHz @ 8 channels (80kHz optional)
Dynamic range120dB
Noise< 1μV(A), < 2μV(Z) @ 0.1Hz … 40 kHz
Sample rates200Hz to 204.8kHz
Decimationup to 200Hz sample rate, selectable per channel
Anti-aliasing filteryes
Max. input voltage±10Vpeak @ head room of 1dB
Gain0dB, 20dB
Over-voltage detectionyes
Phase shift< 0.1° @ 20Hz … 20 kHz
Offset correctionyes, automatically at internal calibration
Imput couplingDC, AC 0.15Hz, HP 1Hz, HP 10Hz, TP 2kHz
Microphone voltage supply±14V, +20/63/200V switchable (for BNC versions on AUX)
ICP supply2/4mA switchable
Cable error detectionyes, for ICP sensors
TEDS according to IEEE 1451.4yes
AUX channels
Digital input2x TTL
Digital output2x TTL
Sensor supply±14V, +20/63/200V switchable
Auxiliary channels 1-8
Resolution24 bit
Real-time bandwidthDC … 200Hz @ 8 channels
Input voltage-25V … +25 V
Output channels 1-2
Resolution24 bit
BandwidthDC … 20/40/80kHz
Max. output voltage±3.16Vpeak
Special channels
Trigger2x trigger / tacho, trigger level adjustable 0.1Hz … 6 MHz
SynchronisationSample-accurate synchronisation with external clock (e.g. GPS 1Hz)
Dimensions and weight
Dimensions280mm x 220mm x 65mm
Weight3100g
BatteryLithium-ion battery, 4 h measurement capacity
External power supply100 … 240VAC or 10 … 36VDC with adapters
Environmental conditions
Protection classIP54 / IP50 without with Lemo7 protecting caps
Shock resistancecomplies with MIL-STD 810F
Humidity30% … 90%
Temperature range-10°C … +50°C
Storage conditions-20°C … +60°C, 95% humidity maximum
EMC
Emissionscomplies with EN50081-1
Immissionscomplies with EN50082-1
