AudioConnect

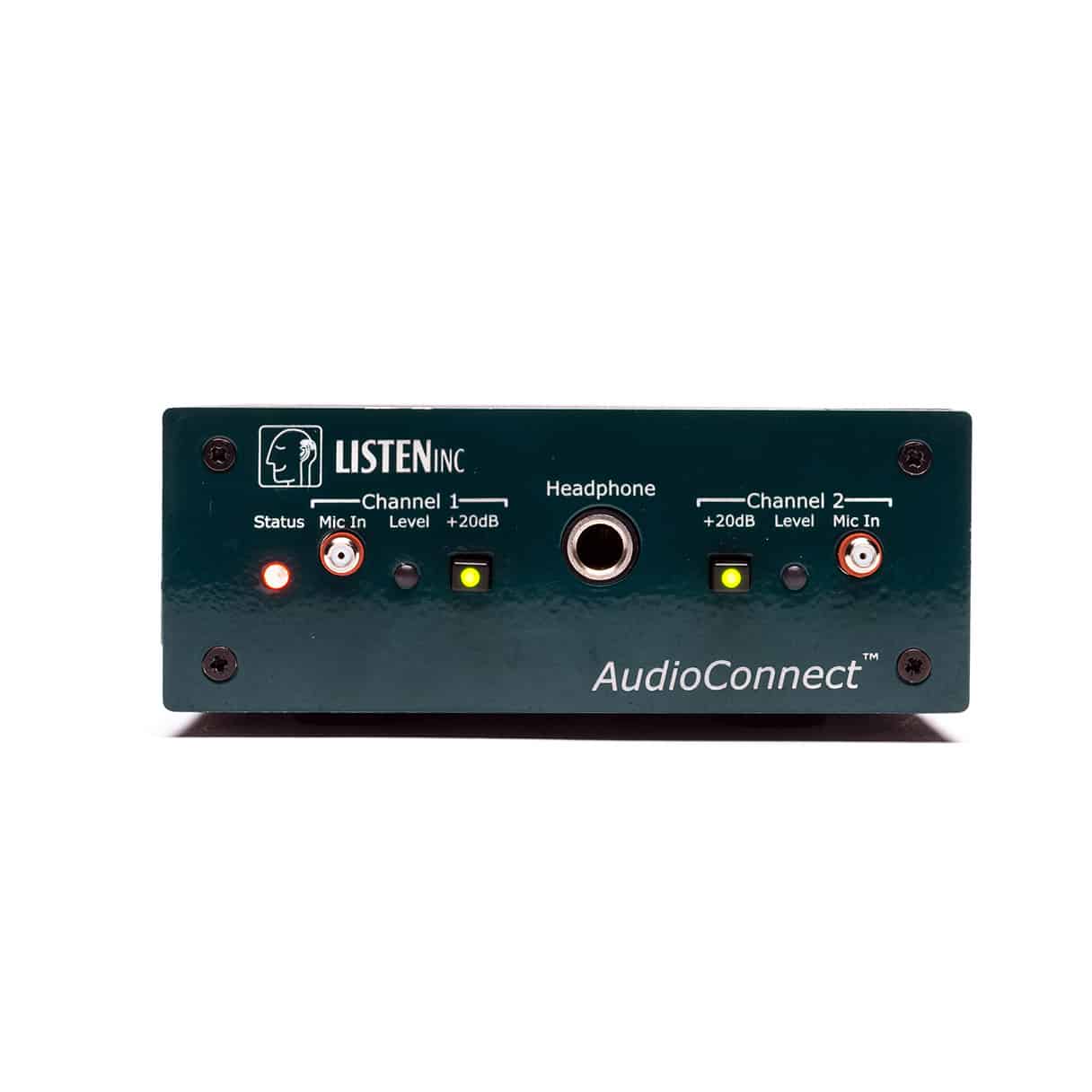

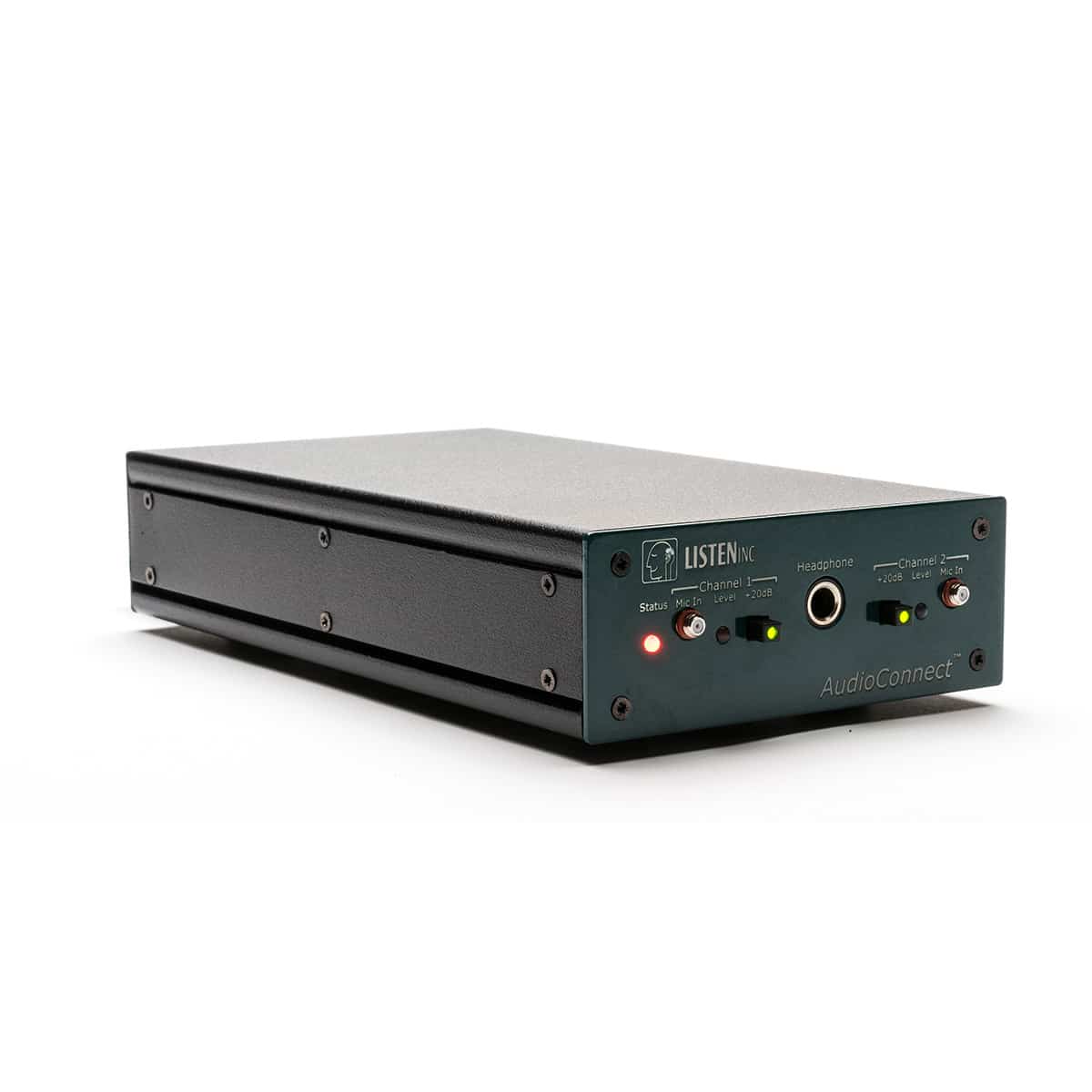

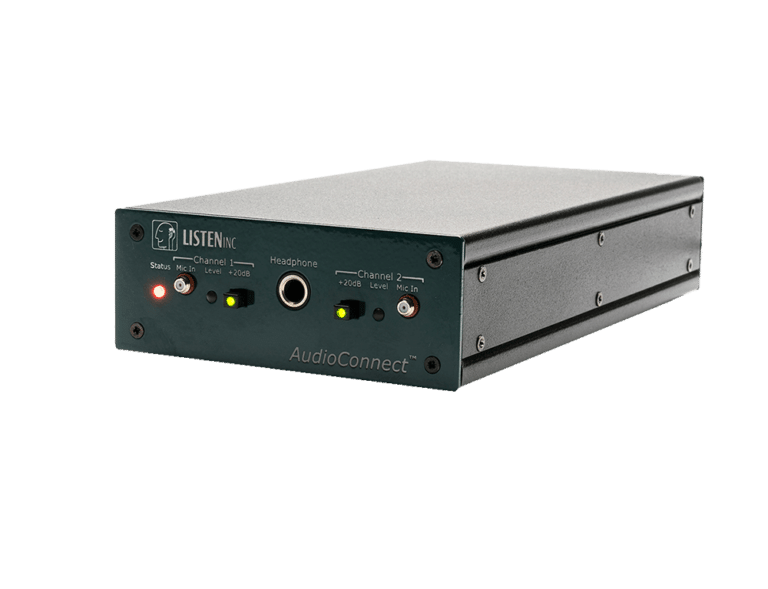

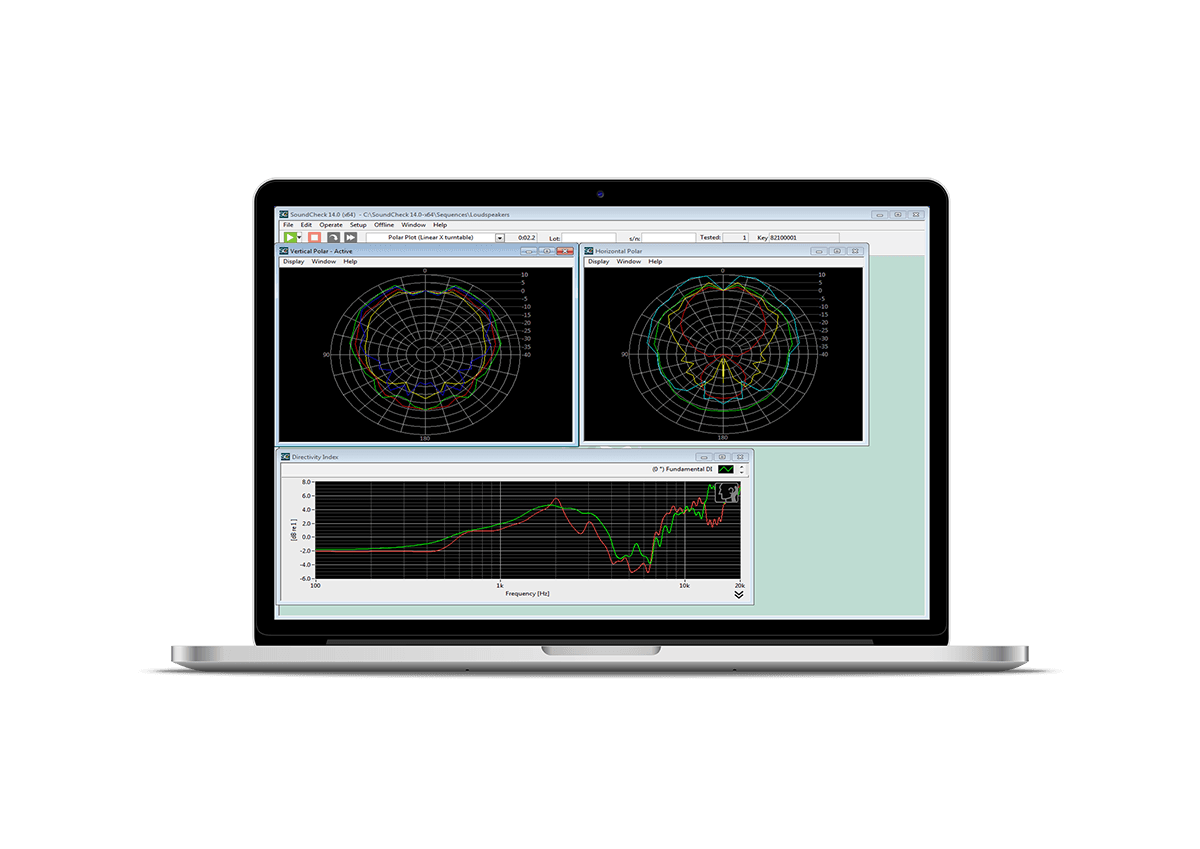

AudioConnect is a 2-in, 2-out audio interface specifically designed for audio test and measurement. It offers analogue audio in and out with a 44.1kHz sampling rate, USB control, and a power indicator; all other typical audio interface controls that are not used for audio test applications have been eliminated. This makes operation and calibration simple with no room for error.

Interested

For more information on AudioConnect or to request a quote, contact our team now:

Overview
Specification
Download

AudioConnect is packed with additional features to simplify your audio test set up, including power for Listen’s SCM microphones with 0dB/20dB gain, and a headphone amplifier. An integral USB hub offers a logical place to keep the SoundCheck hardware key. AudioConnect is supplied fully calibrated.

Features

  • High quality professional audio interface
  • Analog audio in and out
  • USB Control (SoundCheck® 14 and later)
  • All other settings (e.g. mixer) eliminated for ease of use
  • Compact, rugged and rack-mountable
  • Excellent value

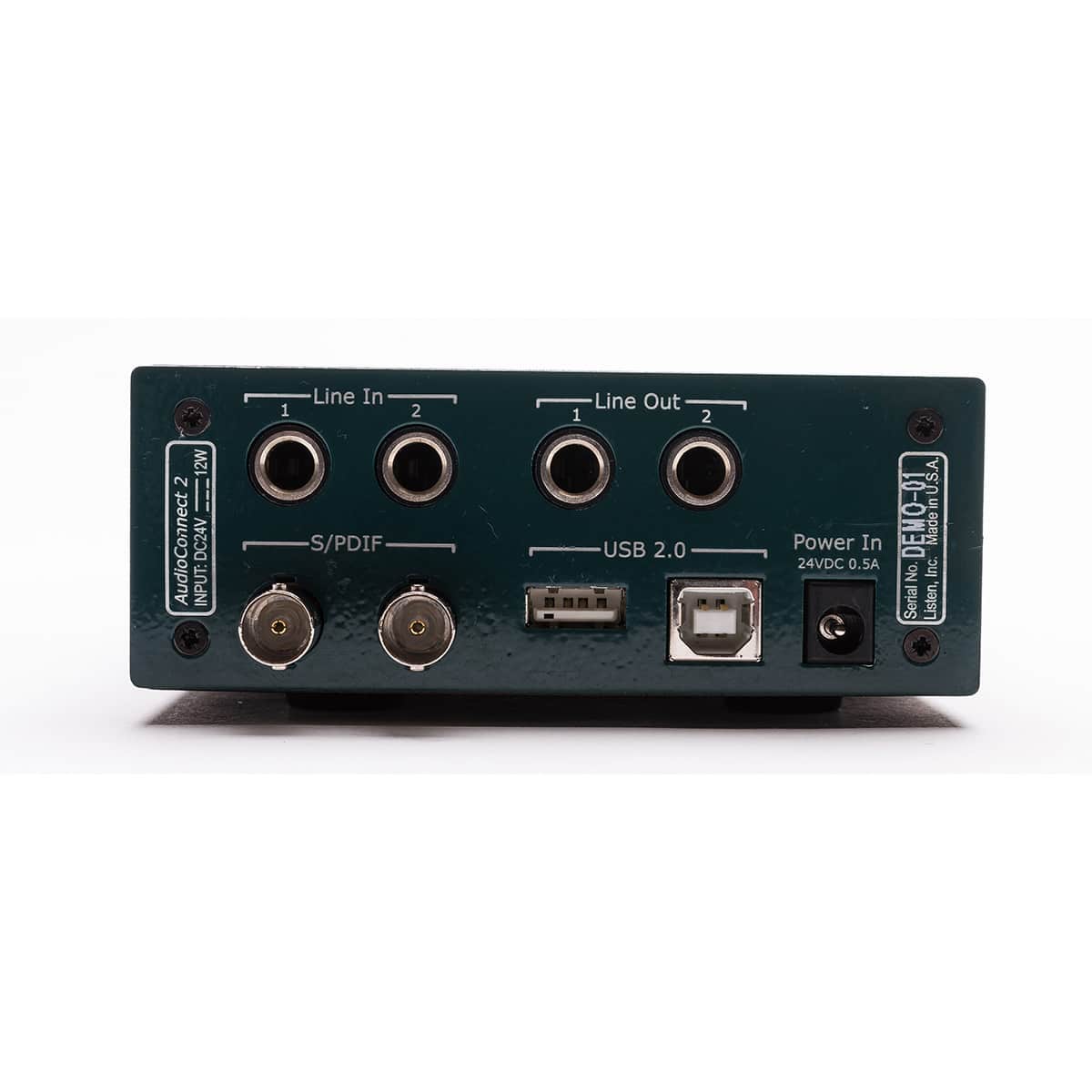

Analog I/O

Number: 2 inputs, 2 outputs
Type: Balanced or unbalanced
Level: 11.4Vp In / 4.4Vp Out
Input Impedance: Balanced: 88kΩ; Unbalanced: 44kΩ
Output Impedance: Balanced: 200kΩ; Unbalanced: 100kΩ A/D and D/A Type: 16 and 24 bit
Analog I/O port connections: ¼” TRS

Analog In Performance

Frequency Response: 20 – 20 kHz ± 0.25 dB
Dynamic Range: 110 dB
Channel Crosstalk: -110 dB, 1 kHz signal
THD / THD+N @ 1 kHz: 0.005% typical

Analog Out Performance

Frequency Response: 20 – 20 kHz ± 0.25 dB
Dynamic Range: 114 dB
Channel Crosstalk: -110 dB, 1 kHz signal
THD/THD+N @1 kHz: 0.005% typical

Additional Functionality

Microphone inputs: 2, microdot connector, SCM/Electret bias
Microphone input level: 5.2Vp
Microphone in THD+N @1kHz: 0.002% typical
Microphone Gain: Unity / 20dB
Headphone Power: max. 100mW into 20Ω
Headphone Output Impedance: < 1Ω USB Hub: Yes (1 internal and 1 external USB port) Physical
Dimensions 1.65″ H x 4.275″ W x 8.82″ D
Weight: 1.25lbs
Power: 24VDC; supplied with universal 100-240V 50-60Hz power adapter

Optional Accessories

Rackmount shelf with mounting points for ¼ rack width Connect series products. Part # 4901
