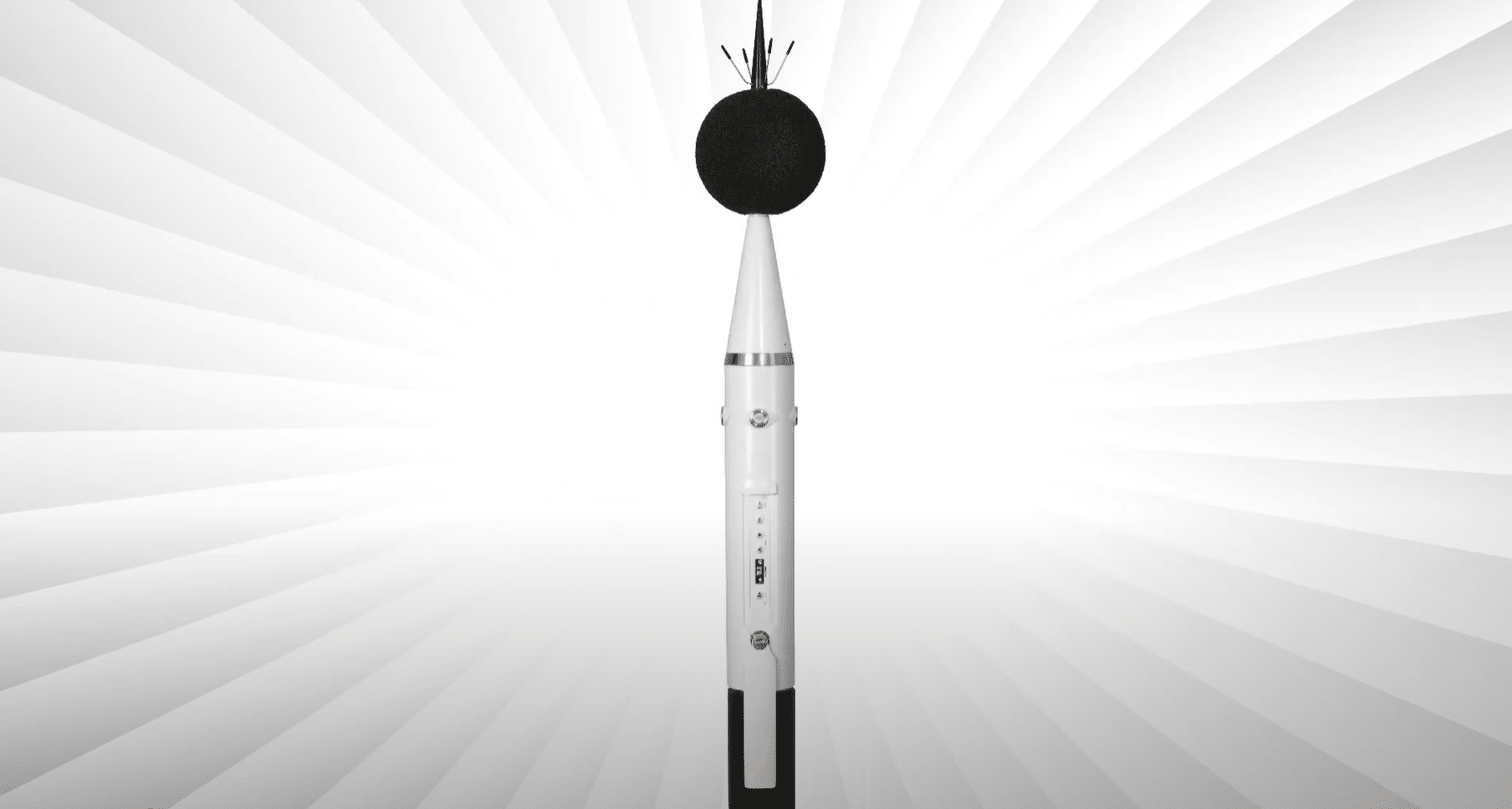

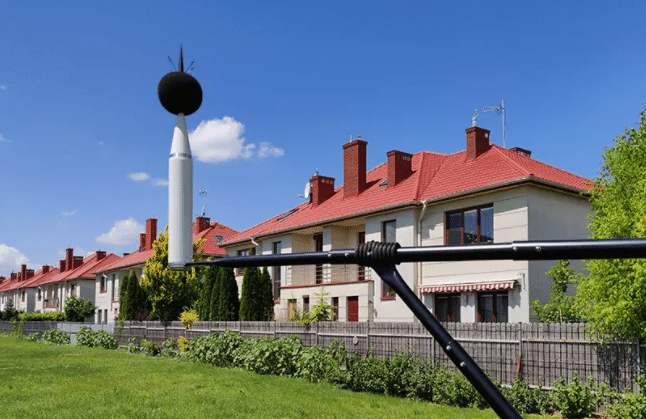

SV 200A Outdoor Noise Monitoring Station

SV 200A is the top-of-the range noise monitoring station with built-in microphones for noise directivity detection. This revolutionary solution enables identification of dominant noise sources providing information about their location both in vertical and horizontal directions. In practice, the measurement of directionality gives the opportunity to indicate the dominant source of noise in the area of measurement or to exclude unwanted events.



Svantek

Interested

For more information on SV 200A Outdoor Noise Monitoring Station or to request a quote, contact our team now:

Request a QuoteContact us

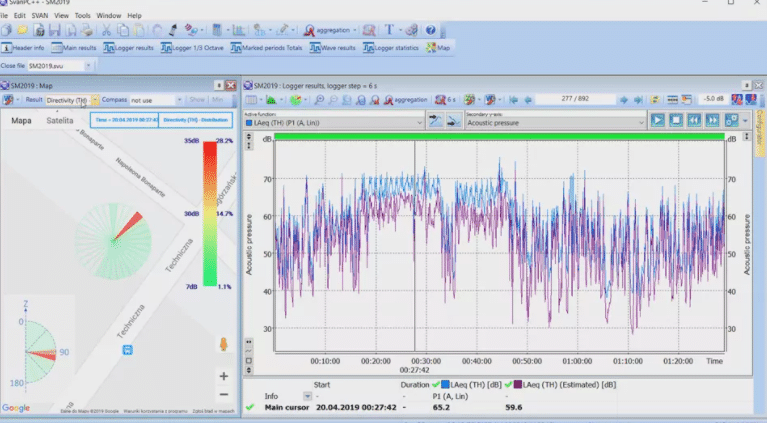

Four additional microphones located on sides of the housing of the SV 200A use the sound intensity technique to detect the direction of a dominant noise source both in the vertical and horizontal axes. The Leq distribution in angle sectors is saved as the time-history and can be used for data filtering and reporting.

Station can perform a real-time frequency analysis in 1/1 and 1/3 octave bands and save it as time-history data. Additionally it can record the audio signal for noise sources recognition and data recalculation.

The advanced alarms function can send e-mail and SMS notifications triggered by threshold level conditions combined with time conditions. Station’s status alarms are also available.

The 4G modem, WLAN and LAN provide fast data transfer over the Internet to PC with standard Internet connectivity. SvanNET enables a plug & play connection to Internet and easy management of measurement projects. Regardless of the SIM card type, Public or Private, SvanNET will establish connection, giving full access to the measurement data via web browser. The Bluetooh® and Wireless LAN provide access point for an easy configuration with the SvanNET Application.

Following ISO 1996-2 requirements, the SV 200A is using the electrostatic actuator to perform the periodic system check. Checking of the complete measurement chain including the microphone is the advantage of using electrostatic actuator method.

The accurate GPS module provides information on the localisation as well as measurement time synchronisation.

The SV 200A Noise Monitor has been approved as a Class 1 Sound Level Meter by the German Physikalisch-Technische Bundesanstalt (PTB).

SV 200A Sound Level Meter Specification

StandardsClass 1: IEC 61672-1:2002 (BEV approval), Class 1: IEC 61260:2002
Number of Profiles3
Weighting FiltersA, C, Z
Time constantsSlow, Fast, Impulse
RMS DetectorDigital True RMS detector with Peak detection, resolution 0.1 dB
MicrophoneMicrotech Gefell MK 255, 50 mV/Pa, prepolarised 1/2” condenser microphone
PreamplifierIntegrated
Linear Operating Range25 dBA RMS ÷ 133 dBA Peak (in accordance to IEC 61672)
Total Dynamic Measurement Range15 dBA RMS ÷ 133 dBA Peak (typical from noise floor to the maximum level)
Internal Noise Levelless than 15 dBA RMS
Dynamic Range>115 dB
Frequency Range3.5 Hz ÷ 20 kHz
Meter Mode ResultsElapsed time, Lxy (SPL), Lxeq (LEQ), Lxpeak (PEAK), Lxymax (MAX), Lxymin (MIN),

Lxye (SEL), LN (LEQ STATISTICS), Lden, LEPd, Ltm3, Ltm5

Simultaneous measurement in three profiles with independent set of filters (x) and detectors (y)

StatisticsLn (L1-L99), complete histogram in meter mode

Ln (L1-L99) statistics in 1/1 or 1/3 octaves

Data Loggerlogging of summary results with step from 1 s

logging of time history with step from 20 ms

Audio Recording (option)Audio events recording during measurement, trigger or continuous mode, 12 / 24 / 48 kHz sampling rate, 16 or 24 bit, wav format

Sound Analyser

1/1 Octave AnalysisReal-time analysis meeting Class 1 requirements of IEC 61260, centre frequencies from 31.5 Hz to 16 kHz
1/3 Octave AnalysisReal-time analysis meeting Class 1 requirements of IEC 61260, centre frequencies from 20 Hz to 20 kHz

General information

Ingress Protection RatingIP 65
InputsPower supply LEMO 3-pin, extended I/O port LEMO 9-pin
Remote CalibrationBuilt-in electrostatic actuator, triggered manually or in automated mode
Memory16 GB

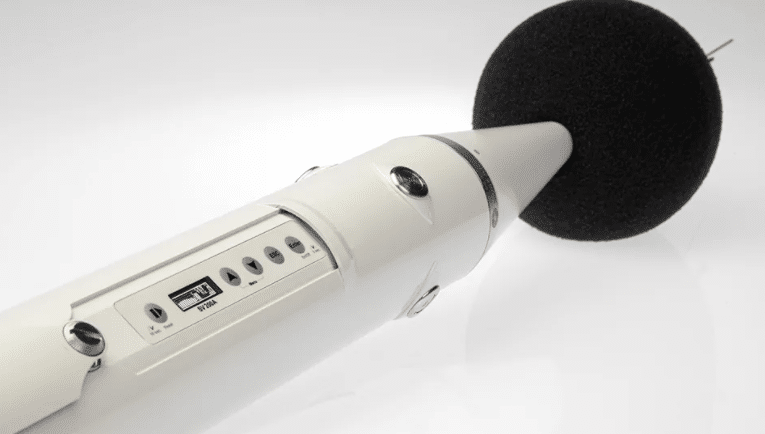

Display & Keyboard1.1” OLED colour display, 5 push-buttons
Communication InterfacesUSB, RS 232, UART (TTL), LAN, Bluetooth®, 3G modem, WLAN
 Power supplyLi-Ion rechargeable battery (non-removable)
Solar Panel (not included)
SB274 AC power supply (included) Input 100 ÷ 240 VAC, output +15 VDC 2.67 A, IP 67 housing
External DC source (not included) – voltage range 10.5 V – 24 V
Environmental ConditionsTemperature from -30 oC* to 70 oC

*Only with external powering otherwise -10oC to 50 oC

Humidity up to 99% RH, non-condensed
Dimensions840 mm length; 70 mm diameter excluding windscreen; windscreen diameter 130 mm
Weight Approx.3.2 kg

*Continuous product development and innovation are the policy of our company. Therefore, we reserve the right to change the specifications without prior notice.
