Renewable Energy Systems

Designed for operation in almost all sunlight conditions in the UK, AcSoft Renew system components have been carefully selected to create pro-level autonomous solutions for delivery of uninterrupted, reliable power to AcSoft’s noise, vibration and air quality monitoring systems.

Interested

For more information on Renewable Energy Systems or to request a quote, contact our team now:

request a quote contact us

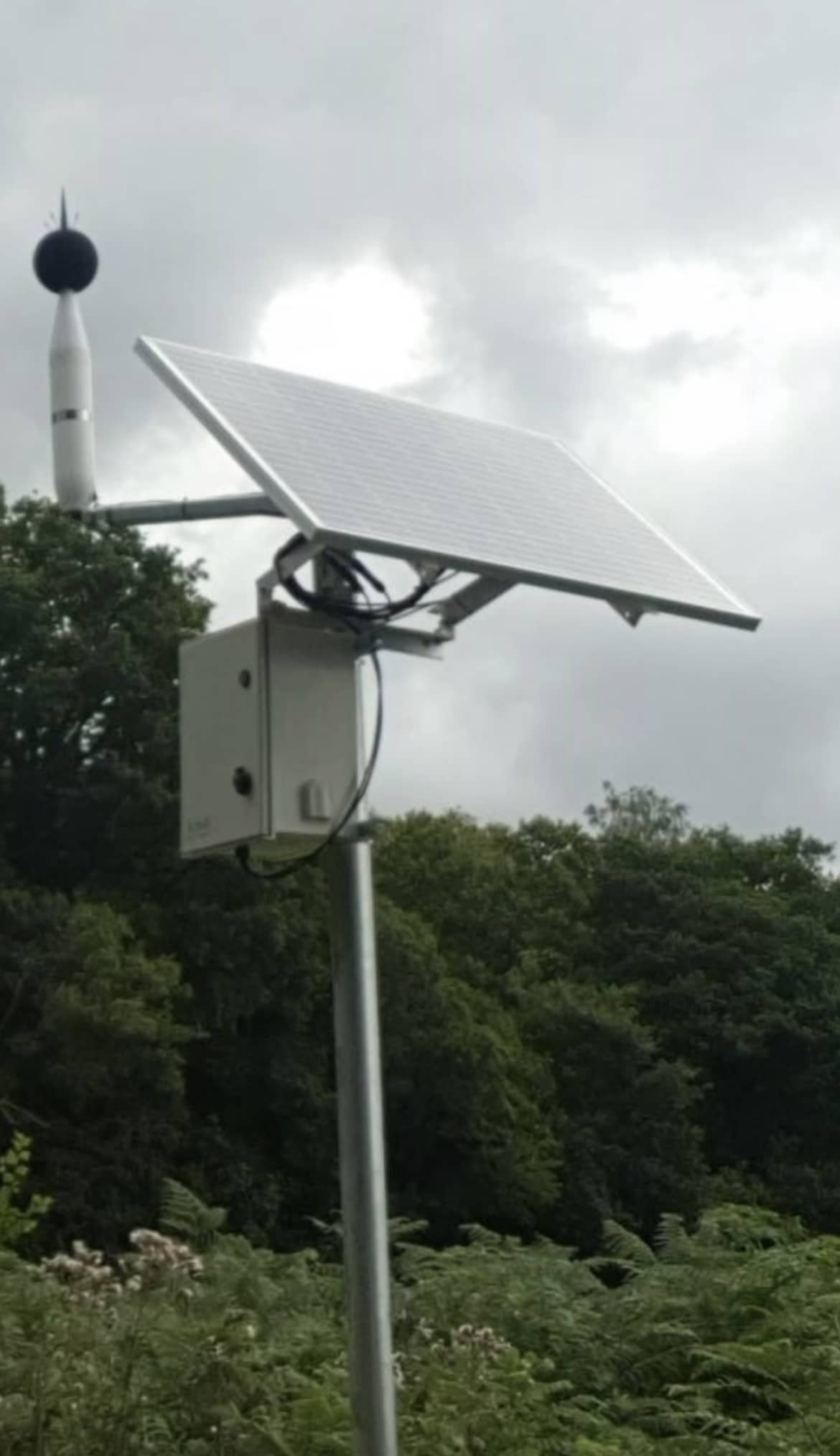

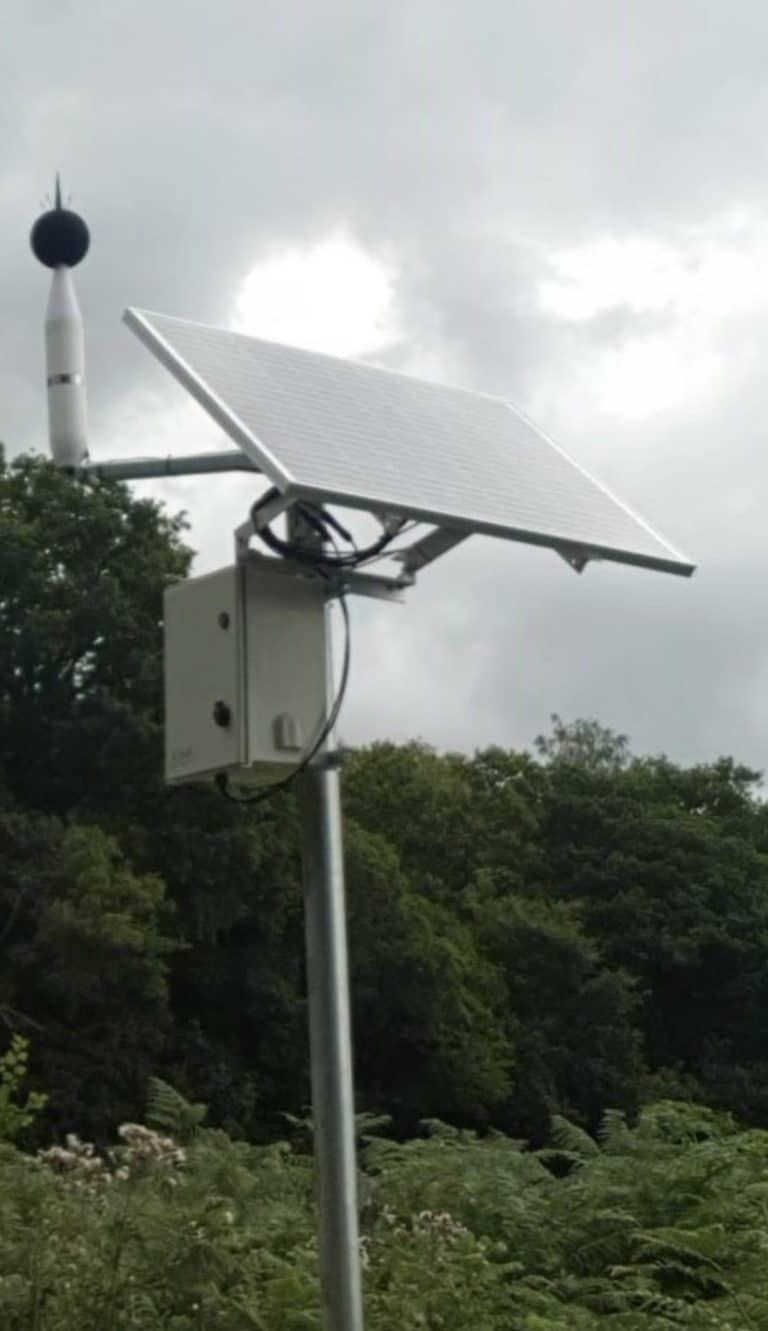

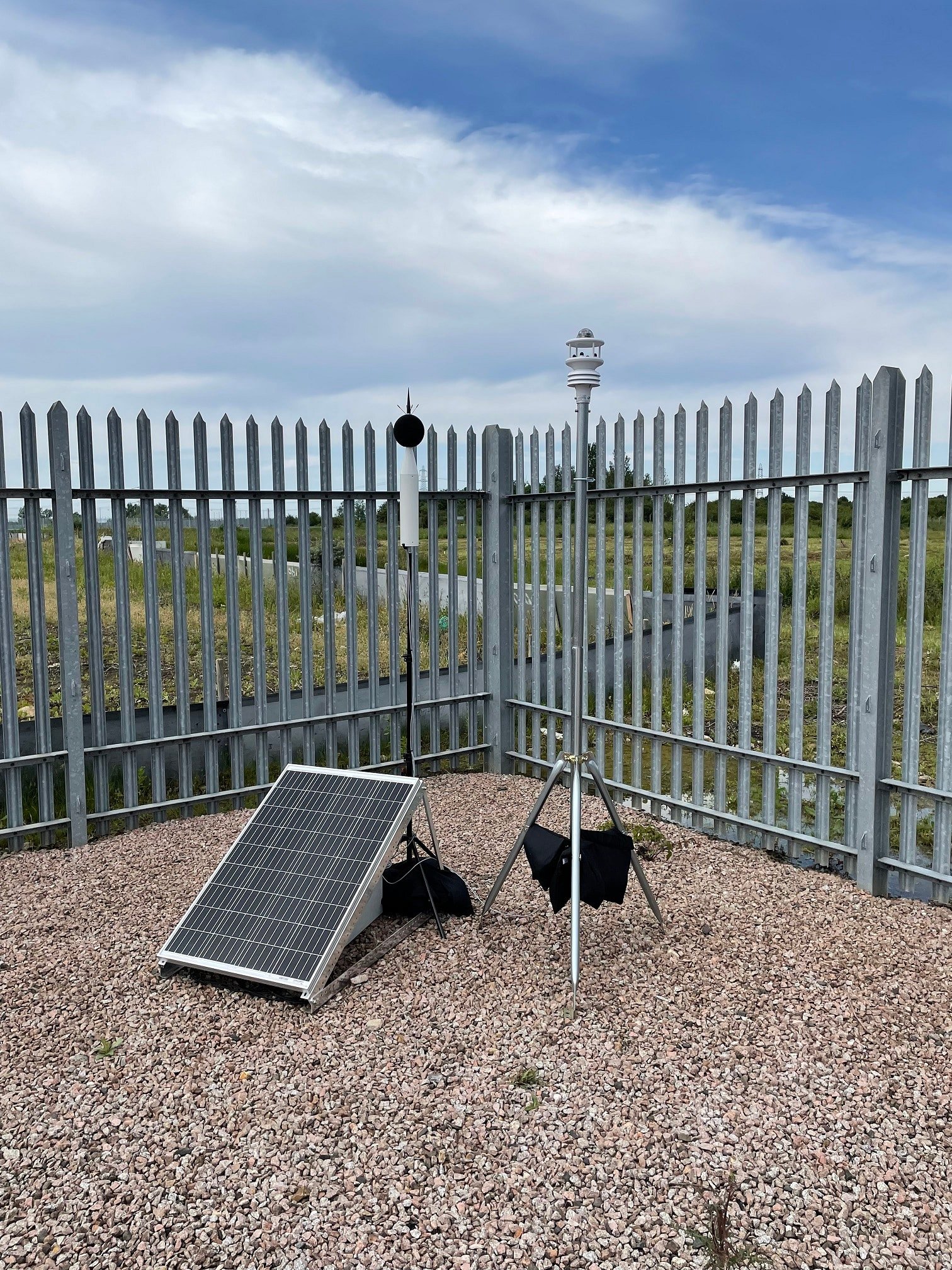

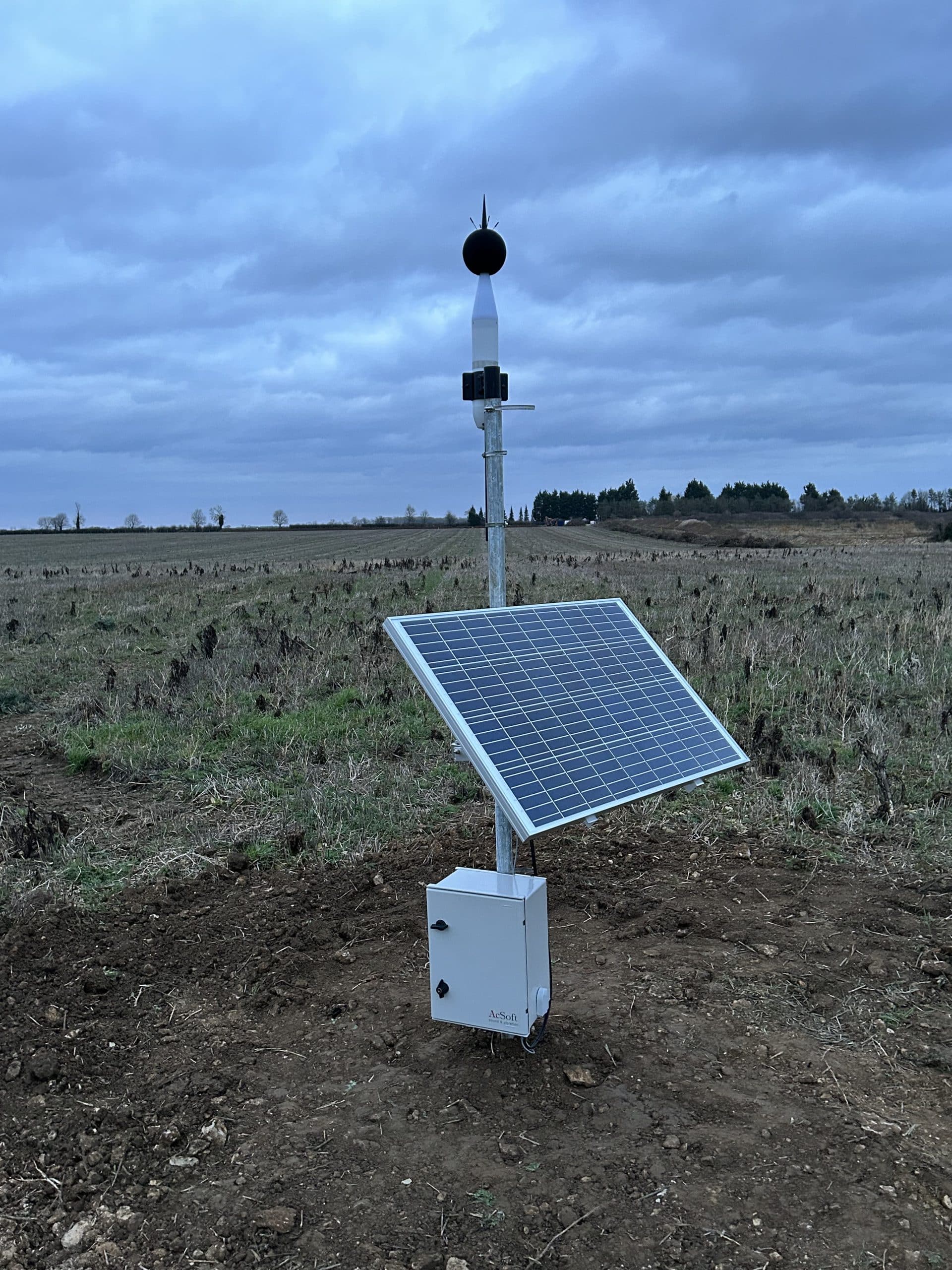

Renew 1

The Renew 1 from AcSoft is a solar solution using a 115W solar panel together with a 12V lead acid battery. Charging and power delivery is controlled by the industry standard charge controller. The Renew 1 system is designed for running systems requiring lower power such as the SV 307A noise monitoring station or the Airly air quality monitoring unit, under typical weather conditions.

The Renew 1 is our best selling solar powering system offering customisation for either ground or pole mounting depending on your requirement.

The Renew 1 now uses an enclosure that is 50% smaller than its predecessor, with a strap inside the enclosure to ensure the battery is held firmly in place.

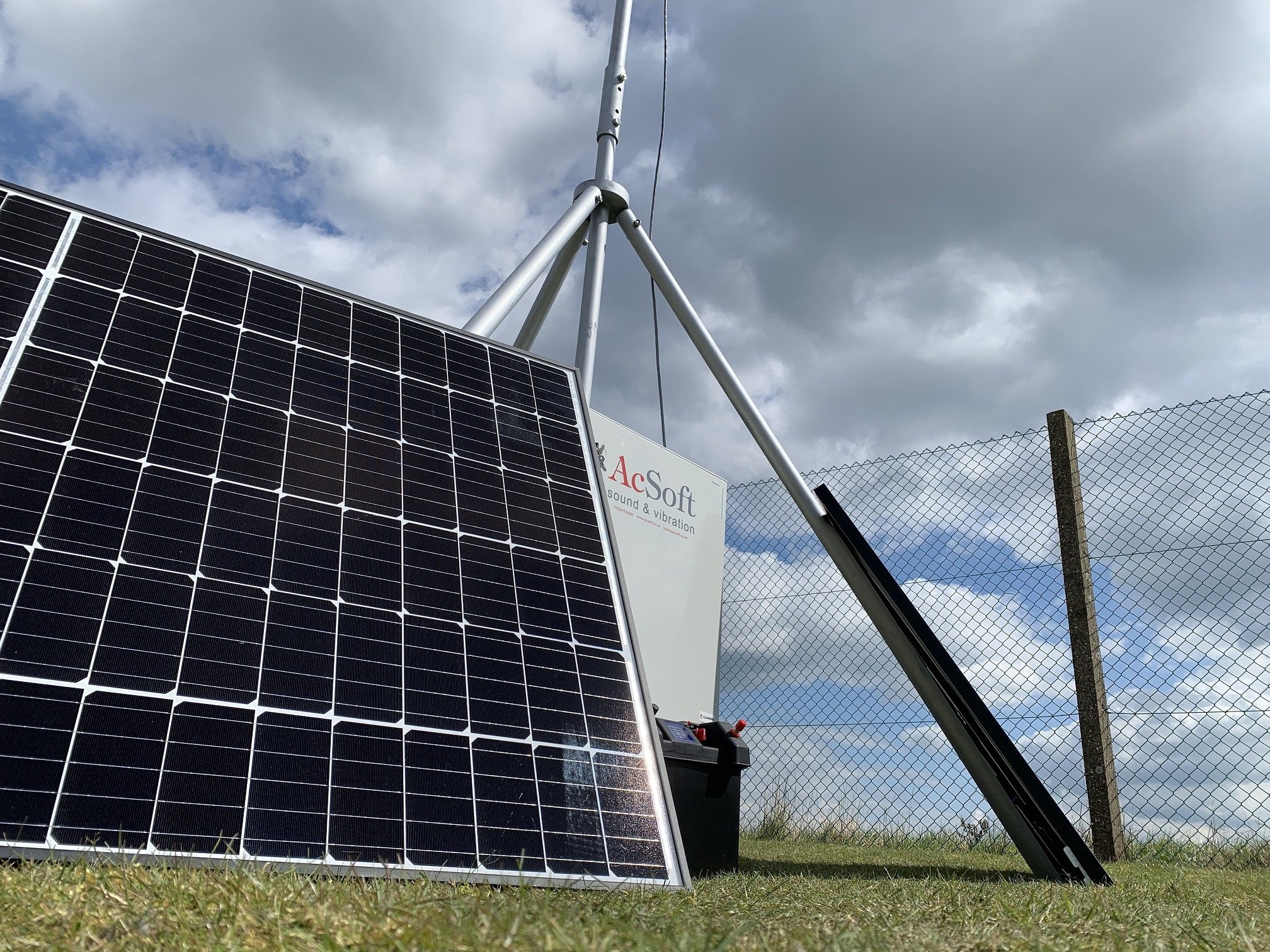

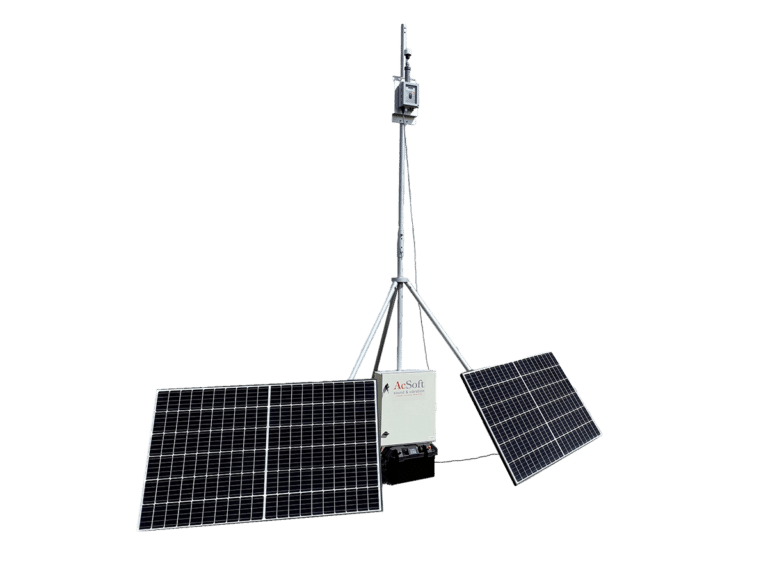

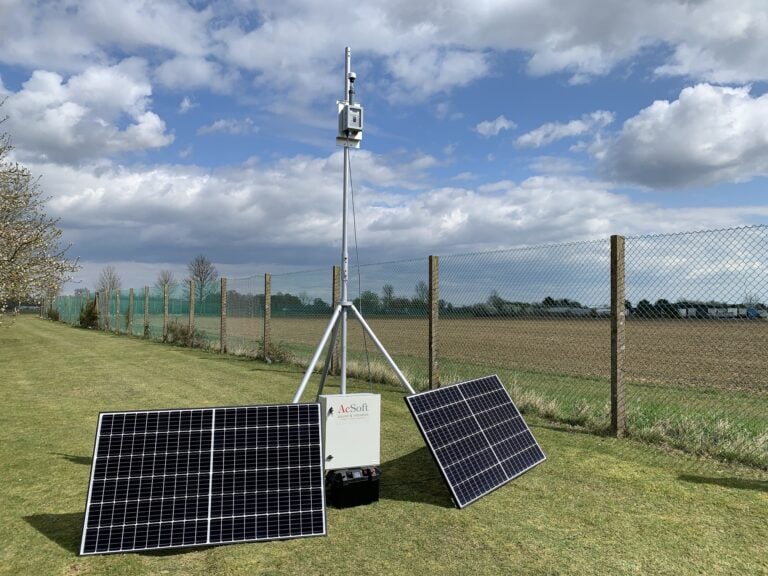

Renew 2

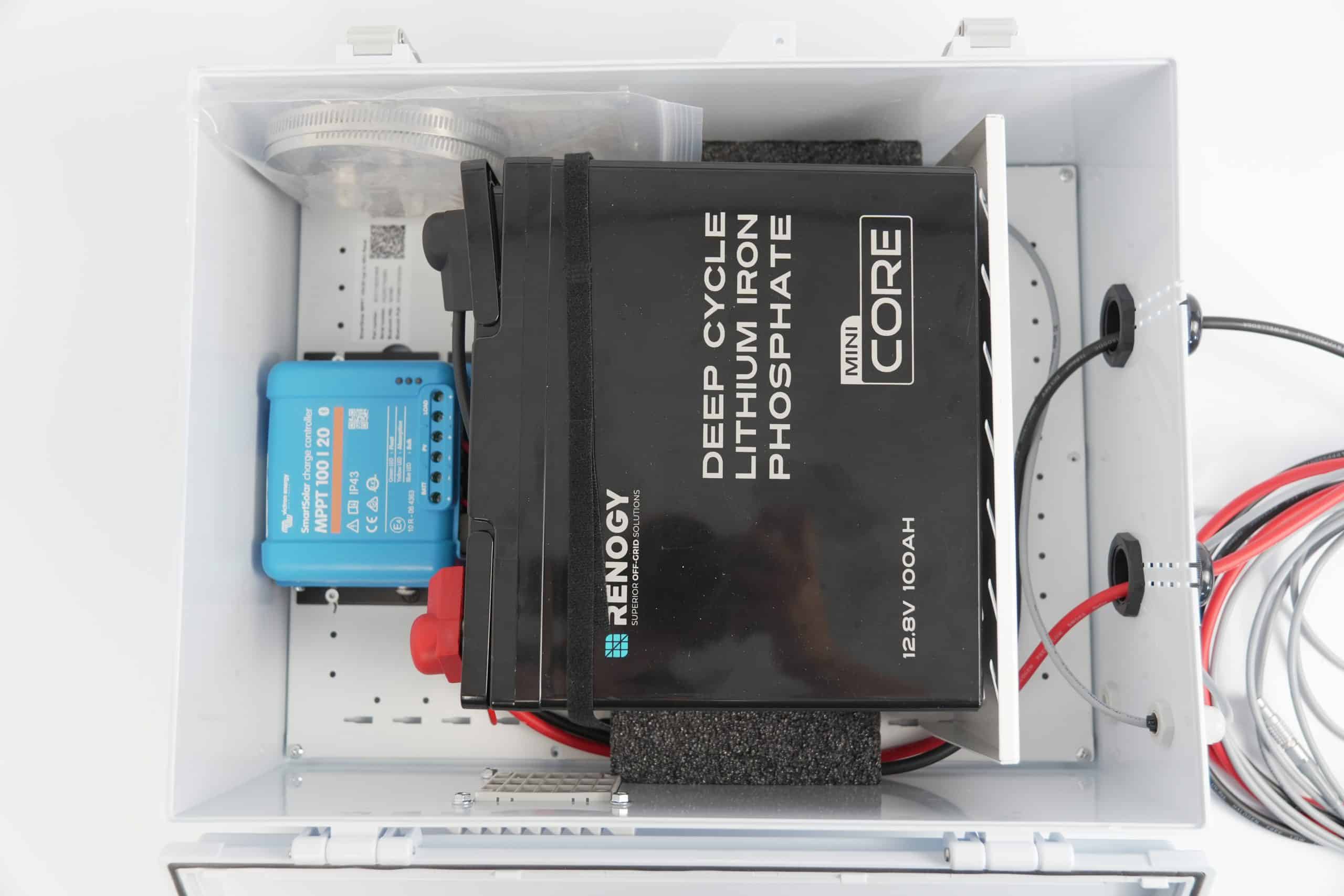

The new AcSoft Renew 2 enhances the capabilities of the Renew 1 with extra solar panels and a larger 1280 Wh battery. The charge controller and deep cycle LiFePO4 battery are housed in a pole mountable weatherproof enclosure which can be padlocked for extra security.

Featuring 3x 100W solar panels which provide additional surface area for maintenance charging of the battery, the new Renew 2 allows multiple instruments to be connected to an off-grid source for longer term monitoring.

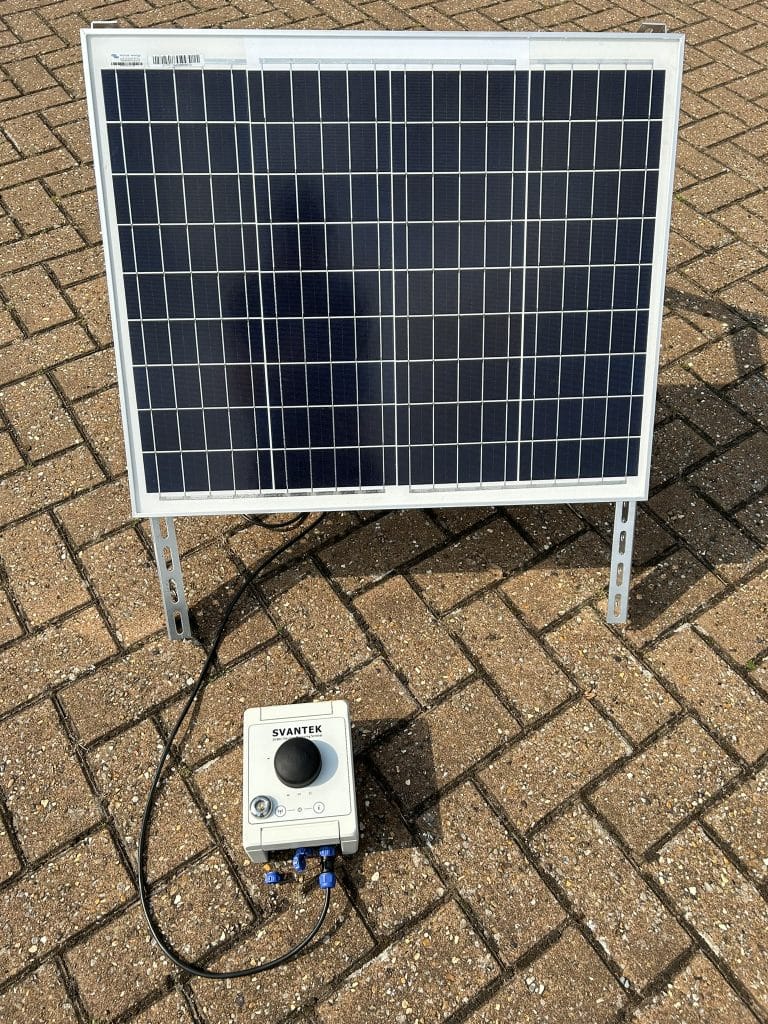

Renew 803

The renew 803 is a simple set up. Using a 60w solar panel that connects directly to the SV 803. The cable offers up to 2m between the SV 803 and solar panel. We also offer a pole mounting option available on request and depending on where deployment is taking place.

Renew 1 System Includes:

1 x Solar panel 115W Polycrystalline 1015mm x 668mm
Pole mount kit for Panel, for 48mm or 78mm pole
Battery, deep cycle 12V led acid
Battery is larger for systems that are ground mounted
Pole mounting including jubilee clips and pole bracket can be provided if requested. We recommend it only be mounted to scaffolding poles
Ground mounted, the system comes with feet to keep it off the ground

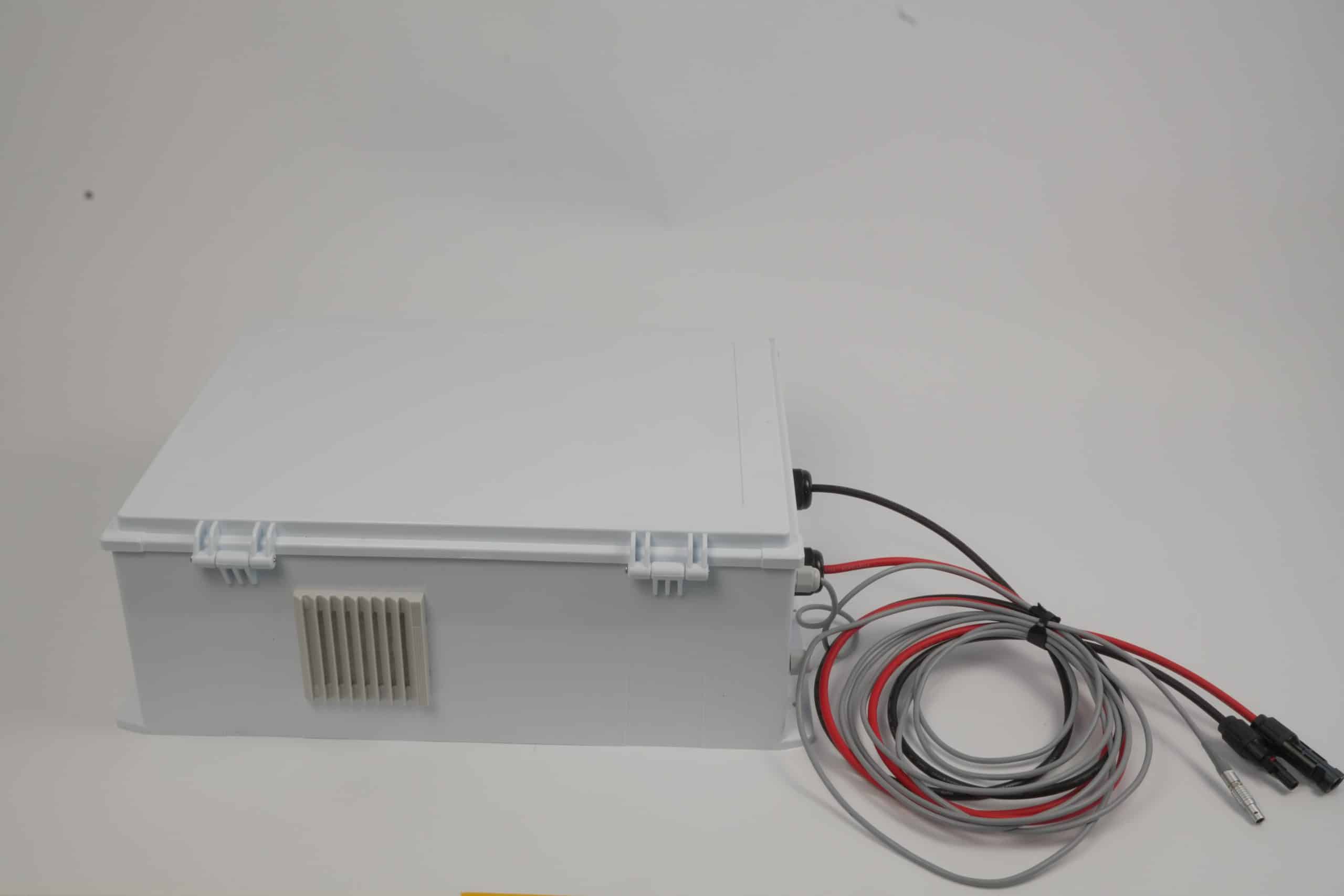

We have added a ventilation device which prevents moisture from gathering in the enclosure
Security provided via barrel lock

Renew 2 System Includes:

3 x Solar panel 100W
Ground mounting brackets for panel supplied. Pole mount available on request
Deep cycle LiFePO4 battery, 1280 Wh
External battery
IP65 GRP enclosure 600mm x 400mm x 230 (houses the controller, battery and terminations)
Security provided via padlock
