DL 303 Dodecahedron Kit (Dodec)

The DL303 is a dodecahedral sound source, which provides omnidirectional excitation according to all the latest standards. The source can be driven from a sound level meter or an internal noise source that has been equalised for a flat response over the complete frequency range.


For more information on DL 303 Dodecahedron Kit (Dodec) or to request a quote, contact our team now:


Key Features:

• Amplifier Installed in the speaker
• Specification complying with International Standards ISO 16283/ISO 140/ISO 3382/ISO 354 DIN 52210/ASTM E2235/ ASTM E336/ASTM E90
• Measurement in room of the apparent sound insulation of dividing elements between rooms according to D.P.C.M. 05-12-1997
• Measurement of reverberation time using interrupted noise according to ISO 354
• Measurement of impulse response according to ISO 3382
• Omnidirectionality according to ISO 140
• Frequency response 50 to 20.000 Hz (equalised)
• LW max (not equalised) 122 dB
• Weight 9.5kg

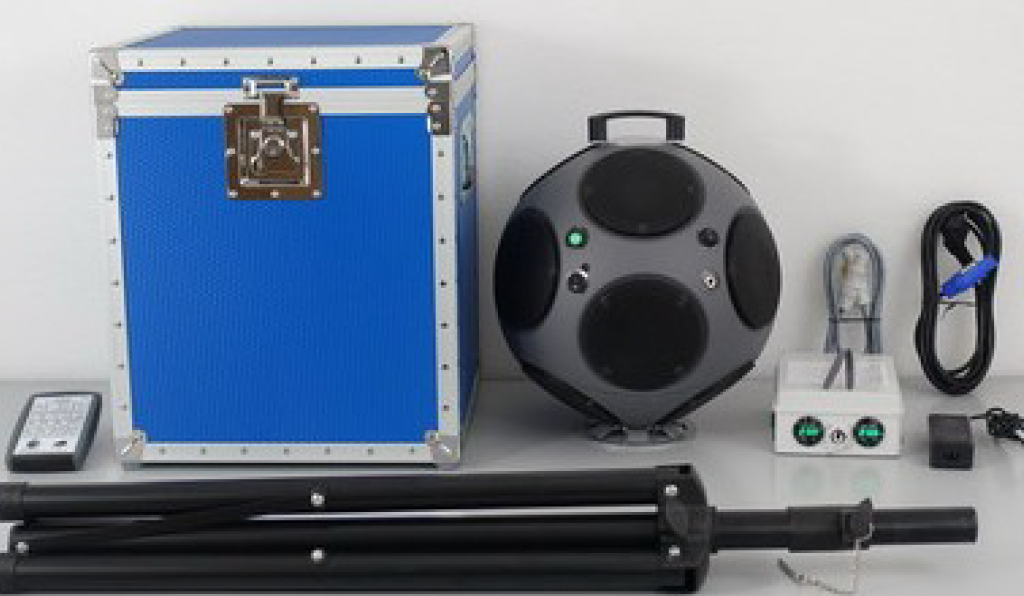

Kit Includes:

DL 303 Amplified Spherical Loudspeaker with base and carrying handle
FC  300 Flight case for dodecahedron with a pocket for remote control and cables
RC 303 Multi-function Remote Control

Connecting cables
TR 300 Aluminium Tripod
BP 300 Battery Pack AC current 230V, (under request AC115V)

SITMA Approved

Is your Dodec or Cabinet speaker meeting the tough SITMA standards for directivity and stability checks?  If not, then take a look at our Dodecs that will fly through the tests and come with a pre-test certificate – tested in our state-of-the-art Calibration facility.

Installed inside the Dodecahedron:

• 12 x 130 mm loudspeakers with neodymium magnets
• Class D amplifier 300 W RMS (600 watts peak); very low heat dissipation (94% efficiency)
• Generator with 2 x Pink Noise, 2 x White Noise, 2 x Swept sine
• Remote control receiver
• Intelligent battery charger
• Microcontroller to linearise and extend the frequency response from 50 Hz – 20 kHz
• Auxiliary input for an external generator


SL303AC.DC Active Spherical Loudspeaker
RC103 Multi-function Remote Control: wireless
TR300 Tripod: height 100/175
FC300 Flight case
LBP300 Battery
BC100 Battery charger Ac Cable
Dc Cable

Noise Generator:

* White noise: Pseudocasual
* Pinck noise: Pseudocasual
* Fast white noise: Alternative to the previous ( greater precision)
* Fast pinck noise: Alternative to the previous ( greater precision)
* Sine sweep: ( exponential ) 20 seconds 50- 20,000 Hz
*Impulsive noise: It reproduces a noise similar to a balloon bursting, a gunshot. or 2 wooden boards banging.


Download the datasheet DL 303 Dodecahedron Kit Datasheet
