DL 103 AC-DC Dodecahedron Kit (Dodec)

The DL103 dodec is a smaller version of the usual dodecahedral sound source, providing omnidirectional excitation according to all the latest standards. The source can be driven from a sound level meter or an internal noise source that has been equalised for a flat response over the complete frequency range.


Look Line


For more information on DL 103 AC-DC Dodecahedron Kit (Dodec) or to request a quote, contact our team now:

Request a QuoteContact us

Key Features:

• Internally Installed Speakers – 12 in total
• Specification complying with International Standards ISO 16283/ISO 140/ISO 3382/ISO 354 DIN 52210/ASTM E2235/ ASTM E336/ASTM E90
• Measurement in room of the apparent sound insulation of dividing elements between rooms according to D.P.C.M. 05-12-1997
• Measurement of reverberation time using interrupted noise according to ISO 354
• Measurement of impulse response according to ISO 3382
• Omnidirectionality according to ISO 140
• Battery and Mains Operated
• Remote control Included

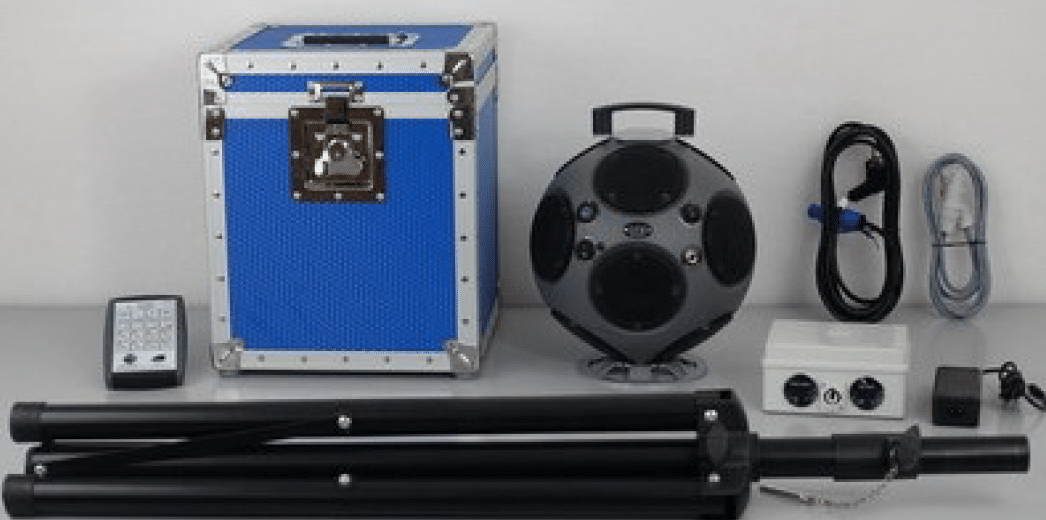

The Kit Includes:

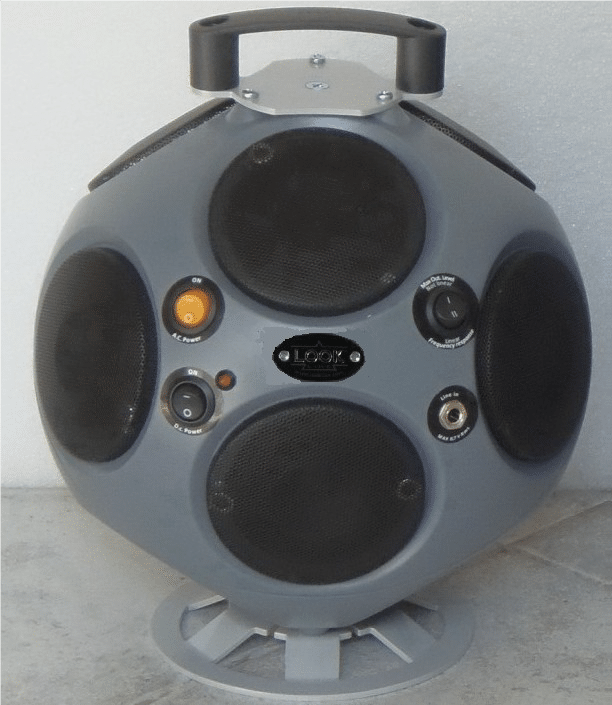

DL 103 AC DC Active Spherical Loudspeaker with base and carrying handle
RC103 Multi-function Rem. Control:
TR300 Tripod: height 100/175
FC100 Flight case
BPL100 Battery
BC100 Battery charger
Ac Cable
Dc Cable

Noise Generator:

* White noise: Pseudocasual
* Pinck noise: Pseudocasual
* Fast white noise: Alternative to the previous ( greater precision)
* Fast pinck noise: Alternative to the previous ( greater precision)
* Sine sweep: ( exponential ) 20 seconds 50- 20,000 Hz
*Impulsive noise: It reproduces a noise similar to a balloon Bursting, a gunshot. or 2 wooden boards banging.

Amplifier Power150 Watts RMS
Sound Power Output dB re:1pW118 db
Diameter 25cm
