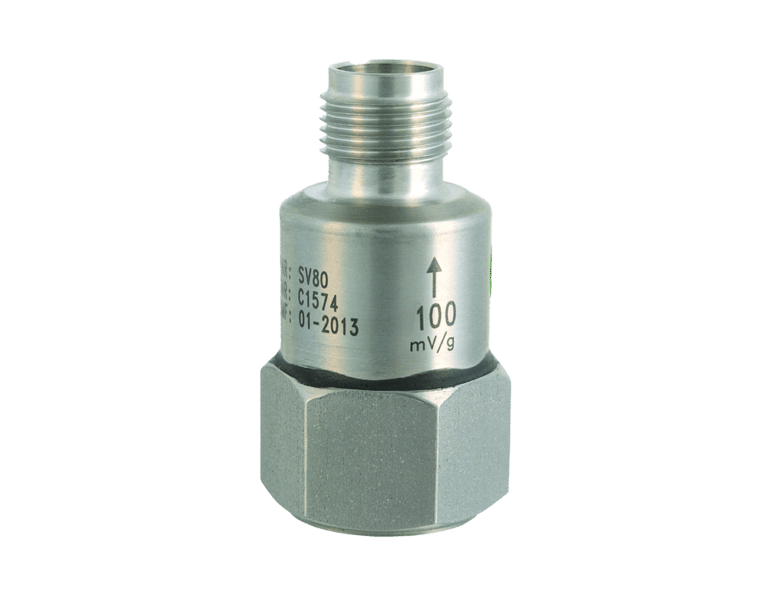

SV 80 General Purpose Accelerometer 100mV/g
The SV 80 accelerometer 100mV/g, TNC top, 10-32 mounting hole, is dedicated to machine vibration measurements with Svantek vibration level meters.
Interested
For more information on SV 80 General Purpose Accelerometer 100mV/g or to request a quote, contact our team now:
The vibration accelerometer is uniaxial, which means it measures vibration on one axis. The SV 80 is connected to SVANTEK vibration meters with a vibration measurement cable with a TNC connector. For machine vibration measurements, the sensor is typically attached to a vibrating surface with a mounting magnet.
The accelerometer 100mV/g is an ideal choice for walk-around vibration measurement in the rugged environments of industrial machinery monitoring, such as pumps, motors, etc.
The sensitivity of the SV 80 is 10 mV/(m/s2) 100 mV/g. The measurement range is from 0.01 m/s2 RMS to 500 m/s2 peak in the frequency range of 0.5 Hz to 14 000 Hz.
SV 80 General Purpose Accelerometer Specification
Performance: | |
| Number of axis | 1 |
| Sensitivity (± 5 %) | 10 mV/(ms-2) ~ 100 mV/g |
| Measurement range | 0.01 ms-2rmS ÷ 500 ms-2 Peak |
| Frequency response (by design guideline, ± 3 db) | 0.5 Hz ÷ 14 000 Hz |
| Linearity | ± 1 % |
| Residual noise (1 Hz, 24°C) | 30 μg rmS |
| Residual noise (1 Hz to 25 kHz, 24°C) | 300 μg rmS |
| Transverse response sensitivity (20 Hz, 50 m/s2) | < 5 % |
| Resonant frequency | 25 kHz |
Electrical: | |
| Electrical grounding | isolated from machine grounding |
| isolation (Case to Shield) | > 100 mΩ |
| Capacitance to ground (Nominal) | 70 pF |
| Supply current | 2 mA ÷ 10 mA |
| Supply voltage | 22 V ÷ 28 V |
| Bias voltage | +12 VdC |
| Output impedance (Nominal) | 50 Ω |
| Charge/discharge time constant (start-up time) | < 1 sec. typ. |
Environmental Conditions: | |
| Maximum vibration (shock survival) | 50 000 ms-2 Peak |
| Thermal sensitivity coefficient | 0.07 %/oC F.S. |
| Operating temperature range | from -55 °C to +120 °C |
| Operating temperature range (recommended) | from -10 °C to +50 °C |
| Humidity / Enclosure | iP67, epoxy sealed |
Physical: | |
| Connector | TNC socket, top radially mounted |
| Material housing & connector | Stainless steel |
| Mounting thread | 10-32 uNF 2b |
| Weight | 40 grams |
Accessories: | |
| Mounting stud 10-32 to m5 (included) | |
| SA 27/10-32 | Mounting magnet base (optional) |
| SC 27 | Coil cable TNC plug – TNC plug, 2 meters (optional) |
*Continuous product development and innovation are the policy of our company. Therefore, we reserve the right to change the specifications without prior notice.
