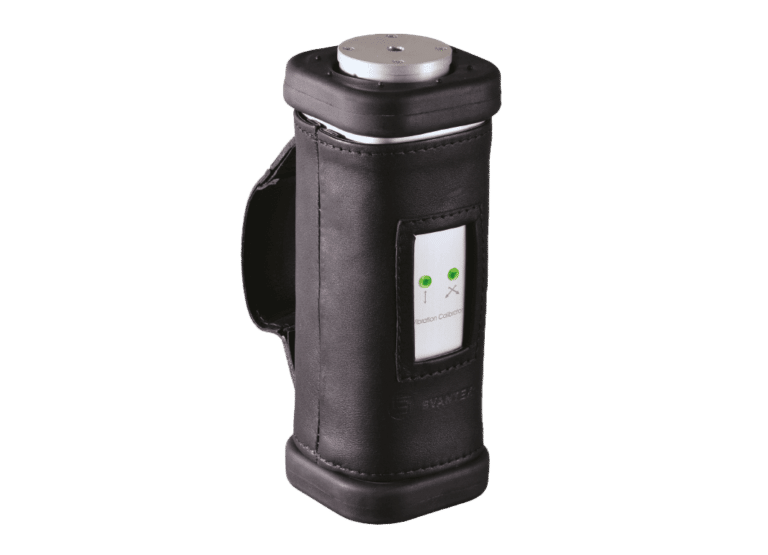

SV 110 Vibration Calibrator

The SV 110 is a hand-held vibration calibrator designed for verification of machine sensors as well as on-site checks of human vibration accelerometers in accordance with ISO 8041.

Svantek

Interested

For more information on SV 110 Vibration Calibrator or to request a quote, contact our team now:

Request a QuoteContact us

The small size of SV 110 enables easy checks of sensors at the machines. Depending on the selected frequency user may select level of calibration from1 m/s2 to 10 m/s2. Accelerometers are conveniently attached using mounting stud, mounting disc or dedicated adapter.
The calibrator menu provides selection between both metric systems ‘g’ and ‘m/s2’. The menu is simply operated by three push-buttons and small OLED display.
The SV 110 is the perfect solution for calibration checks of hand-arm vibration meters including Svantek’s SV 103 and SV 106A. Following the requirements of ISO 8041, the calibrator’s built-in reference accelerometer measures the cross-axis (transverse) vibrations to detect any interference to the calibration signal. Faults caused by transverse vibrations are indicated by two LEDS on the calibrator’s housing. This unique solution ensures the stability of both the calibration level & frequency, independent from the mass of the test object.
The small size of the SV 110 makes it very useful for calibration checks of various types of machine vibration accelerometers. Depending on the selected frequency, the user can select the level of the calibration from 1 m/s2 to 10 m/s2. Accelerometers are conveniently attached using either a mounting stud, a mounting disc or a dedicated adapter. The calibrator has built-in rechargeable batteries that will power it for 12 hours of continuous operation.

SV 110 Vibration Calibrator Specification

Calibration Signal
Parameters
Vibration accelerations
(RMS in ms-2)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 79.58 Hz)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
Vibration velocities
(RMS in mm/s)
2, 4, 6, 8 10, 12, 14, 16, 18, 20 (at 79.58 Hz)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
Vibration displacement
(RMS in μm)
4, 8, 12, 16, 20, 24, 28, 32, 36, 40 (at 79.58 Hz)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
Amplitude errorLess than ± 3%
Frequency errorLess than ± 0,5%
Transverse vibrationLess than 10% of the main direction
Harmonic distortion< 3 % (at 79.58 Hz)
< 3 % (at 159.2 Hz)
General Information
Maximum weight of
calibrated object
300 grams (at 79.58 Hz)
200 grams (at 159.2 Hz)
Sensor mountingThread M5 x 6 mm
Working Conditions
Temperature range-10 °C ÷ 50 °C
Humidity range25% ÷ 85%

Power Supply
Battery typeRechargeable 7.2 V / 2 Ah
Continuous operating timeUp to 12 hours
Charging time5 hours (with SA 54) or 10 hours (with USB)
Power supply for chargerSA 54 (5V / 2A) or mini USB 500 mA HUB
Overall Weight and
Dimensions
Weight1200 g (incl. battery)
Dimensions170 x 65 x 65 mm
Optional Adapters
SA 105Badapter for SV 105B (option)
SA 155adapter for SV150 and SV151 (option)
SA 40adapter for SV3233A, SV 3143M1 (option)
SA 44adapter for SV 50, Dytran 3023M2 (option)
