SV 111 Portable Vibration Calibrator

SV 111 Vibration Calibrator is the State of the Art instrument designed for in-situ checks according to ISO 8041. In-situ checks are intended for application in the field prior to and following a measurement or series of measurements. They act as a check of the instrument’s basic calibration and functionality.



Interested

For more information on SV 111 Portable Vibration Calibrator or to request a quote, contact our team now:

Overview
Specification
Download

The SV 111 is suitable for calibration checks of various types of vibration meters at different frequencies from 16 Hz up to 640 Hz. Depending on the selected frequency user may select level of calibration from 1 m/s2 to 10 m/s2. The design of the calibrator is based on the built-in triaxial reference accelerometer and microprocessor-controlled shaker. Following ISO 8041 requirement the reference accelerometer measures the cross-axis / transverse vibrations to detect interference on the calibration signal. Faults caused by transverse vibrations are indicated by three LEDS on the calibrator’s panel. This unique solution ensures the excellent stability of the calibration level & frequency independently from mass of the testing object. Shaker can be loaded with large weight up to 1 kilogram.

Any improper object fixing is automatically detected and indicated by LEDs on the calibrator’s panel giving the information about direction which should be corrected.

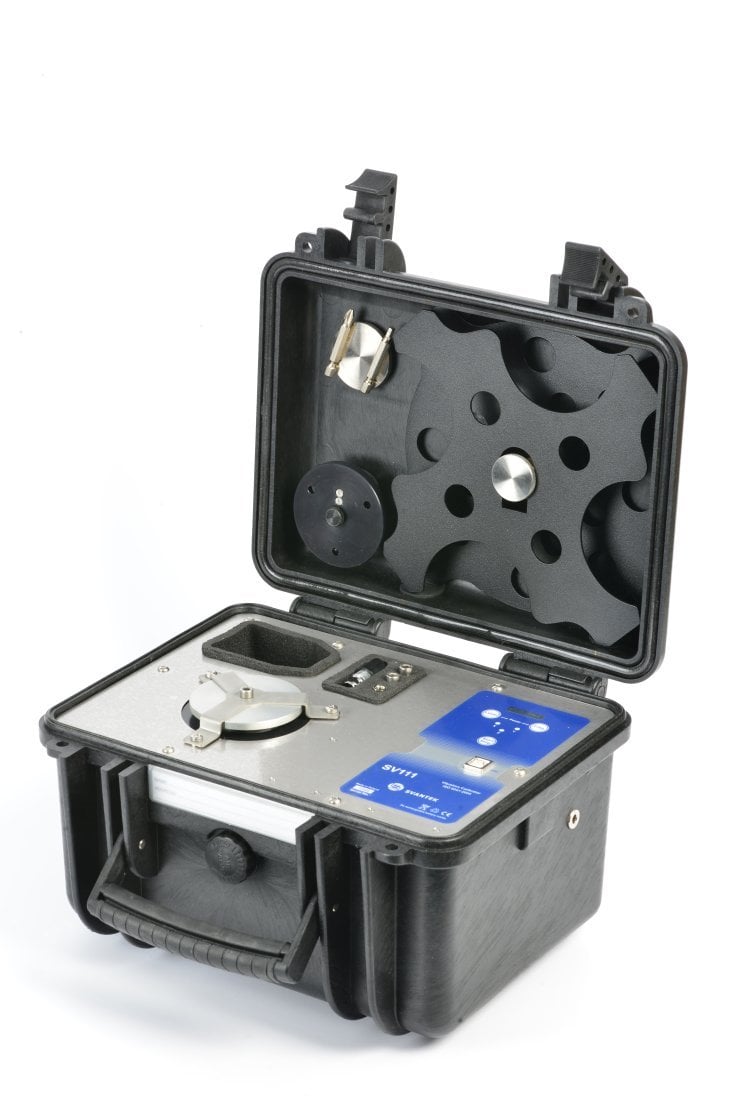

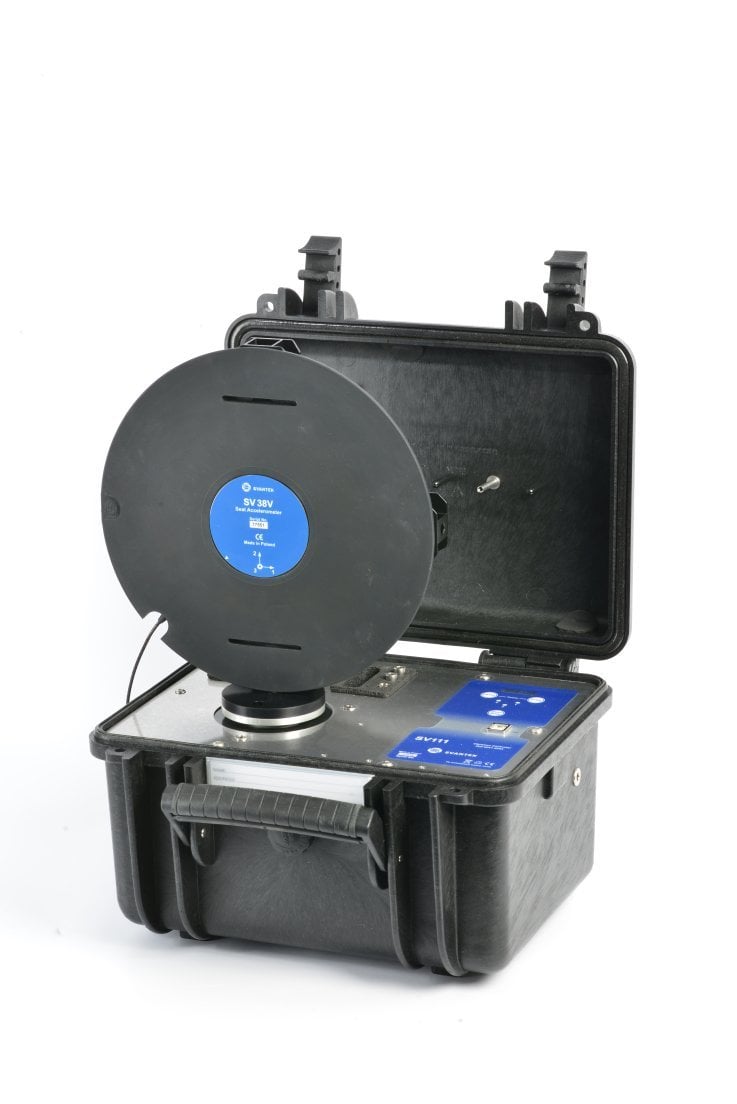

For calibration checks of tri-axial sensors set of dedicated adaptors is available including a special adaptor to Svantek whole-body sensors (seat-pads) for direct mounting on the shaker. Other types of vibration transducers can be conveniently attached using mounting stud, mounting disc or dedicated adaptor.

Robust casing and built-in rechargeable battery enhance exceptional features of this new generation instrument.

Features:

  • Self-contained portable vibration calibrator
  • Easy calibration of all type of vibration transducers for acceleration, velocity and displacement at 79.6 Hz and 159.2 Hz
  • In-field accelerometer checks according to ISO 8041
  • Built-in reference accelerometer
  • Cross-axis / transverse vibrations detection
  • Low frequency calibration at 15.92 Hz with maximum payload of 1kg!
  • Complete seat-accelerometer calibration
  • Automatic fault detection
  • Display showing frequency, magnitude and errors
  • Automatic power off with timer
  • Robust design and light weight – 6.5 kg only
  • Rechargeable battery
  • Ready and easy to use in field

SV 111 Vibration Calibrator Specification

Generated Vibration Signal (Calibration)
Vibration accelerations (RMS in ms-2)1 (at 15.92 Hz)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 79.58 Hz)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
1 (at 636.6 Hz)
Vibration velocities (RMS in mm/s)10 (at 15.92 Hz)
2, 4, 6, 8 10, 12, 14, 16, 18, 20 (at 79.58 Hz)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
0.25 (at 636.6 Hz)
Vibration displacement (RMS in μm)100 (at 15.92 Hz)
4, 8, 12, 16, 20, 24, 28, 32, 36, 40 (at 79.58 Hz)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (at 159.2 Hz)
0.0625 (at 636.6 Hz)
Amplitude errorLess than ± 3%
Frequency errorLess than ± 0,5%
Transverse vibrationLess than 10% of the main direction
Harmonic distortion< 5% (at 15.92 Hz)
< 3 % (at 79.58 Hz)
< 3 % (at 159.2 Hz)
< 3 % (at 636.6 Hz)
General Information
Maximum weight of calibrated object1000 grams (at 15.92 Hz)
300 grams (at 79.58 Hz)
200 grams (at 159.2 Hz)
200 grams (at 636.6 Hz)
Sensor mountingThread M5 x 12 mm
Working Conditions
Temperature range-10 °C ÷ 50 °C
Humidity range25% ÷ 85%
Power Supply
Battery typeRechargeable 6 V/12 Ah
Continuous operating timeUp to 20 hours
Automatic switch offFrom 5 to 60 minutes adjustable
Charging timeLess than 10hours
Power supply for charger15 W; 8÷24 V
Overall Weight and Dimensions
Weight8.2 kg (incl. battery)
Dimensions395 x 270 x 194 mm
Optional Adaptors
SA 111seat accelerometer adaptor for SV 38, SV 38V, SV 100 (included)
SA 105Badaptor for SV 105B (option)
SA 155adaptor for SV150 and SV151 (option)
SA 38adaptor for SV 101 (option)
SA 40adaptor for SV3233A, SV 3143M1 (option)
SA 44adaptor for SV 50, Dytran 3023M2 (option)

*Continuous product development and innovation are the policy of our company. Therefore, we reserve the right to change the specifications without prior notice.
