Sound Scanner P132

The Sound Scanner P132 has been specially developed for applications in the fields of engineering, building acoustics and environmental noise. Due to the sensor size with a measuring diameter of 1.32 m, even low-frequency sound events can be precisely visualised.

Interested

For more information on Sound Scanner P132 or to request a quote, contact our team now:

request a quote contact us

The Sound Scanner is a new type of acoustic camera developed by Seven Bel. The innovative system includes the following components:

Sensor Unit
Mobile device
Software
Cloud infrastructure
Tripod

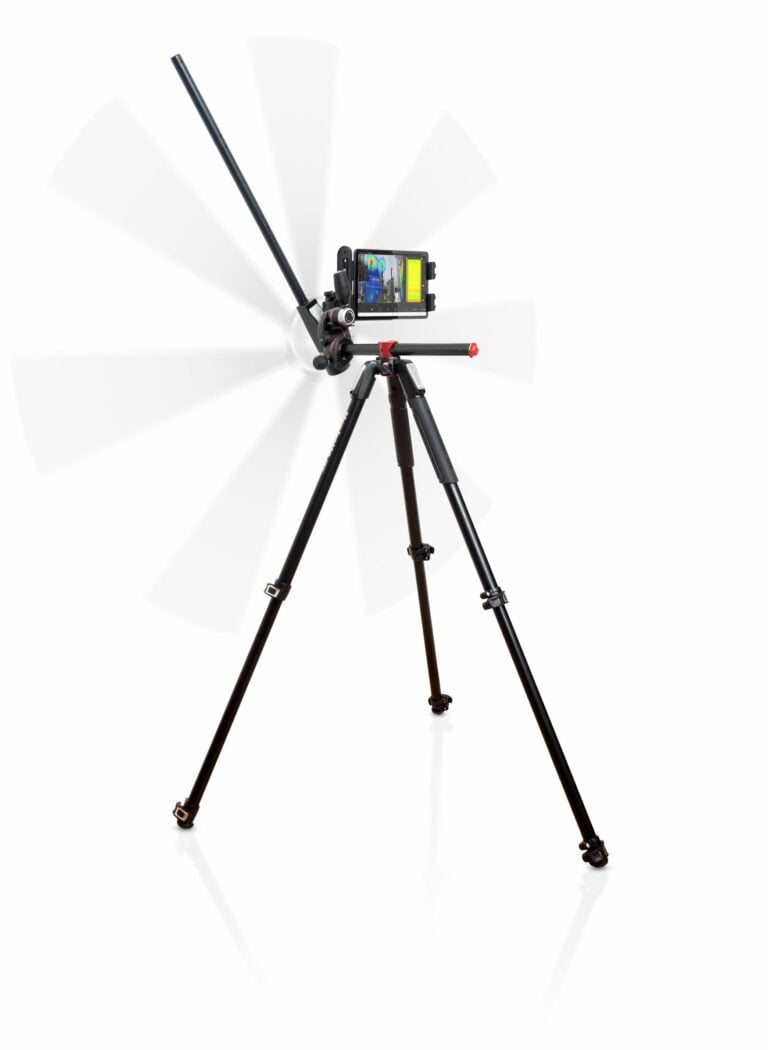

The sensor is mounted on the tripod and set into a rotating motion during measurement. The sensor design, comprising high-quality materials such as carbon, ceramic and aluminium, is robust and operational only with a few quick and easy moves. The sensor is lightweight and compact, and can therefore be taken along for any situation.

Data processing works as fast as the setup. After each measurement, the mobile app transmits the collected data to Seven Bel’s high-performance servers. Within seconds you receive acoustic images in superior image quality. Benefit from a massively simplified workflow for measuring and analysing your sound events and share the results with your colleagues, partners or clients in the form of automatically generated reports.

With the patented innovation of a moving sensor Sound Scanners are able to simulate up to 480 microphone positions on a circular area while using only five built-in microphones. Comparable acoustic cameras are normally equipped with about 100 microphones. This advantage has significant impact on the measurement quality. The unique mobility and handling and high-quality measurement results make the Sound Scanner P132 a modern high-performance measurement device that can be used and transported easily. No Laptop, power adapter or data recorder needed – more space for other things.

Sound Scanner P123 Specification

Analysis
Audio	Real time display of time signal, sound pressure level in dB(A), frequency spectrum and spectrogram Stream/Pause mode Selection of time/frequency intervals and audio playback of the filtered signa
Acoustic image/video	Selection of frequency band Playback of filtered audio Single frame or time averaged frames Video playback
Data management	Automated pdf report generation of single acoustic image or timed averaged images including meta data (time, location, notes, etc.), time signal, spectrum and spectrogram Export and import of measurements in zip format via installed file sharing apps (e.g. Google Drive)

Sensor
Diameter of scan area	132 cm
Weight (excl. sensor mount and tripod)	1400 g
Rotation frequency (min/typ/max)	0,2 / 1 / 2 revolutions/second
Number of microphones	5
Battery life (fully charged)	6 hours

Microphone
Sample frequency	21,5 kHz
Resolution	24 bit
Frequency range	50 Hz – 20 kHz
Sensitivity tolerance	+/- 1 dB
Maximum measurable sound pressure level	117 dB
Absolute maximum sound pressure level	160 dB

Acoustic Image
Frequency range	250 Hz – 10,5 kHz
Spatial resolution at 5 kHz (3 dB dynamic range)	2,6 °
Dynamic range	> 13 dB
Computed images per revolution	up to 6
Measuring distance	0,5 m – infinity
