SC Amp Audio Test Amplifier

SC Amp is the world’s only dedicated audio test amplifier. Specifically designed for the making audio measurements, it incorporates several features unique to the needs of loudspeaker testing, and unnecessary features found in regular audio amplifiers have been eliminated to keep production line operation simple and error-proof.

Listen

Interested

For more information on SC Amp Audio Test Amplifier or to request a quote, contact our team now:

Request a QuoteContact us

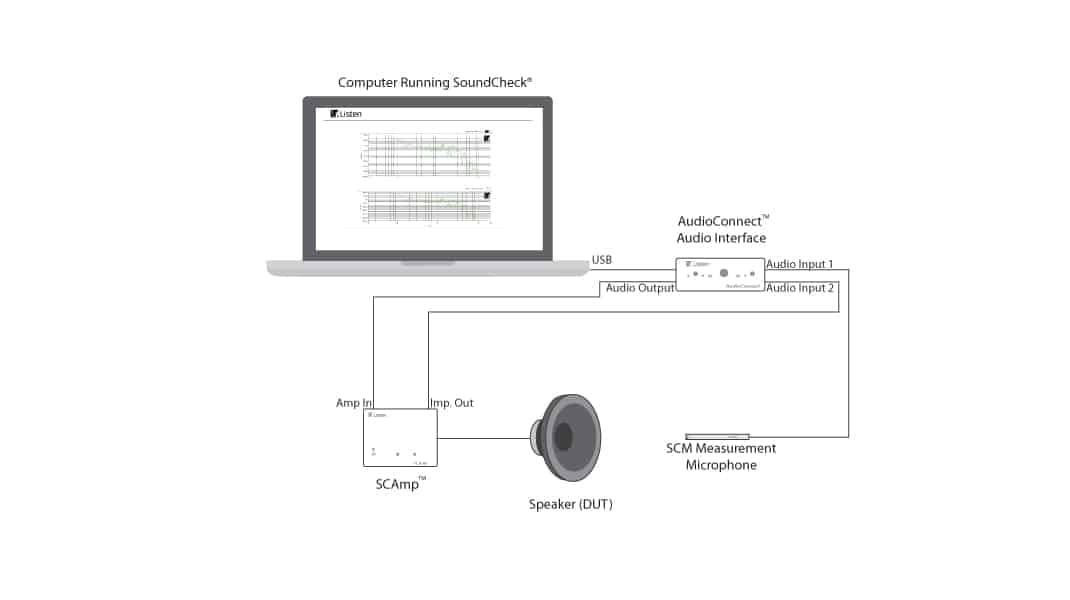

Rugged and easy to use, SCAmp is a mono amplifier with low distortion (THD <0.025%) and a low noise floor (>100dB). Fixed gain eliminates calibration errors as there is no gain knob to be accidentally knocked or tweaked when it is in use. It supports the application of a DC voltage offset to the AC signal for testing transducers under adverse conditions. Overload/output protection prevents damage due to shorting or overload. SC Amp’s integrated impedance measurement uses Listen’s unique patented (U.S. Pat. 9,386,387) high accuracy single channel impedance measurement method to offer dual channel accuracy using just a single channel, meaning that full electrical and audio tests can be carried out using just 2 channels. SC Amp integrates seamlessly with Listen’s SoundCheck audio test and measurement software and will also work well with other brands of test system.

Features

  • Rugged and rack-mountable
  • Simple to use
  • Fixed gain eliminates calibration errors
  • Low distortion and low noise floor
  • Supports the application of a DC voltage offset
  • Integrated impedance measurement

Power Amplifier
Guaranteed Minimum Power Output: 35W
Frequency Response: 20Hz – 100kHz
Phase Response: +20° to -10°
Signal to Noise Ratio: > 100dB unweighted*
Total Harmonic Distortion (THD): < 0.025%
Intermodulation Distortion (IMD) : < 0.005%
Input Impedance – Unbalanced: 48kΩ
Input Impedance – Balanced: 48kΩ
Minimum Load Impedance: 4Ω
Voltage Gain: Fixed at 26.4dB
Cooling: Rear heatsink
AC Power Input: 85 – 264VAC International

DC Input
Input Connector: Isolated BNC
Input Impedance: 1MΩ
DC Gain Factor: Unity
DC Offset: ±3.5V
AC Coupling Filter -3dB: 4Hz (3rd Order Bessel)

Load Current Monitor Output
Output Sensitivity: 100mV/A
Output Impedance: 60Ω, Balanced & Unbalanced
Output Connector: 1/4″ TRS

Physical
Dimensions: 4.375” (W) x 3.5” (H) x 8.25” (D)
Weight: 1008g / 2.22lb

Optional Accessories
Rackmount shelf with mounting points for ¼ rack width Connect series products. Part # 4901
