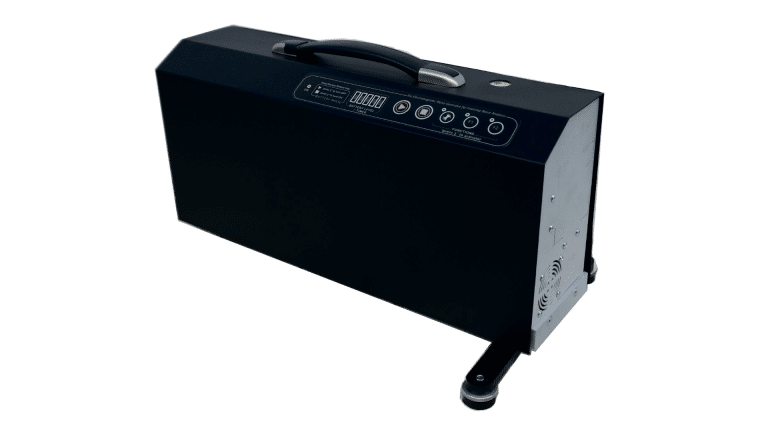

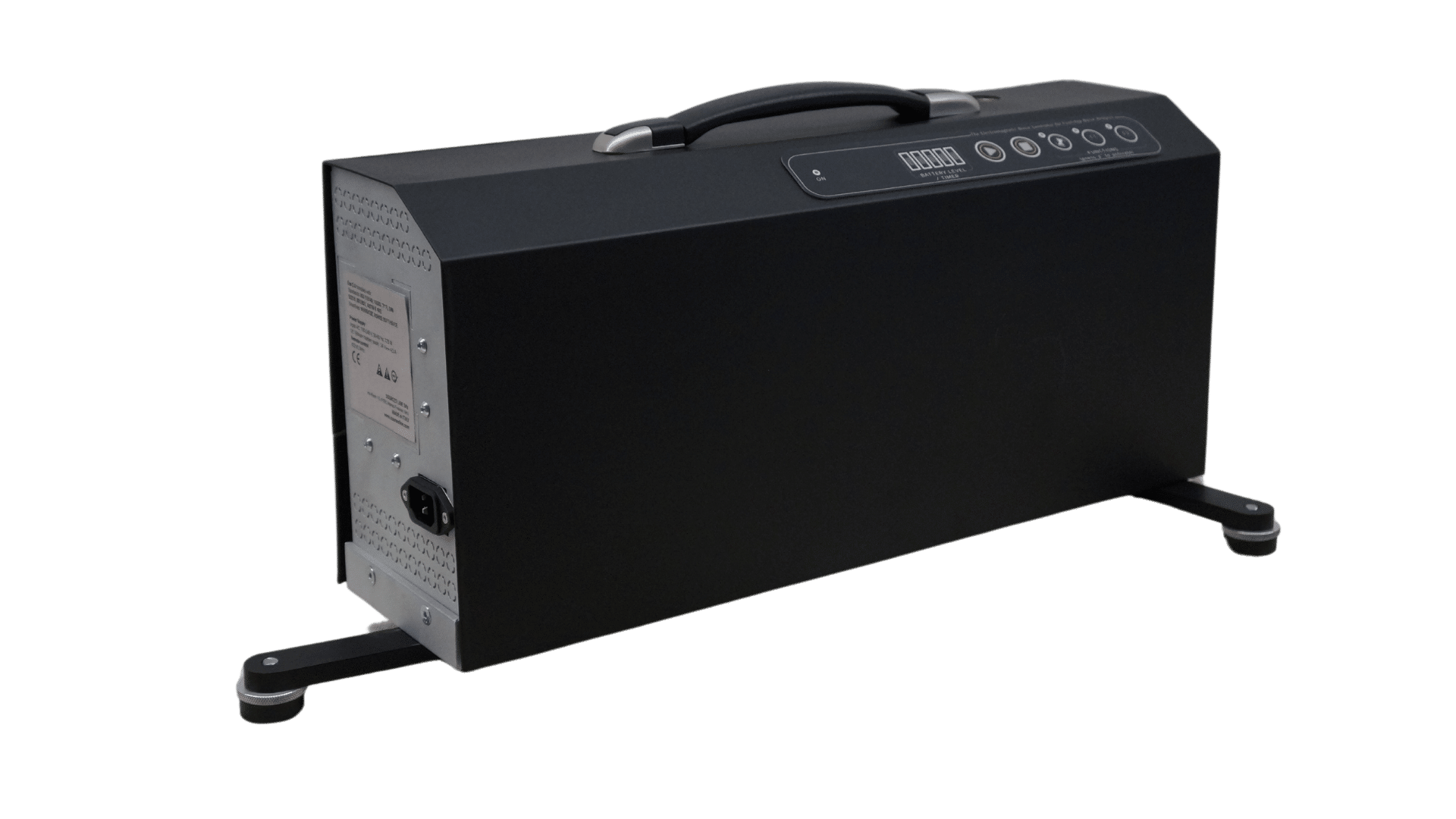

EOS 2.0 Tapping Machine

Introducing a brand new version of the best selling EOS tapping machine, the EOS 2.0 tapper.

Interested

For more information on EOS 2.0 Tapping Machine or to request a quote, contact our team now:

request a quote contact us

EOS 2.0 is easier to handle, more intuitive and offers extended battery life.

What’s New?

Made from laser-bevelled aluminium, featuring a precise electromagnetic lifting system for its five hammers. This ensures extremely accurate fall timing accuracy while minimising vibrations and ground noise, unlike mechanical systems.

Improvements

Reduction in weight and size

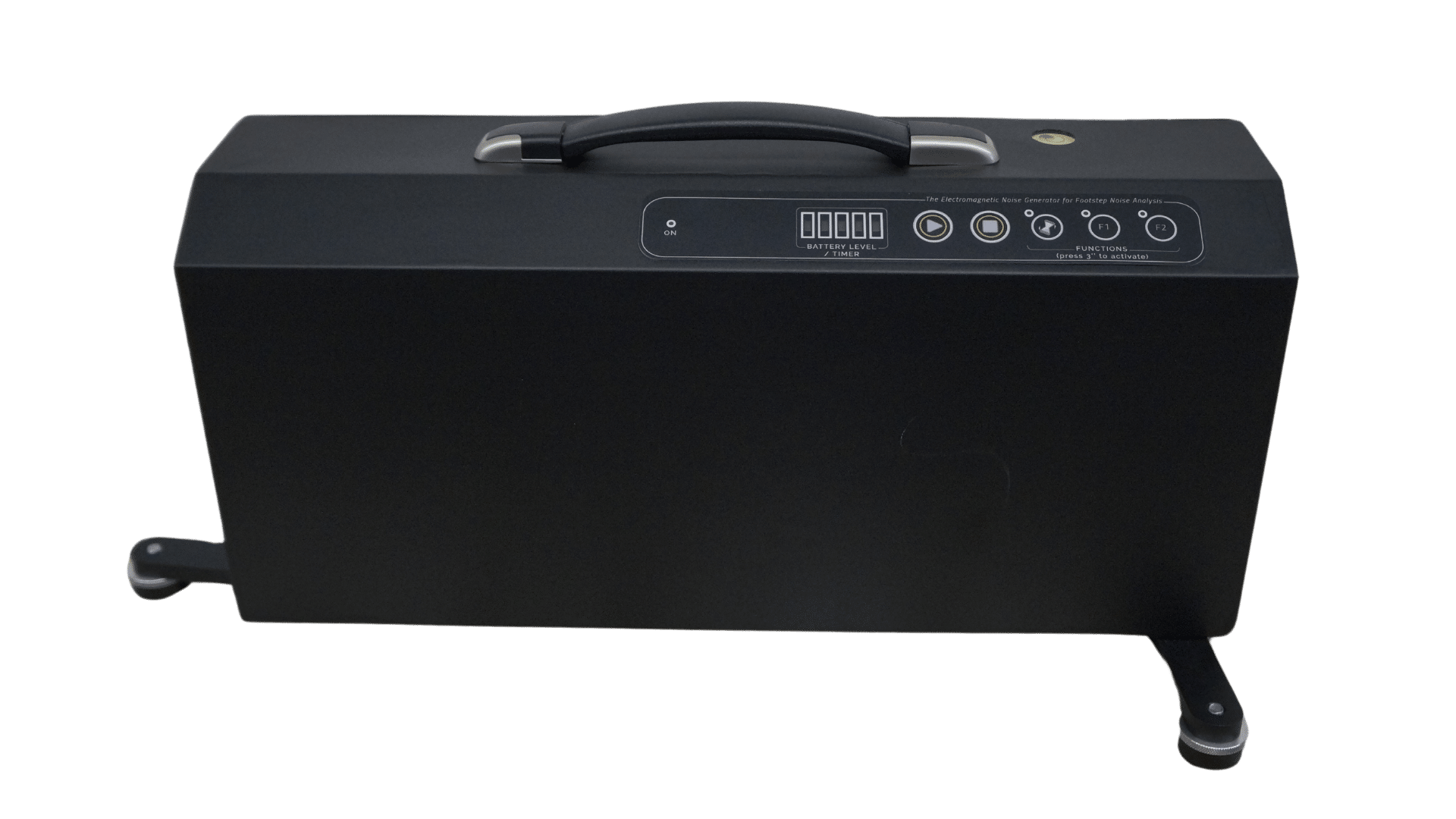

Membrane keyboard
Built-In lithium battery pack

New Features

Delayed start function
Lighter and contemporary hard case

EOS 2.0 Specification

Dimensions (L x H x P)	122 x 245 x 480 mm
Weight	9 Kg (including built-in battery pack)
Accessories provided	AC cable, Battery Pack, Remote Control, User Manual, ISO Certification.
Optional accessories	Hard Case / Soft Bag

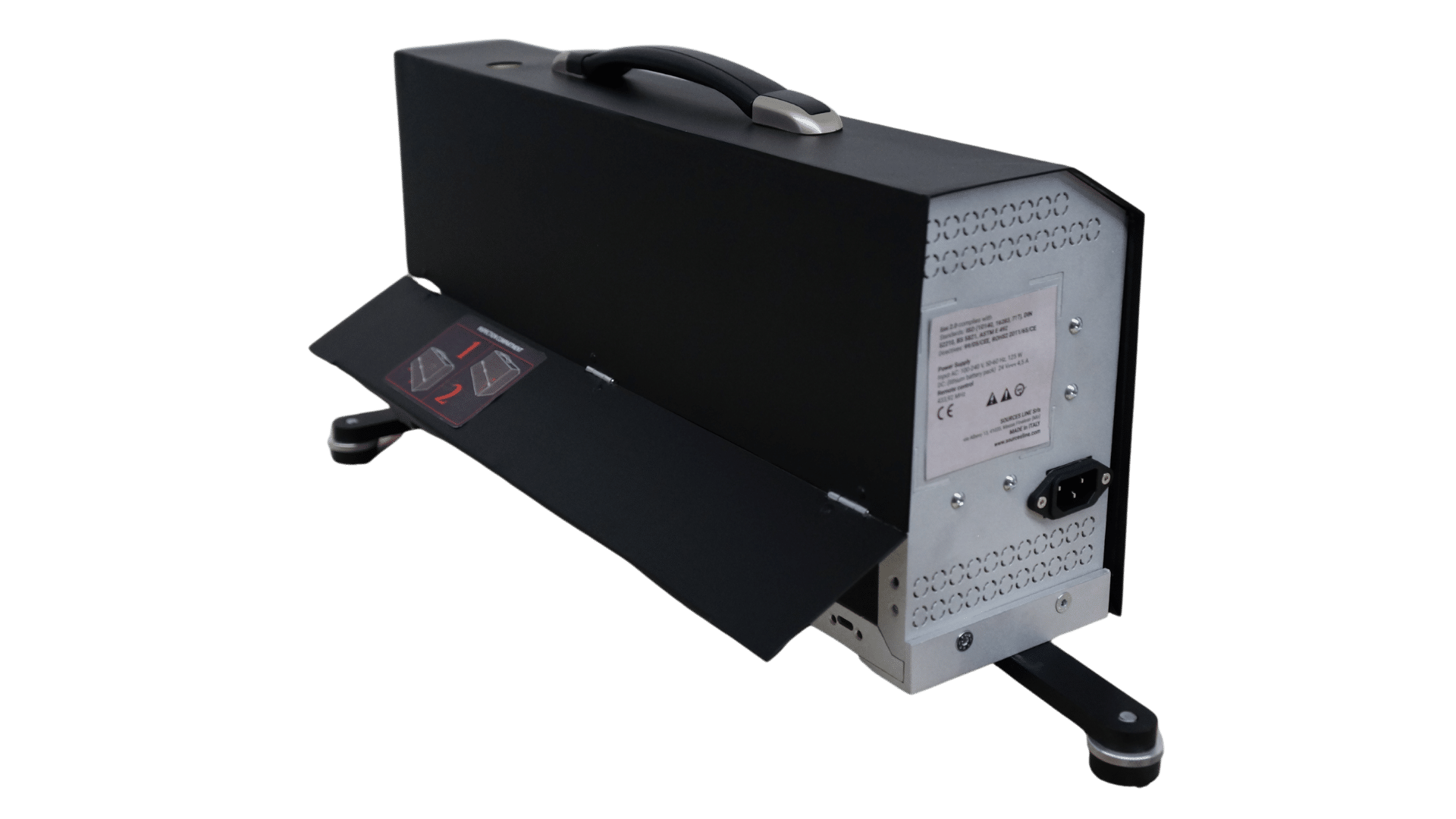

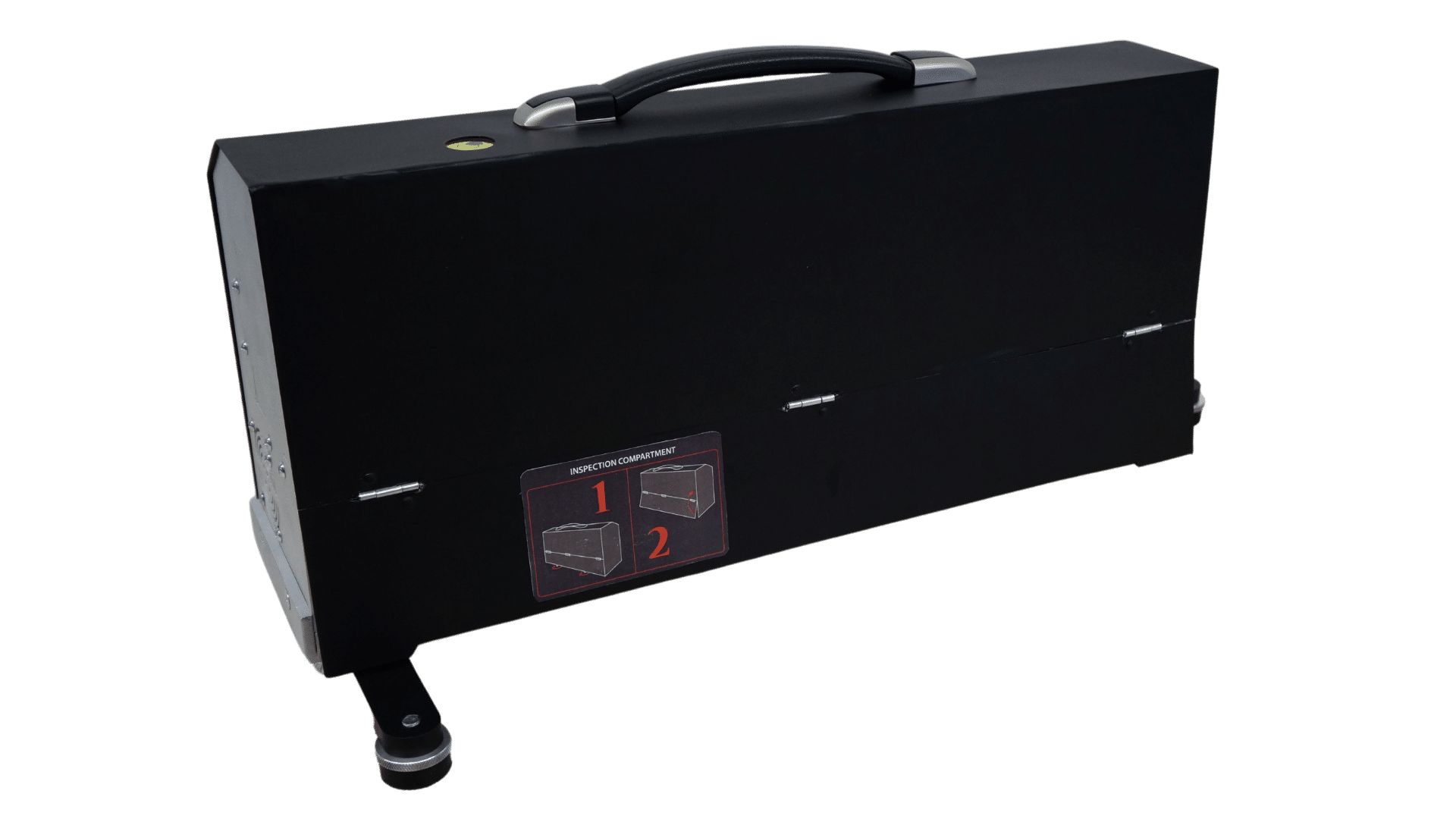

Characteristics	Built-In Lithium Battery Pack Membrane Keyboard Delayed Start Function Inspection Doors
Absorbed power	125 W

Power Supply

Input	100 – 240 V; 50 – 60 Hz
Battery Voltage	25,2 V

Battery Pack

Type	Lithium Battery
Capacity	4900 mAh
Cell Voltage	3,6 V (for 7 cells)
Operating Time	70 min

Parameters

Reference Standards: ISO 10140; ISO 16283; ISO 717; DIN 52210; BS 5821; ASTM E 492	Declared Values for Our Product
Hammers weight (500 ± 6) gr	(500 ± 4) gr
Head of hammers (30 ± 0,2) mm (500 ± 100) mm	Diameter: (30 ± 0,1) mm Curvature of the Impact Surface: (500 ± 30) mm
Time Between Impacts (100 ± 20) ms	(100 ± 4) ms
Mean Time Between Impacts (100 ± 5) gr	(100 ± 1) ms
