CRY2623 Industrial Acoustic Imager
CRY2623 is a hand-held industrial acoustics imager that supports ultrasonic frequency band. The instrument uses the microphone array beamforming technology to acquire the sound source distribution data, and collects the video images in real time with the high-definition camera. By integrating the sound source distribution data with the video image, the changing sound source is dynamically presented on the display screen.
Check out our range of cameras with our acoustic camera comparison page
Interested
For more information on CRY2623 Industrial Acoustic Imager or to request a quote, contact our team now:
The CRY2623 Industrial Acoustic Imager helps you quickly detect possible air, gas and vacuum leakage faults in noisy industrial environments. The acoustic imager is made of aluminum alloy shell, which is strong and durable and can adapt to the complex and changeable working environment.
It features both Partial Discharge and Gas Leakage detection function, and can show partial discharge type, estimation of gas leakage and loss value.
Features
- The equipment is simple and convenient to operate, and can be used quickly. It only needs to adjust two parameters, the test frequency range and test dynamic range to meet the vast majority of test requirements
- Support camera mode, video mode, and the data recording on the job site is flexible
- Large capacity TF data memory card can be expanded also test results can be exported and reported quickly
- Support leak assessment function to evaluate the leak level and leak volume
- It features PC-based Report Generation Software, just one click to export test reports
- Support ultrasonic monitoring
- High efficiency, instant imaging, rapid positioning of fault points in the screen
Applications

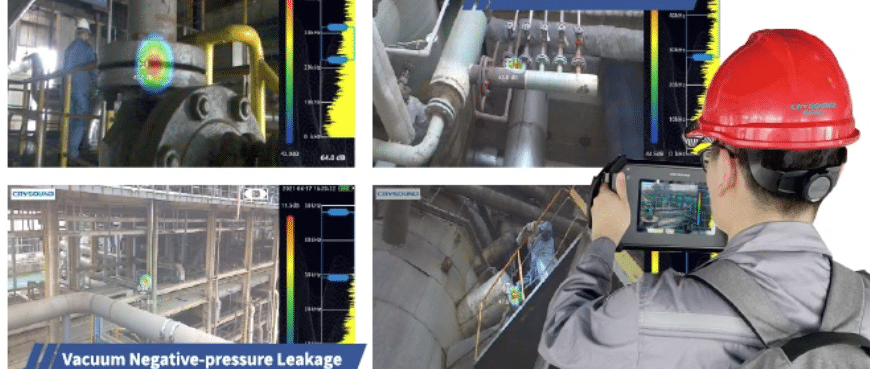

- Gas leakage detection
- Airtightness test

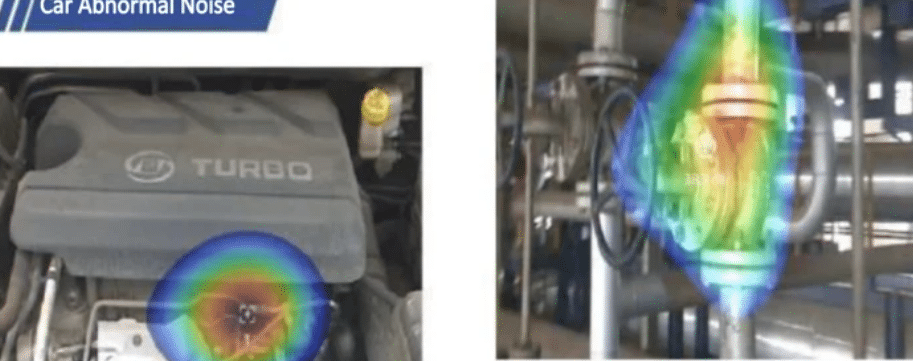

- Abnormal noise locating
- PD Detection & PD type identification
| Acoustic Specification |
|---|
| Microphone array | 128-channel MEMS microphone |
| Effective test bandwidth | 2kHz-48kHz |
| Dynamic range | 0.5dB-12dB user adjustable |
| Test Sound Pressure Level Range | 25.7dBA-132.5dBA |
| Auto max/min dB gain | User-settable, minimum test bandwidth 1kHz |
| Number of digits | 24bit |
| Sound image FOV | 62° |
| Sound image frame rate | At least 25 FPS |
| Leak detection rate | 10m 5bar 0.92ml/s 0.5m 5bar 0.55ml/s |
| Detect distances | 0.3m-120m |
| Camera |
|---|
| Camera FOV | 62° |
| Camera focal length | 3.04mm fixed focal length |
| Camera pixel | 8 million pixel |
| Display |
|---|
| Resolution | 1024*600(614,400 pixels) |
| Size | 7 inch |
| Touchscreen | Capacitive touch screen |
| Brightness | Adjustable |
| Photo notes | Up to 5 photos notes for reference |
| Source | Show single or multiple sources |
| Standard palettes | Grayscale, Ironbow, Blue-red |
| Playback function | View photos, videos anytime, and add notes or tags |
| Storage |
|---|
| Internal Storage | About 8G |
| External Storage | TF memory card, at least 64G, expandable to 256G |
| Data storage format | jpg (Picture), mp4(Video), wav(Audio) |
| Video length | 5 minutes |
| Digital export | TF card |
| Power |
|---|
| Battery Capacity | [email protected] rechargeable battery 1Xexternal battery package, continuous |
| Battery Life | 4_6 hours operation time |
| Charger | USB Type-C port USB PD protocol supported, 15W |
| Power consumption | 15W for battery charge 29W for maximum power consumption |
| Energy management | Sleep/Auto power off modes |
| Interface |
|---|
| USB3.0 Type-C USB host port |
| 3.5mm headphone socket |
| Operating Environment |
|---|
| Operating environment | -20℃~+50℃ 10%-95% no condensation |
| Storage temperature | -20℃~+60℃ |
| Charging temperature | 10℃~+45℃ |
| General Specification |
|---|
| Ingress Protection (IP) | IP54 |
| Size | 272mm x 174mm x 42mm |
| Weight | 1.7kg |
| Warranty | 2 years |
| Self-diagnostic notification | Array-health test function to identify when microphone array needs attention |
| System | Linux system |
| Certification | CE, FCC, RoHS-compliant, MSDS, CNEX |
| Software |
|---|
| Report types | Gas/Electricity, ISO 50001-compliant |
| Analysis | Waveform, Spectrum, Spectrogram, leakage assessment, discharge type discrimination |
