Crysound Acoustic Cameras
Industrial Leak Detection & Partial Discharge Monitoring
Crysound acoustic cameras are the industry standard for detecting gas leaks, electrical partial discharges, and other acoustic issues in industrial and hazardous environments.

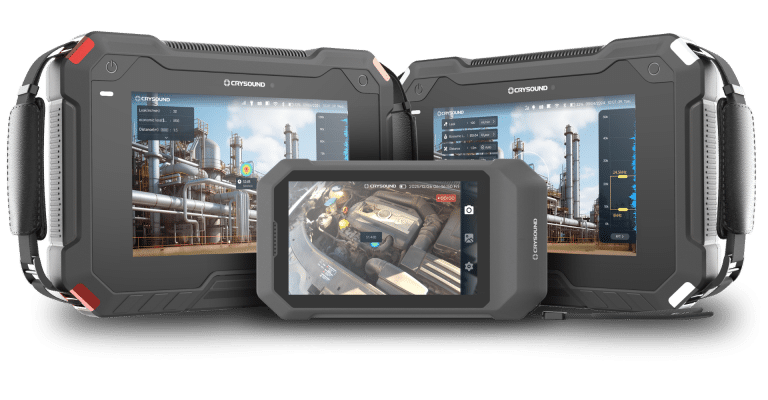

Models such as CRY8025, CRY8124, and CRY8125 combine cutting-edge technology with robust reliability, accuracy, and safety.
Explore our full Acoustic Imaging range
At AcSoft, we offer a comprehensive range of acoustic imaging solutions. From our handheld Crysound range to advanced arrays, we provide a range of products that suit all kinds of applications.
Advanced imaging & analysis: Beamforming, HyperVision, and multi-point imaging algorithms.
ATEX and IECEx models for explosive atmospheres in oil, gas, chemical, and power.
High-frequency detection: Up to 100 kHz for accurate leak and discharge identification.
Portable, rugged design: Handheld and durable for on-site inspections in tough environments.

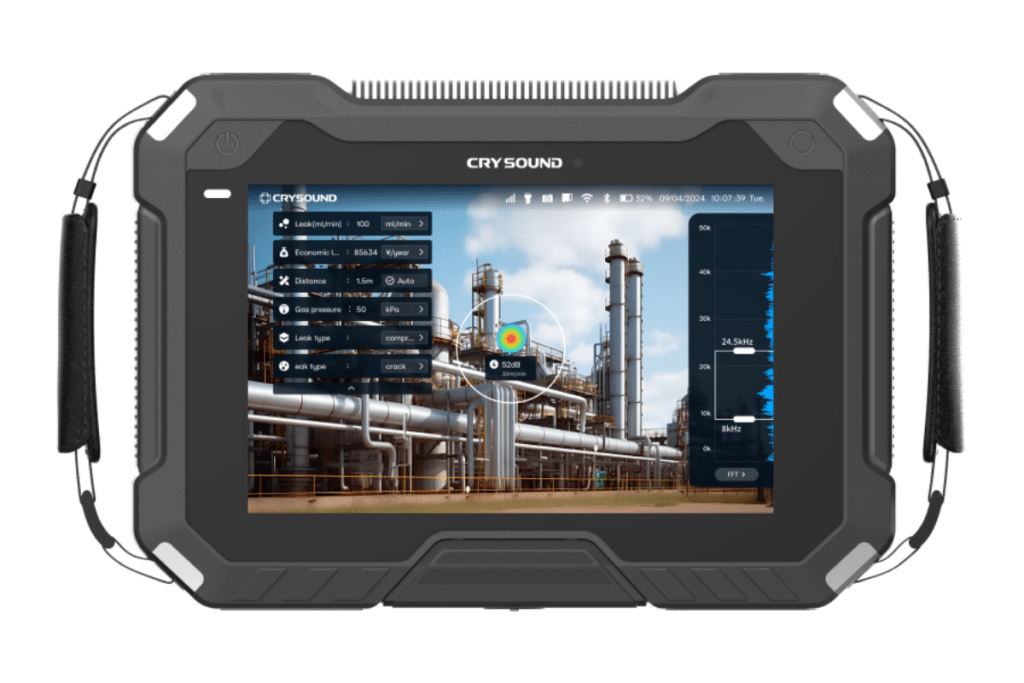

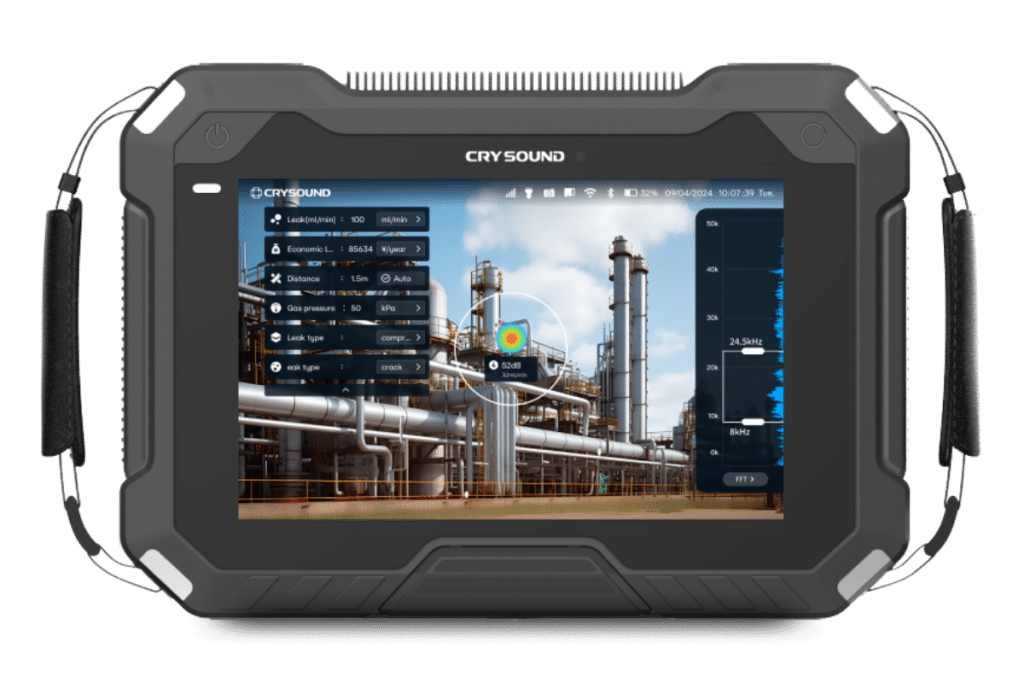

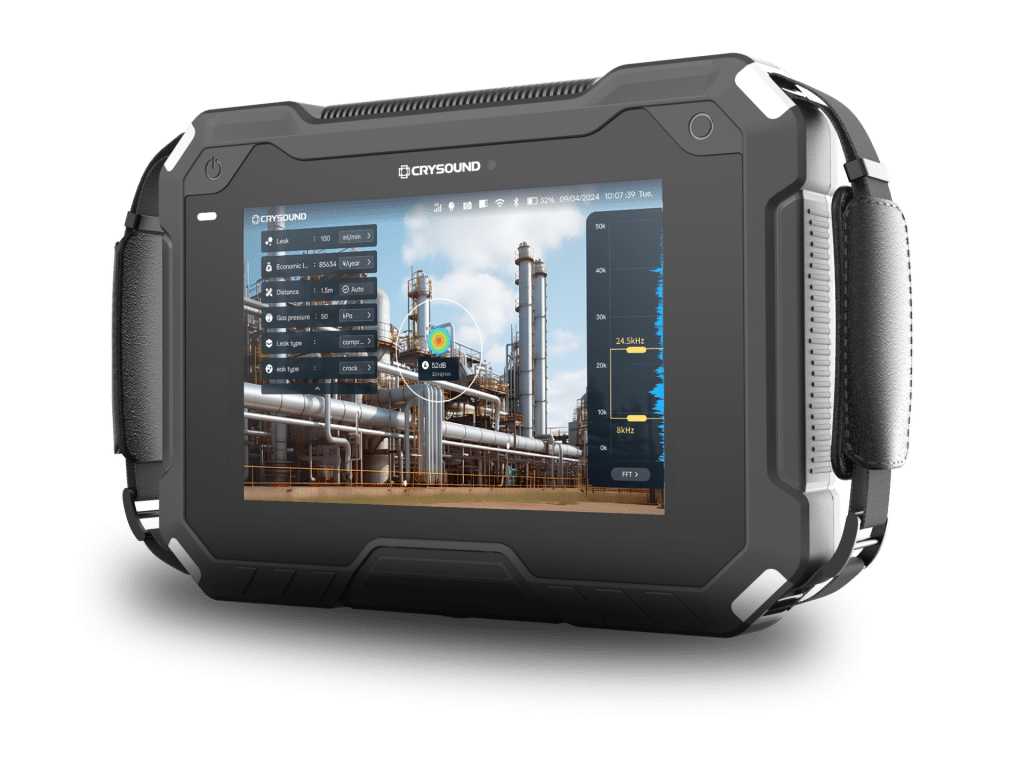

CRY 8124
Advanced Acoustic Imaging Camera

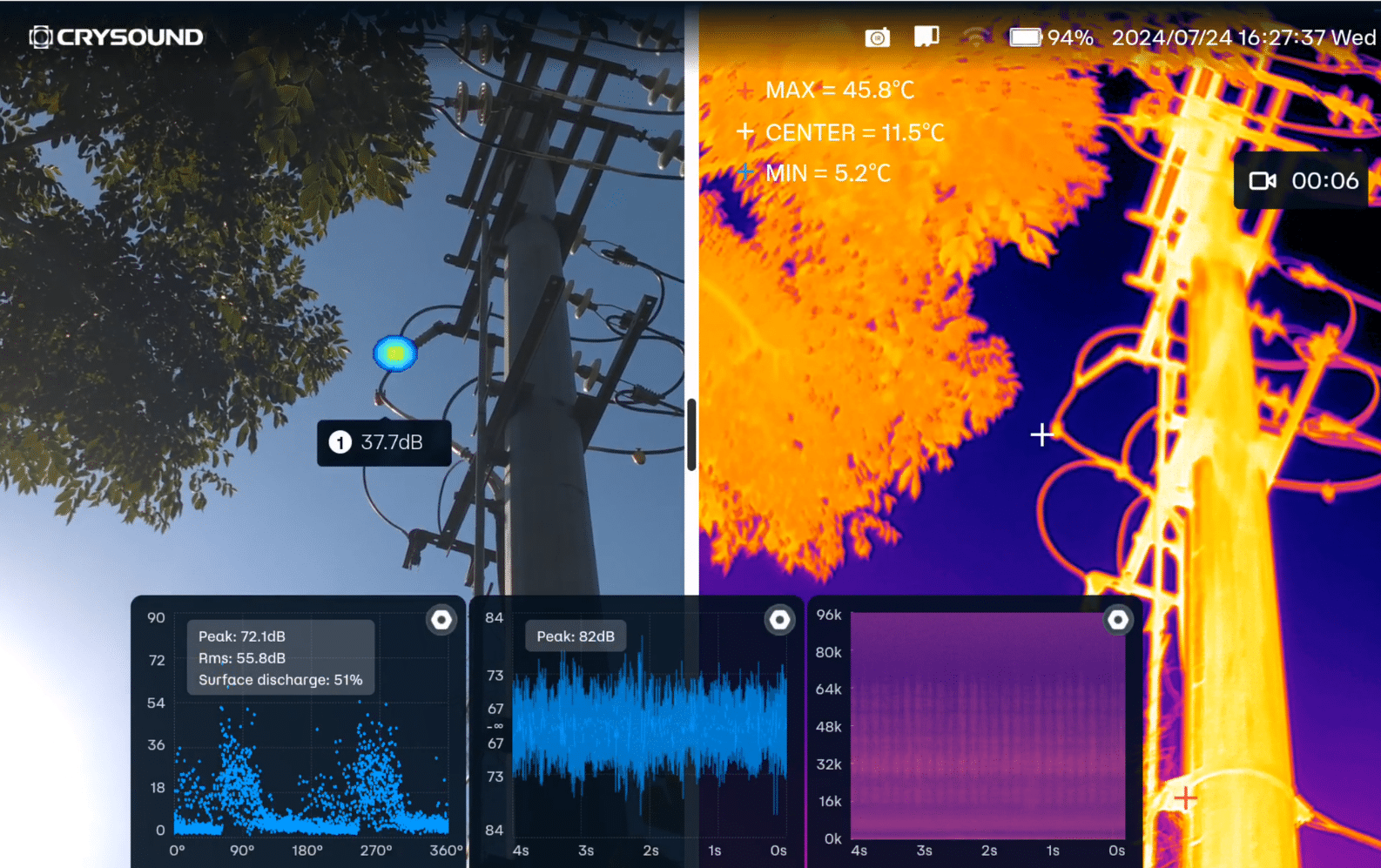

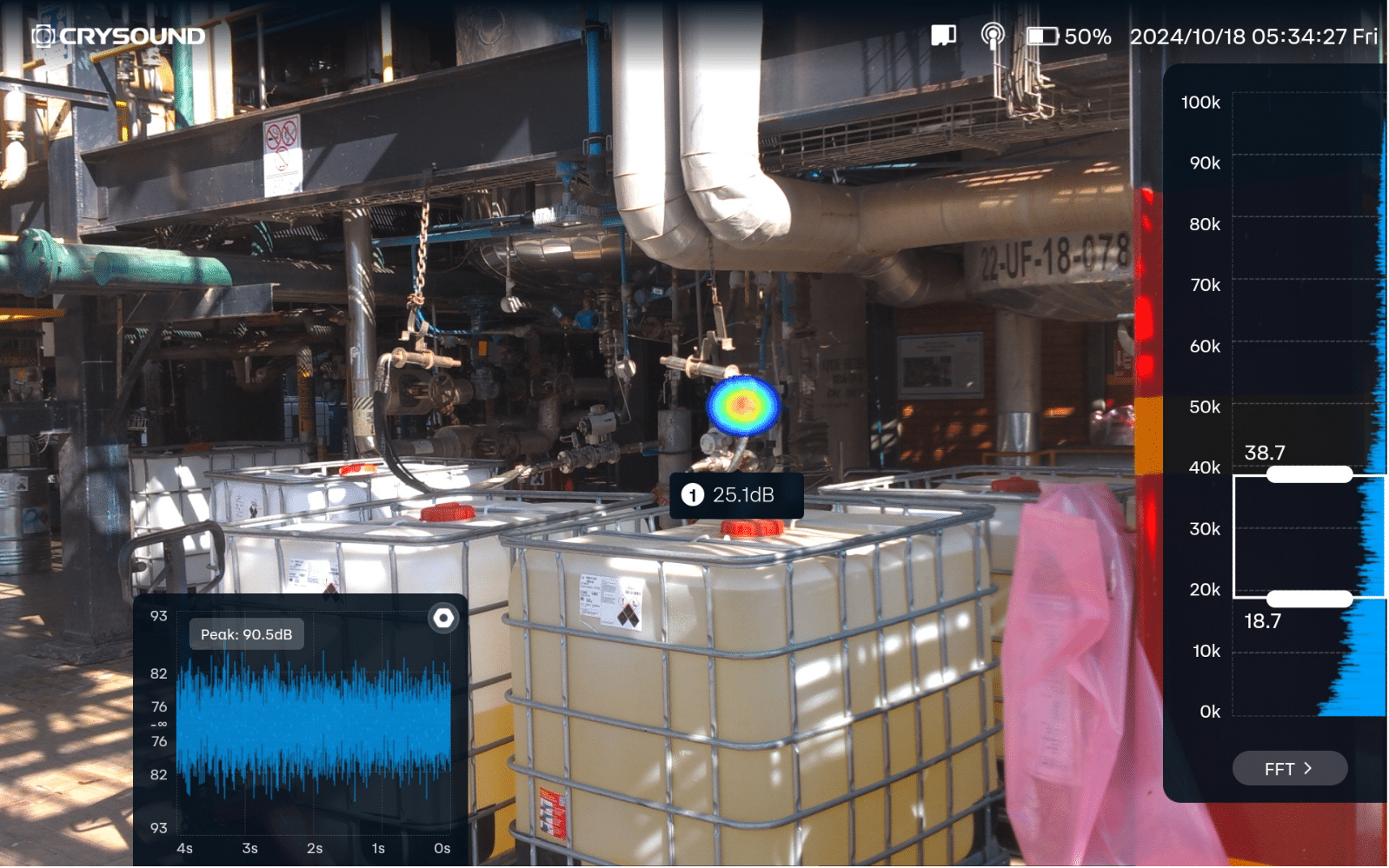

The CRY8124 is Crysound’s flagship acoustic imaging camera, pinpointing leaks, partial discharge, and mechanical deterioration from a greater distance than other handheld cameras on the market. 200 microphones,

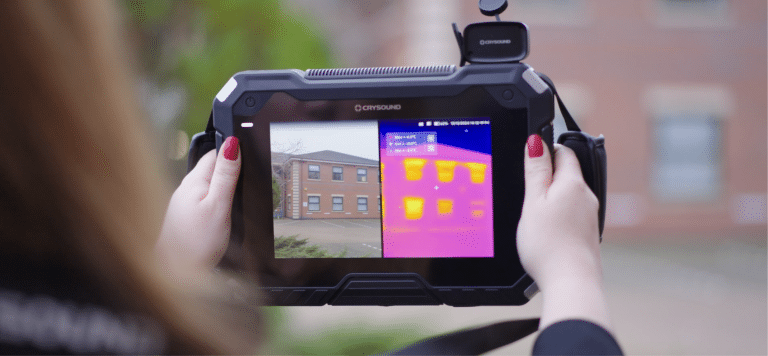

HyperVision noise-filtering, simultaneous thermal and acoustic imaging, and up to 10 hours of replaceable battery life make it built for serious industrial inspection work.

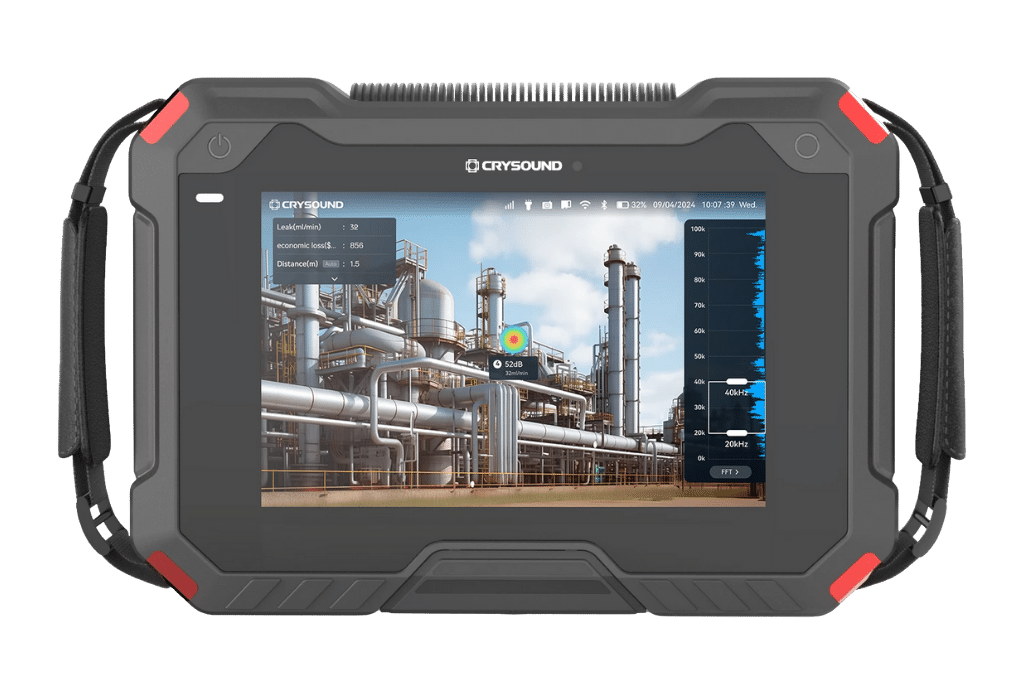

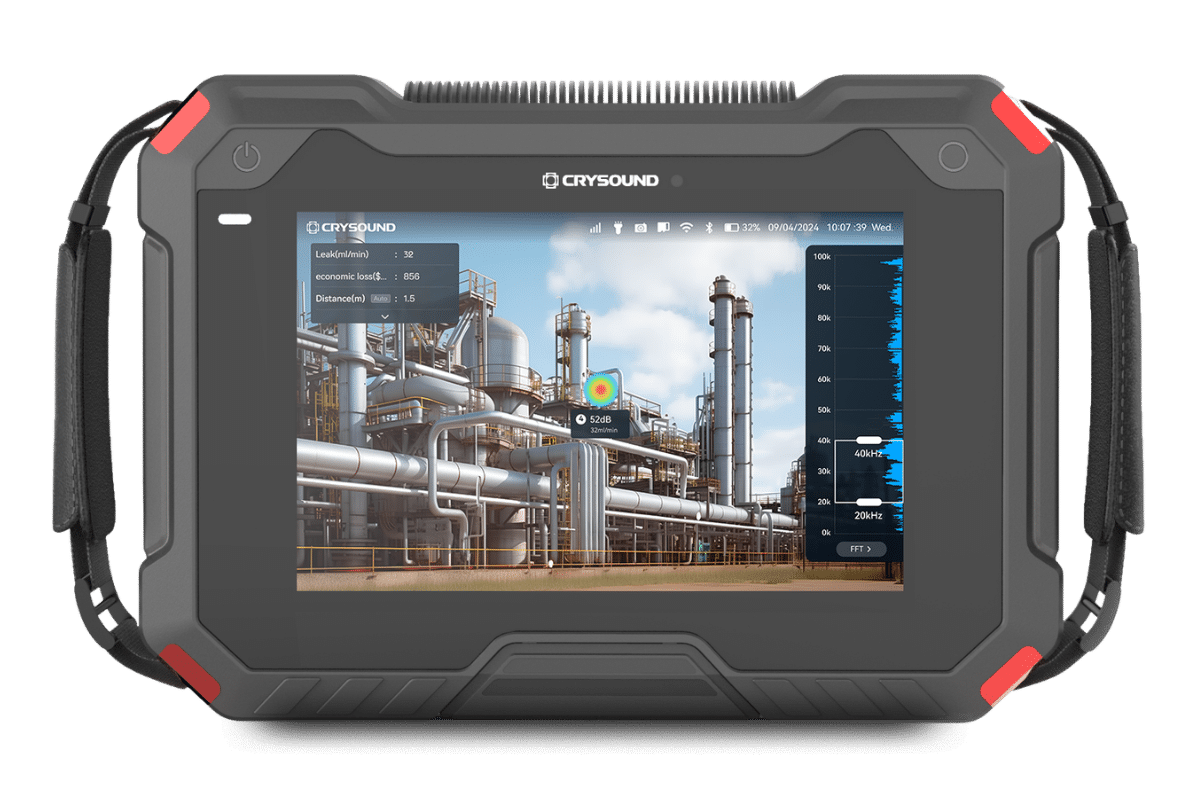

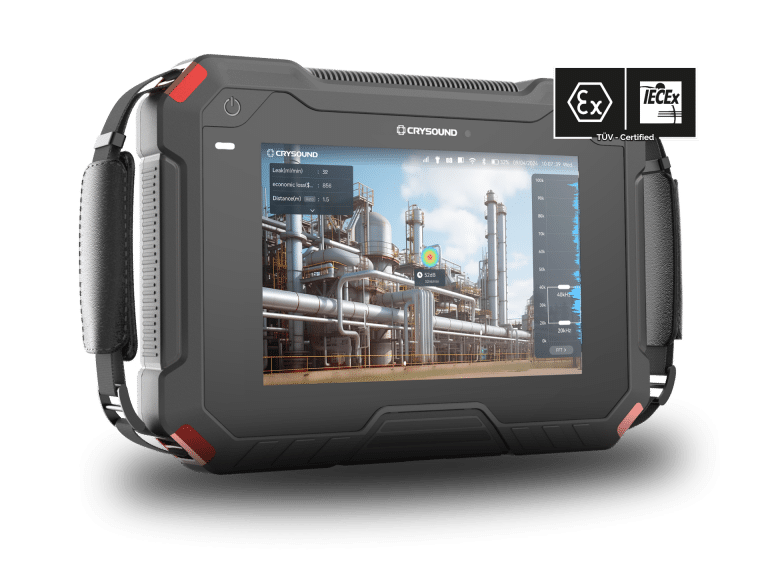

CRY 8125
ATEX Acoustic Imaging Camera
The CRY8125 is Crysound’s ATEX acoustic imaging camera, TÜV-certified and approved under IECEx and ATEX for safe use in explosive atmospheres. It pinpoints leaks, partial discharge, and mechanical wear across gas, oil, chemical, and power industries, detecting hazardous gases.
200 microphones, 100kHz bandwidth, and up to 10 hours of replaceable battery life keep operators at a safer distance without sacrificing detection range.

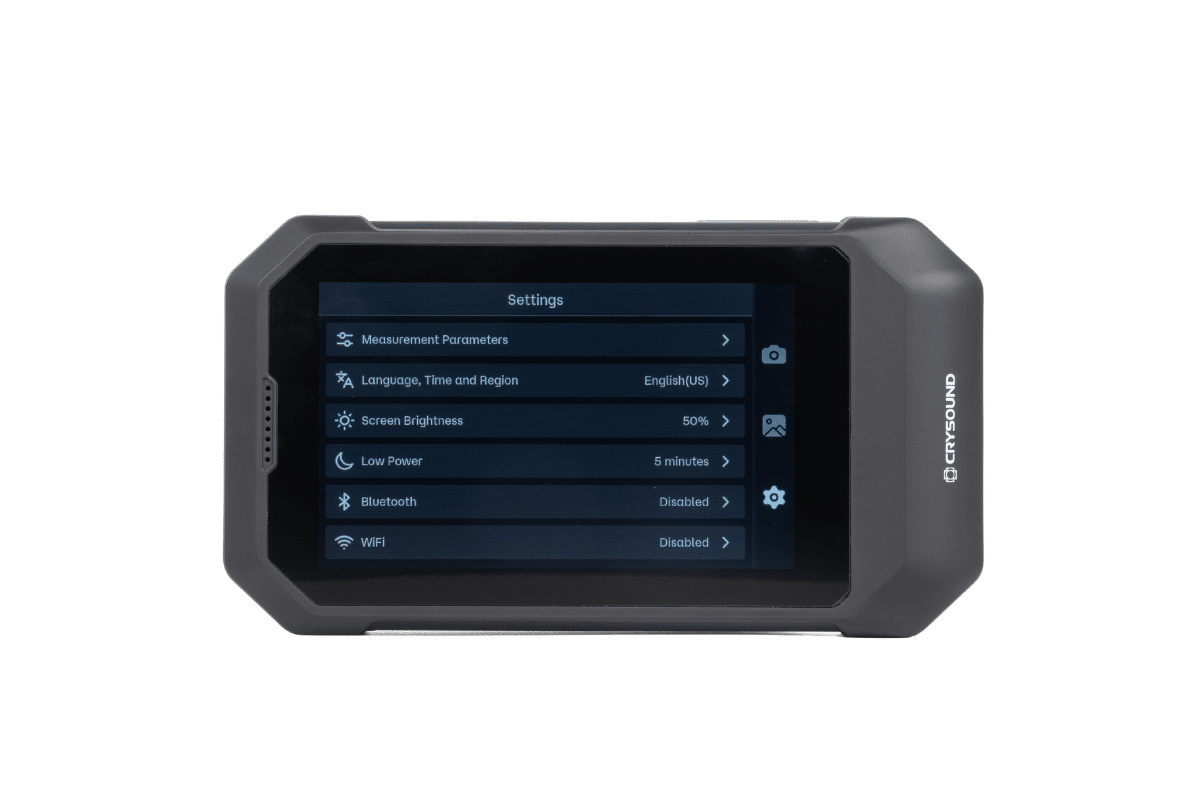

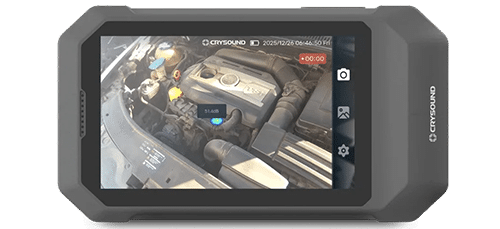

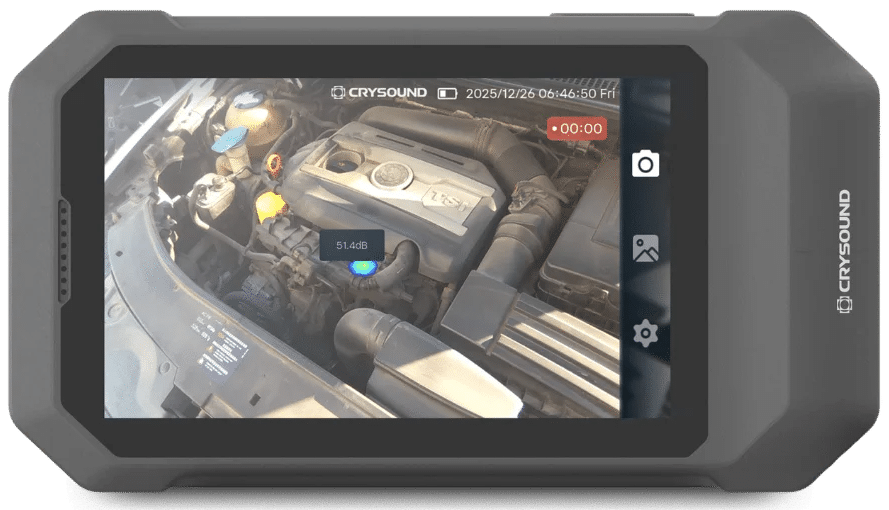

CRY 8025
Pocket Acoustic Imaging Camera
The CRY8025 SonoCam Pocket Pro is Crysound’s pocket acoustic camera, overlaying a live sound map on a real image to pinpoint sound sources fast and document evidence on the go.
It handles non-contact leak detection, partial discharge screening, and HVAC troubleshooting, with one-tap recording and Wi-Fi/USB-C sharing for teams in the field — plus real-time leak rate and loss estimates for audit-ready reporting.
CRY 8025 | CRY 8124 | CRY 8125 | |
|---|---|---|---|
| Name | Pocket Acoustic Imager | Advanced Acoustic Imaging Camera | Advanced Acoustic Imaging Camera (ATEX Version) |
| Microphone Array | 64 channels | 200 channels MEMS microphone | 200 channels MEMS microphone |
| Frequency Range | 2k ~ 65k Hz | 2k – 100k Hz | 2kHz – 100k Hz |
| SPL Range | 28 ~ 132 dBA | 28 – 132 dB | 28 – 132 dBA |
| Dynamic Range | Up to 12 dB | N/A | N/A |
| Test Distance | 0.3 ~ 120 m | 0.5 – 200 m (1 – 656 ft) | 0.5 m – 200 m |
| Leak Detection Rate | 10 m: 0.0028 L/min, 6.9 bar | 10 m 2.7 bar 0.0029 L/min，0.5 m 1.9 bar 0.0028 L/min | 10 m: 0.0029 L/min, 2.7 bar, 0.5 m: 0.0028 L/min, 1.9 bar |
| Camera FOV | 66° | 66° | 66° |
| Camera Pixels | 5 million pixels | 13 million pixels | 13 million pixels |
| Focal Length | 2.26 mm | 4.3 mm | 4.3 mm |
| Display | 4.3-inch capacitive touchscreen, 800 × 480 pixels | 8-inch touch screen, 1920 x 1200 pixels | 8 Inches capacitive touchscreen, 1920 x 1080 pixels |
| Internal Storage | 32 GB | 64GB | 64GB |
| External Storage | N/A | 64GB | 64GB external microSD card |
| Data Forma | .jpg, .mp4, .wav, .cdat | .jpg, .mp4, .wav, .cdat | .jpg, .mp4, .wav, .cdat |
| Battery Life | Up to 3 Hours | 5 Hours | 5 hours |
| Weight | 270 g | 1.4 kg | 1.4 kg |
| Ingress Protection (IP) | IP54 | IP54 | IP54 |
| Operating Temperature | -10 to +50 ℃ | -20℃ to +50℃ | -20℃ to +50℃ |
| Operating Humidity | 10% – 95%, no condensation | 10% - 95%，no condensation | 10% – 95%, no condensation |
| Certifications | - | (Safety) IEC 61010-1 (EMC) IEC 61326-1 (Vibration) 2g，IEC 60068-2-6 (Shock) 25g，IEC 60068-2-27 | IEC 61010-1, IEC 61326-1, 2g, IEC 60068-2-6, 25g, IEC 60068-2 27, 1.2m (4ft) |
| Software Functions | Sound visulization and localization, Gas Leak Detection, Partical discharge detection, Photos and Vidoes recording, Automatic or manual frequency filter, PC software post-processing | Multi-point imaging，directional focus，distance measurement，leak volume estimation，PRPD spectrum，type recongnition，picture labeling，report export，and etc. | Multi-point imaging, directional focus, distance measurement, leak volume estimation, PRRD spectrum, partial discharge type recognition, picture labelling, report export, etc |
| ATEX Certification | N/A | N/A | II 3 G Ex ic IIC T5 gc, II 3 D Ex ic IIIC T100°C Dc |
CRY 8025 | CRY 8124 | CRY 8125 | |
|---|---|---|---|
| Name | Pocket Acoustic Imager | Advanced Acoustic Imaging Camera | Advanced Acoustic Imaging Camera (ATEX Version) |
| Microphone Array | 64 channels | 200 channels MEMS microphone | 200 channels MEMS microphone |
| Frequency Range | 2k ~ 65k Hz | 2k – 100k Hz | 2kHz – 100k Hz |
| SPL Range | 28 ~ 132 dBA | 28 – 132 dB | 28 – 132 dBA |
| Dynamic Range | Up to 12 dB | N/A | N/A |
| Test Distance | 0.3 ~ 120 m | 0.5 – 200 m (1 – 656 ft) | 0.5 m – 200 m |
| Leak Detection Rate | 10 m: 0.0028 L/min, 6.9 bar | 10 m 2.7 bar 0.0029 L/min，0.5 m 1.9 bar 0.0028 L/min | 10 m: 0.0029 L/min, 2.7 bar, 0.5 m: 0.0028 L/min, 1.9 bar |
| Camera FOV | 66° | 66° | 66° |
| Camera Pixels | 5 million pixels | 13 million pixels | 13 million pixels |
| Focal Length | 2.26 mm | 4.3 mm | 4.3 mm |
| Display | 4.3-inch capacitive touchscreen, 800 × 480 pixels | 8-inch touch screen, 1920 x 1200 pixels | 8 Inches capacitive touchscreen, 1920 x 1080 pixels |
| Internal Storage | 32 GB | 64GB | 64GB |
| External Storage | N/A | 64GB | 64GB external microSD card |
| Data Forma | .jpg, .mp4, .wav, .cdat | .jpg, .mp4, .wav, .cdat | .jpg, .mp4, .wav, .cdat |
| Battery Life | Up to 3 Hours | 5 Hours | 5 hours |
| Weight | 270 g | 1.4 kg | 1.4 kg |
| Ingress Protection (IP) | IP54 | IP54 | IP54 |
| Operating Temperature | -10 to +50 ℃ | -20℃ to +50℃ | -20℃ to +50℃ |
| Operating Humidity | 10% – 95%, no condensation | 10% - 95%，no condensation | 10% – 95%, no condensation |
| Certifications | - | (Safety) IEC 61010-1 (EMC) IEC 61326-1 (Vibration) 2g，IEC 60068-2-6 (Shock) 25g，IEC 60068-2-27 | IEC 61010-1, IEC 61326-1, 2g, IEC 60068-2-6, 25g, IEC 60068-2 27, 1.2m (4ft) |
| Software Functions | Sound visulization and localization, Gas Leak Detection, Partical discharge detection, Photos and Vidoes recording, Automatic or manual frequency filter, PC software post-processing | Multi-point imaging，directional focus，distance measurement，leak volume estimation，PRPD spectrum，type recongnition，picture labeling，report export，and etc. | Multi-point imaging, directional focus, distance measurement, leak volume estimation, PRRD spectrum, partial discharge type recognition, picture labelling, report export, etc |
| ATEX Certification | N/A | N/A | II 3 G Ex ic IIC T5 gc, II 3 D Ex ic IIIC T100°C Dc |
Get More Than Just an Acoustic Camera When You Buy From AcSoft
AcSoft Technical Services
We’re now offering a dedicated technical service using Crysound acoustic imaging cameras, delivered by our expert team. This service is designed to help you quickly locate, visualise and understand noise-related issues on site. We offer this service with both our industry leading acoustic cameras.
Typical applications include gas, steam and air leak detection, mechanical faults, and electrical partial discharge, across a wide range of industries.
£800 Half Day Service
This option provides on-site acoustic imaging to quickly locate key issues. It’s ideal when the problem area is known or when a fast indication of fault location is needed for maintenance decisions.
£1500 Full Day Service
A full day allows for a more comprehensive survey across larger or more complex sites. It’s suited to wider areas, or situations where several potential fault sources need to be assessed in detail.
+250 Leak Analysis
Provides clear identification of detected leaks and faults, supported by acoustic images and concise explanations. Ideal for turning on-site findings into clear, actionable information.
