CRY2624 Industrial Acoustic Imager (ATEX Version)
The CRY2624 Industrial Acoustic Imager is suitable for use in environments such as the chemical and energy industries. The device has a aluminium alloy shell, which is sturdy and durable, and can adapt to the complex and changeable working environment. Real-time sound image display, helping the detection of pressurised or vacuum leaks significantly faster compared to other previous methods.
Check out our range of cameras with our acoustic camera comparison page
Interested
For more information on CRY2624 Industrial Acoustic Imager (ATEX Version) or to request a quote, contact our team now:

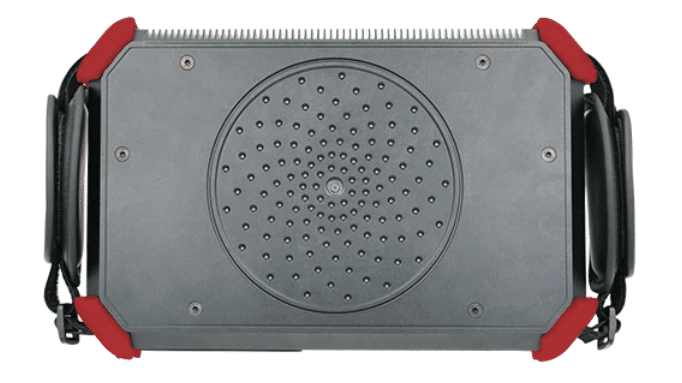

High-Performance Microphones for Efficient Detection With ATEX Certification: 128 digital MEMS microphones can provide exceptionally high sensitivity, sound resolution and detection accuracy, real-time audio-visual display, anti-jamming, help detection.
Leakage assessment by activating the leak measurement function, the camera continuously displays the amount of leaks and losses as well as the level of loss.
PD Detection & PD Type Identification: partial discharges can be detected before more serious faults would occur, even before a thermal camera would detect them.
Template-based processing and recording of data, waveforms, spectra, spectrograms is supported by CRYSOUND report analysis tool software, generating ISO 50001 compliant, editable protocols in Excel format.
| Acoustic Specification |
|---|
| Microphone array | 128 channels MEMS microphone |
| Effective test bandwidth | 2kHz-48kHz |
| Dynamic range | 0.5dB-12dB user adjustable |
| Test sound pressure level range | 25.7-132.5dBA |
| Auto max/min dB gain | User-settable, minimum test bandwidth 1kHz |
| Number of digits | 24bit |
| Sound image FOV | 62° |
| Sound image frame rate | At least 25 FPS |
| Leak detection rate | 10m 5bar 0.92ml/s 0.5m 5bar 0.55ml/s |
| Detect distances | 0.3m-120m |
| Camera |
|---|
| Camera FOV | 62° |
| Camera focal length | 3.04mm fixed focal length |
| Camera pixel | 8 million pixel |
| Display |
|---|
| Resolution | 1024*600 (614,400 pixels) |
| Size | 7 inch |
| Touch screen | Capacitive touch screen |
| Brightness | Adjustable |
| Photo notes | Up to 5 photos notes for reference |
| Source | Show single or multiple sources |
| Standard palettes | 3: Grayscale, Ironbow, Blue-Red |
| Playback function | View photos, videos anytime, and add notes or tags |
| Storage |
|---|
| Internal storage | About 8G |
| External storage | TF memory card, at least 64G, expandable to 256G |
| Data storage format | jpg（Picture）, mp4（Video）wav (Audio) |
| Video length | 5 minutes |
| Digital export | TF Card |
| Power |
|---|
| Battery capacity | 1×[email protected] Rechargeable battery and 1×external battery package, continuous |
| Battery life | 4+6 hours operation time |
| Charger | USB Type-C port， USB PD protocol supported, 15W |
| Power consumption | 15W for battery charge； 29W for maximum power consumption |
| Energy management | Sleep/Auto power off modes |
| Interface |
|---|
| USB 3.0 Type-C USB host port |
| 3.5mm headphone socket |
| Operating Environment |
|---|
| Operating environment | -20℃ – +50℃， 10%-95% no condensation |
| Storage temperature | -20℃ – +60℃ |
| Charging temperature | 10℃ – +45℃ |
| General Specification |
|---|
| Ingress Protection (IP) | IP54 |
| Size | 272mm×174mm×42mm |
| Weight | 1.7kg |
| Warranty | 2 years |
| Self-diagnostic notification | Array-health test function to identify when microphone array needs attention |
| System | Linux system |
| Certification |
|---|
| ATEX (II 3G Ex ic IIC T5 Gc), CE, FCC, RoHS-compliant, MSDS, CNEX |
| Software |
|---|
| Report types | Gas/Electricity, ISO 50001-compliant |
| Analysis | Waveform, Spectrum, Spectrogram, leakage assessment, discharge type discrimination |
