Compact Acoustic Imaging for Industrial Inspections

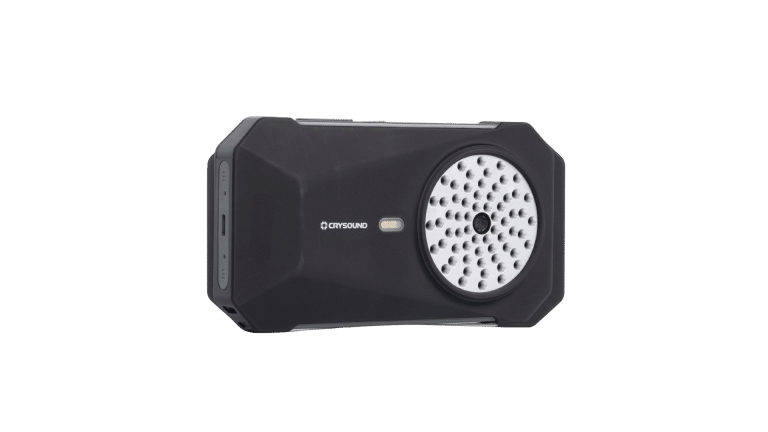

The CRY8025 SonoCam Pocket Pro Acoustic Camera transforms sound into a visual image, helping maintenance, energy and facility teams quickly identify issues that may otherwise go unnoticed. By overlaying a live sound map onto a real image, users can pinpoint sound sources, document findings and take action with confidence.
As one of the smallest and lightest pocket acoustic cameras available, the CRY8025 combines high-sensitivity array sensing, real-time imaging and intelligent analysis within a compact handheld device. Its pocket-sized design makes it suitable for everyday inspections across a wide range of industrial environments.
Applications
The CRY8025 SonoCam Pocket Pro Acoustic Camera is designed for:
- Compressed air leak detection
- Gas leak detection
- Vacuum leak detection
- Partial discharge detection
- HVAC troubleshooting
- Industrial inspections
- Automotive repair applications
The ability to visualise sound sources in real time helps teams identify issues more quickly than traditional methods such as soap testing or manual ultrasonic probes.
Fast, Non-Contact Leak Detection
The CRY8025 enables users to locate leaks and sound sources without physical contact with equipment. Real-time acoustic imaging allows inspections to be completed efficiently while reducing the time required to identify problem areas.
Key benefits include:
- Real-time sound source localisation and visualisation
- Non-contact inspection capability
- Automatic or manual frequency filtering
- Detection distances from 0.3m to 120m
- One-tap recording of inspection data
This combination of speed and simplicity helps streamline inspection workflows across industrial sites.
Auto Frequency Range Selection for Easier Operation
The CRY8025 has been designed to be easy to learn and deploy. Auto Frequency Range Selection simplifies operation, allowing users to focus on inspections rather than complex setup procedures.
Additional usability features include:
- Smartphone-style operation
- Capacitive touchscreen display
- Autofocus camera
- Integrated LED light
- Automatic frequency selection
This straightforward workflow makes acoustic imaging accessible to more members of an inspection team.
Quantify Leaks and Support Maintenance Decisions
The SonoCam Pocket Pro goes beyond identifying leak locations. The system can estimate leak rates, estimate economic losses and generate professional reports.
This helps organisations:
- Identify significant sources of energy loss
- Prioritise repairs
- Support maintenance planning
- Standardise inspection reporting
- Document inspection findings
The result is clear, actionable information that can be shared across maintenance, energy management and facility teams.
Sensitive Leak Detection in a Compact, Connected Camera

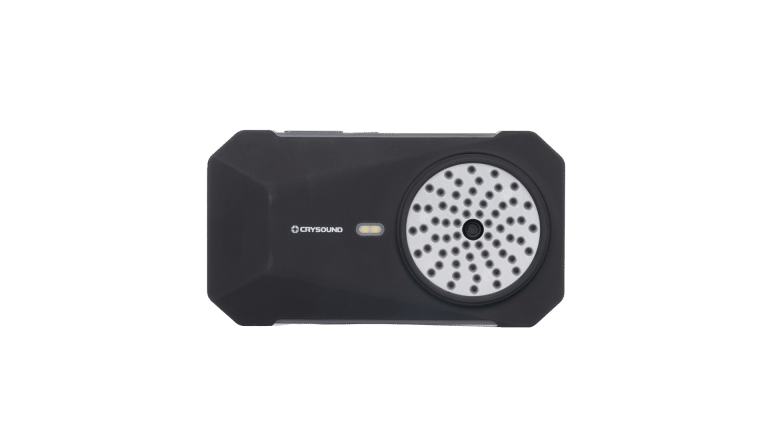

The CRY8025 combines sensitive acoustic imaging with a lightweight, portable design for everyday industrial inspections. Its 64-channel microphone array operates between 2kHz and 65kHz, helping users locate compressed air, gas and vacuum leaks quickly and accurately.
Key features include:
- Sound pressure level range of 28 to 132 dB and dynamic range up to 12 dB
- Minimum detectable leak of 0.0028 L/min at 10m and 6.9 bar
- Detection distances up to 120m
- Lightweight 270g design measuring 150 × 83 × 27.5mm
- IP54 protection and a 1.5m drop-tested design
- 32GB internal storage and up to 3 hours of battery operation
- USB-C charging, Wi-Fi and Bluetooth 5.2 connectivity
Inspection results can be saved as JPG images, MP4 videos, WAV audio or CDAT data files, then transferred using USB-C or Wi-Fi. Mobile and PC software support reporting and post-processing, helping teams maintain consistent inspection records.
Its compact size makes the CRY8025 particularly useful for inspections in tight spaces, elevated locations and other areas where larger equipment may be less practical.
Why Choose the CRY8025 SonoCam Pocket Pro Acoustic Camera?
The CRY8025 combines acoustic imaging, leak detection, partial discharge detection and reporting capabilities within a compact, pocket-sized device. With real-time sound visualisation, automated operation and flexible data-sharing options, it provides a practical solution for organisations looking to identify issues earlier, reduce energy loss and improve inspection efficiency.
Request a Quote or Product Demonstration
To learn more about the CRY8025 SonoCam Pocket Pro Acoustic Camera, speak to the AcSoft team today. We can help you determine whether this acoustic imaging solution is suitable for your application and provide further technical guidance.
