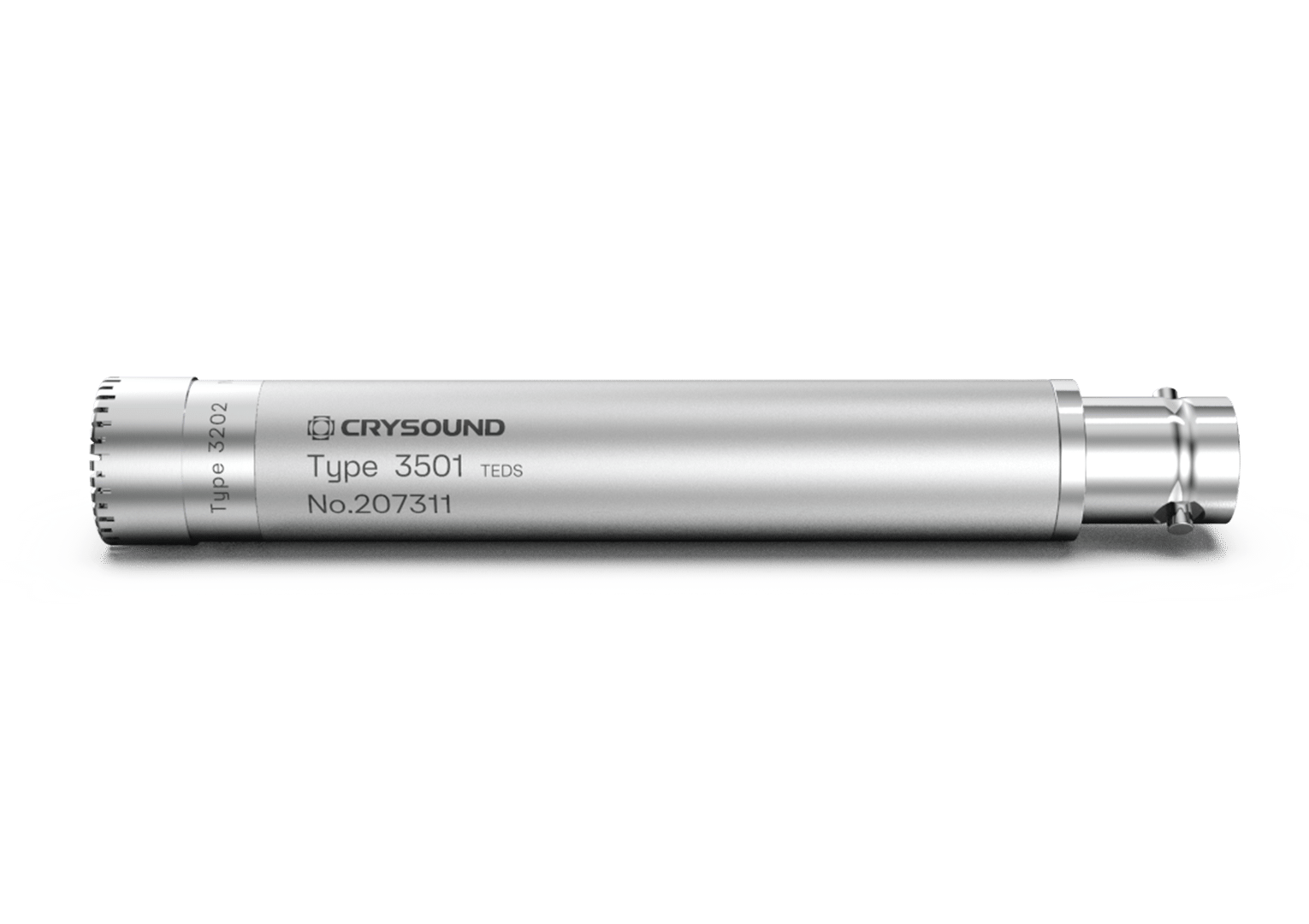

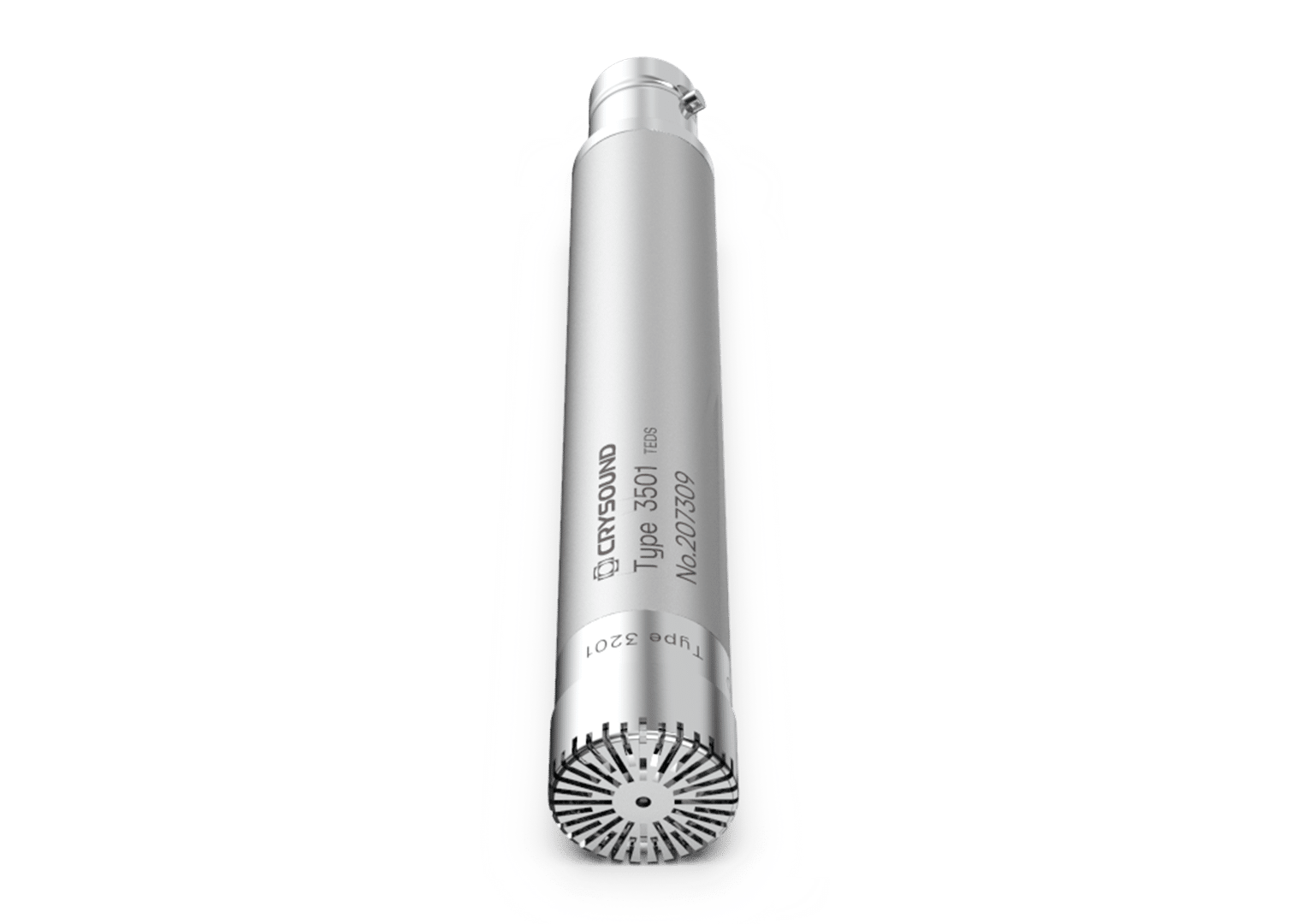

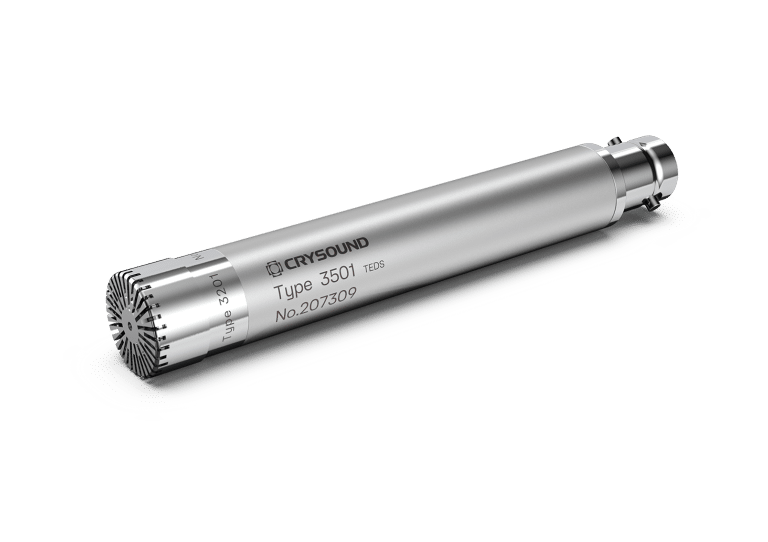

CRY3201-S01 Measurement Microphone Set

CRY3201-S01 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set, specifically designed for high-frequency and high dynamic range acoustic measurements.

Crysound Logo

Interested

For more information on CRY3201-S01 Measurement Microphone Set or to request a quote, contact our team now:

request a quotecontact us
Electroacoustics application
High Frequency Application

The unique design of CRY3201-S01 ensures a flat frequency response, with a measurement frequency range of up to 40kHz, and it can also withstand sound pressure levels of up to 144dB. It is an excellent general-purpose measurement microphone for high-definition audio measurements and other ultrasonic acoustic applications.

CRY3201 Measurement Microphone

CRY3201 is a high precision microphone for measuring with  frequency from 3.15Hz to 40kHz. Can measure high sound pressure levels up to 160dB.  Easy to configure and user-friendly.

CRY3501 Preamplifier

The terminal connector for output is BNC which is convenient to connect to other instrument to input. It is characterised by high input impedance, low background noise and broadband sound range. It can be compatible with  ½  inch prepolarisation measurement microphones.

Typical Frequency Response

The graph shown the carousel of product images on the left, shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.



Unsure what measurement microphone best meets your requirements? Use our handy measurement microphone selection tool to discover which measurement microphone set is the best fit for you.

Technical specification
Field TypeFree-field
Diameter1/2inch
Sensitivity12.5mV/Pa,-38±1.5dB re 1V/Pa
Frequency Response3.15Hz to 40kHz±2dB
Dynamic Range23dBA-145dB
Operating Temperature-30 to +70℃ (-22 to +158℉)
Temperature Stability0.005dB/℃(-10 to +50℃) 0.003dB/℉(+14 to +122℉)
Static Pressure Stability0.01dB/kPa
Operating Humidity Range0 to 90%RH no condensation
Humidity Stability< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization VentRear vented
IEC 61094-4 TypeWS2F
Output Impedance＜25Ω
Maximum Output Voltage＞8Vp
Current SourceIEPE (2mA to 20mA)
Typical Operating Current4mA
Interface TypeBNC
Height with Grid88.5mm (3.48″)
Diameter with Grid13.2mm (0.52″)
