We are pleased to announce the arrival of the CRY3213 NVH measurement microphone from Crysound, designed specifically for accurate and repeatable measurements in automotive, aerospace and engineering noise vibration harshness testing.
Developed for engineers, the CRY3213 offers a practical and cost effective option for both new and existing test setups.
Built for Consistent Performance in Demanding Environments
Accurate NVH measurement in automotive environments has never been more demanding. From extreme temperatures and high vibration levels to water ingress, contamination, and electromagnetic interference, modern vehicle testing pushes microphones far beyond the controlled conditions of a laboratory.
Reliable data and efficient test methods have always been fundamental to acoustic noise, vibration and harshness (NVH) testing. However, as vehicles continue to evolve, the demand for higher-quality data and more robust measurement approaches has become increasingly critical. The transition to electric, hybrid and autonomous vehicles introduces new NVH challenges, requiring informed analysis and careful engineering trade-off decisions.
In full-vehicle and powertrain testing, microphones are frequently installed in locations such as engine bays, wheel arches, underbodies, and close to electric drive systems. These environments expose sensors to a combination of:
- Severe temperature fluctuations
- Water, oil, dust and road debris
- High shock and vibration levels
- Strong electromagnetic fields
- Frequent installation, removal and reconfigurations
The CRY3213 is built for long-term stability and robustness, helping you to maintain consistent results where temperature variation, and repeated testing are unavoidable. Some of the key specs include:

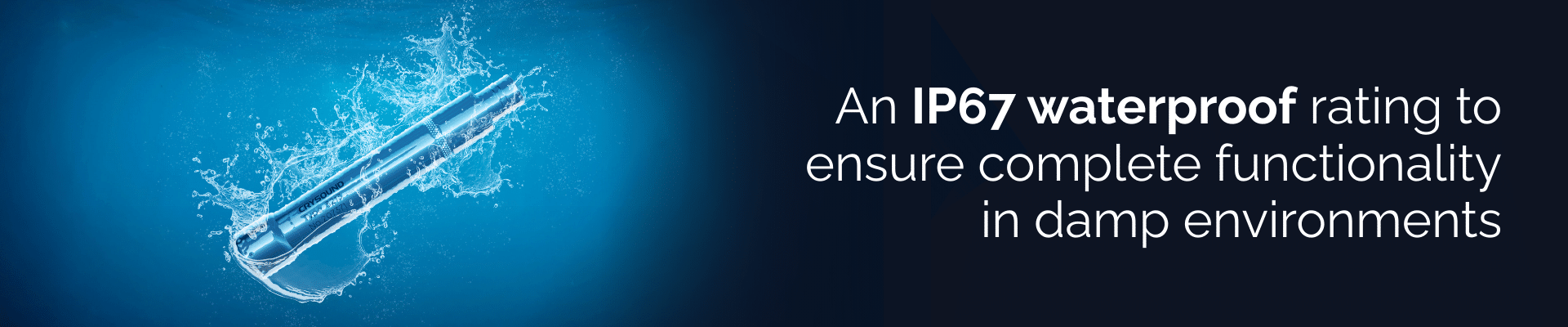

- Waterproof & dustproof – safe to use in humid or environments where water splashing may occur. Compliant with IP67 standards
- EMC Immunity – making the CRY3213 suitable for harsh electromagnetic environments
- Shock resistance – mitigates risks from accidental drops and mechanical vibrations
- Extreme temperature performance – designed to operate in the temperature range of –50 °C to +125 °C

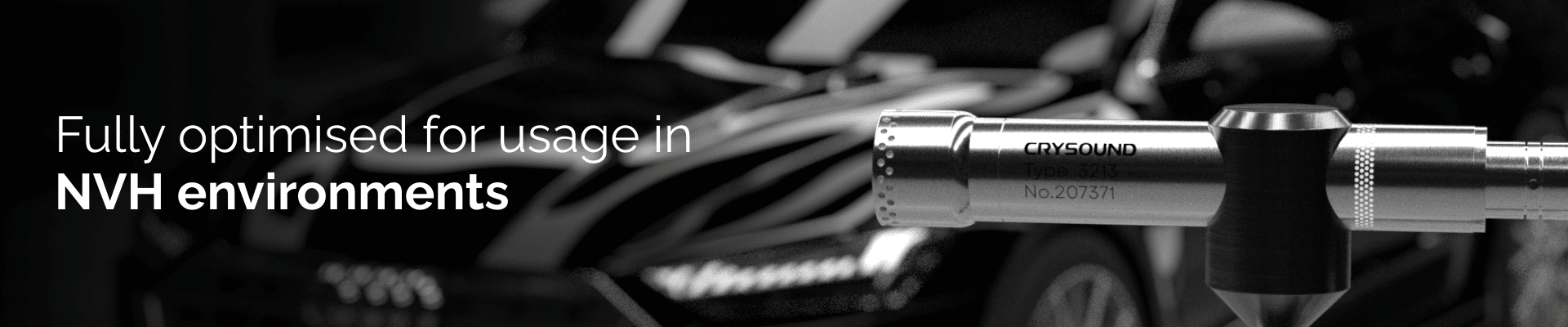

As a ½-inch free-field, prepolarised measurement microphone, it covers the full human hearing range, making it suitable for everything from low-noise idle investigations to high sound pressure levels at elevated engine speeds.
One of the most common challenges engineers often face in vehicle testing, is sensitivity drift caused by moisture ingress, contamination, or mechanical stress. The CRY3213 addresses this through its multi-layer protective design, helping maintain measurement integrity over extended test periods.
The multi-layer protective design is made up of a titanium alloy perforated grille, high acoustic transparency dust mesh and full sealed waterproof design around connectors, vents and critical components
These design features help ensure a stable output, even after repeated exposure to harsh environments.
The CRY3213 Specification vs Market leader
| Specification | CRY3213 | Market leader |
| Microphone type | ½″ free-field condenser | ½″ free-field condenser |
| Frequency range (±2 dB) | 3.15 Hz – 20 kHz | 3.15 Hz – 20 kHz |
| Sensitivity | 50 mV/Pa (–26 dB re 1 V/Pa) | 50 mV/Pa (–26 dB re 1 V/Pa) |
| Dynamic range | 17 dBA – 136 dB | 18 dBA – 133 dB |
| Output impedance | < 50 Ω | < 50 Ω |
| Power/supply | IEPE/CCP 2–20 mA (typ. 4 mA) | IEPE/CCP 2–20 mA |
| Max output voltage | > 8.0 Vp | > 8.0 Vp |
| Operating temperature | –50 °C to +125 °C | –40 °C to +125 °C |
| Storage temperature | –25 °C to +70 °C | –40 °C to +85 °C |
| Humidity (non-condensing) | 0–90 % RH | 10–90 % RH |
| IP rating | IP67 | IP67 |
| TEDS Support | IEEE 1451.4 | IEEE 1451.4 |
How to Select the Correct Microphone
Selecting the most appropriate measurement microphone is critical to achieving reliable NVH data, particularly where operating conditions, frequency range and dynamic range vary between test scenarios.
To help with this, AcSoft have created the Measurement Microphone Selection Tool, designed to help engineers identify suitable microphones based on key applications and specification parameters.
Supported by AcSoft
As with all instrumentation supplied by AcSoft, the CRY3213 is supported by an expert technical support team and calibration service. By using the AcSoft calibration service you can have confidence in the calibration quality and full traceability, helping to ensure measurement confidence and consistency
The CRY3213 is also backed by an industry leading 10 year warranty programme.
Available to purchase now, get in touch to discuss your applications or request further technical information from the experts at AcSoft.
