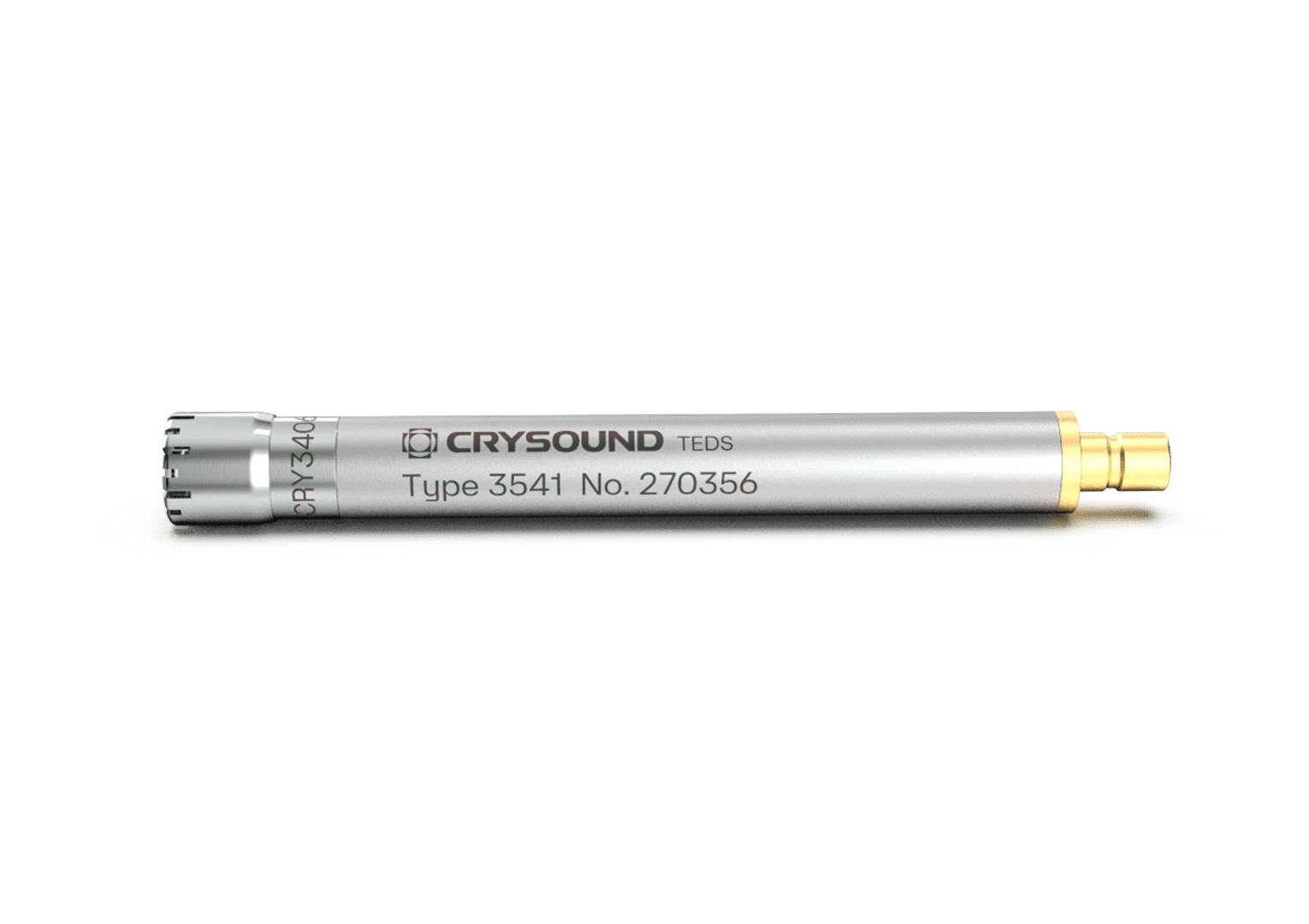

CRY3406-S01 Measurement Microphone Set
The set is comprised of the CRY3406 and CRY3541 models. It is a low-noise 1/4-inch pressure-field microphone set designed specifically for sensitive acoustic testing in low-noise environments.
Interested
For more information on CRY3406-S01 Measurement Microphone Set or to request a quote, contact our team now:
The CRY3406-S01 features a unique design that minimises self-noise, ensuring clear and accurate readings. With its ability to handle sound pressure levels up to 142 dB, it is an exceptional general-purpose measurement microphone set, ideal for high-definition audio analysis and various acoustic applications.
CRY3406 Measurement Microphone
CRY3406 is a low-noise microphone with frequency from 4Hz-20kHz. Its small size makes it suitable for low-noise testing, audio information acquisition, audio recording. Can measure sound pressure levels from 26dBA-140dB.
CRY3541 Preamplifier
IEPE preamplifier with SMB terminal connector. It can combine with ¼ inch measurement microphone. It is used for the condition of electroacoustic test system or multi-noise analysis.
Unsure what measurement microphone best meets your requirements? Use our handy measurement microphone selection tool to discover which measurement microphone set is the best fit for you.
| Technical Specification |
|---|
| Field Type | Pressure-field |
| Diameter | 1/4inch |
| Sensitivity | 15.8mV/Pa,-36±1.5dB re 1V/Pa |

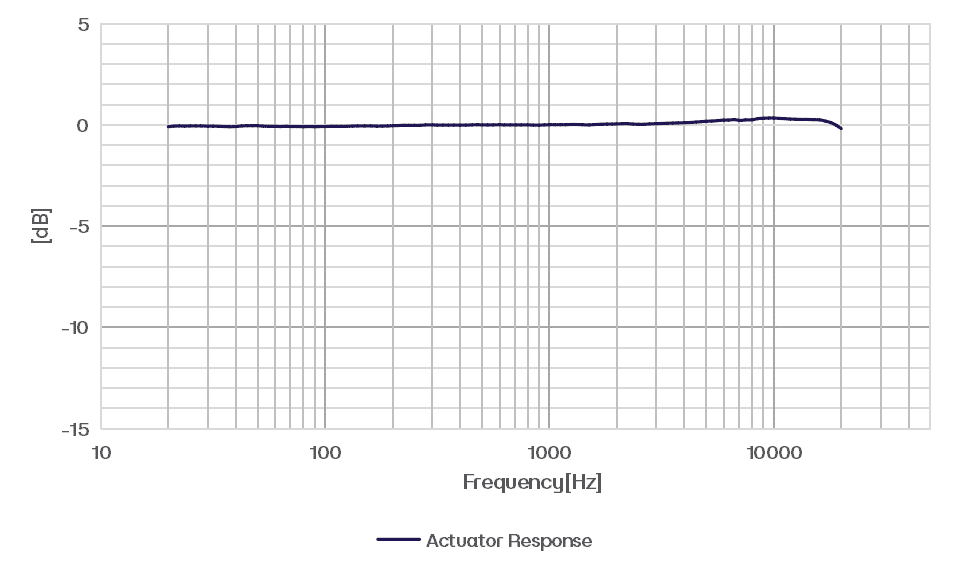

| Frequency Response | 4Hz to 20kHz±2dB |
| Dynamic Range | 26dBA to 142dB |
| Operating Temperature | -20 to +60℃ (-4 to +140℉) |
| Temperature Stability | 0.015dB/℃ (-10 to +50℃) 0.008dB/℉(+14 to +122℉) |
| Static Pressure Stability | -0.01dB/kPa |
| Operating Humidity Range | 0 to 90%RH no condensation |
| Humidity Stability | < 0.1dB (0 to 90%RH no condensation) |
| Pressure Equalization Vent | Side vented |
| IEC 61094-4 Type | WS3P |
| Output Impedance | < 20Ω |
| Maximum Output Voltage | > 5.0Vrms |
| Current Source | IEPE (2mA to 10mA) |
| Typical Operating Current | 4mA |
| Interface Type | SMB |
