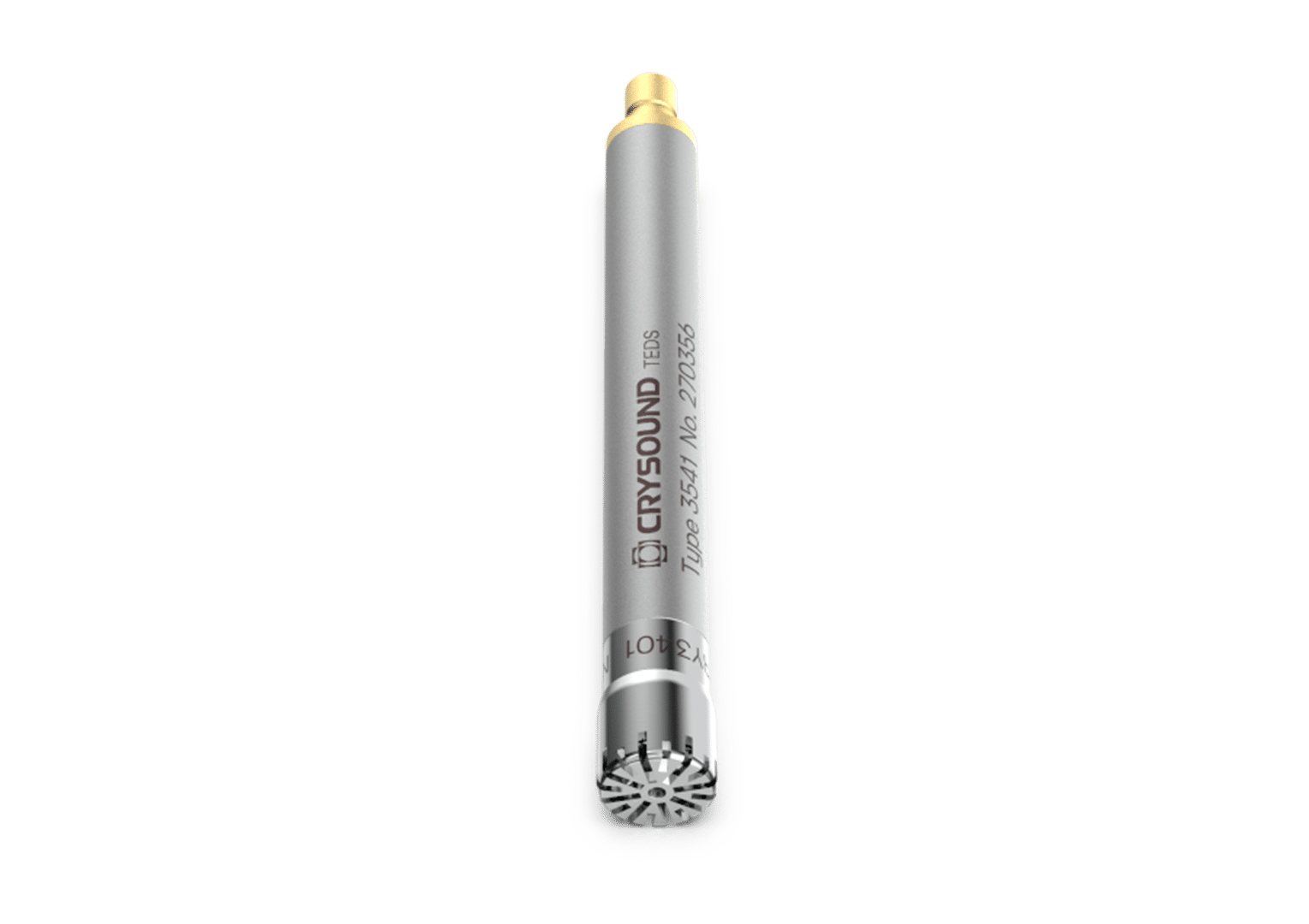

CRY3401-S01 Measurement Microphone Set

This set consists of the CRY3401 and CRY3541 models. It is suitable for testing applications with small dimensions and low noise levels. The CRY3401-S01 is designed specifically for sensitive acoustic testing in low-noise environments.

Crysound Logo

Interested

For more information on CRY3401-S01 Measurement Microphone Set or to request a quote, contact our team now:

request a quotecontact us
High Frequency Application
Ultrasound application
Array application

The unique design of CRY3401-S01 provides it with very low self-noise and a measurement frequency range of up to 40 kHz. It is capable of withstanding sound pressure levels up to 142 dB. It is an excellent general-purpose measurement microphone set suitable for high-definition audio measurements and other ultrasonic acoustic applications.

  • High frequency free-field microphone set
  • TEDS microphone set
  • Extensive compatibility
  • Durable, reliable, and high quality

CRY3401 Measurement Microphone

The CRY3401 is a high-sensitivity 1/4-inch microphone with a frequency range of 4Hz to 40kHz. It is suitable for applications that require high sensitivity in tight spaces

CRY3541 Preamplifier

IEPE preamplifier with SMB terminal connector. It can combine with ¼  inch measurement microphone. It is used for the condition of electroacoustic test system or multi-noise analysis.



Unsure what measurement microphone best meets your requirements? Use our handy measurement microphone selection tool to discover which measurement microphone set is the best fit for you.

Technical Specification
Field TypeFree-field
Noominal Sensitivity15.8mV/Pa, -36±1.5dB re 1V/Pa
Frequency Response4Hz to 40kHz±2dB
Polarization Voltage0V
Dynamic Range(re.20uPa)26dBA to 140dB
Operating Temperature-20 to +60℃ (-4 to +140℉)
Temperature Stability0.010dB/℃(-10 to +50℃) 0.006dB/℉(+14 to +122℉)
Static Pressure Stability-0.01dB/kPa
Operating Humidity Range0 to 90%RH no condensation
Humidity Stability< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization VentSide vented
IEC 61094-4 TypeWS3F
Output Impedance< 20Ω
Maximum Output Voltage> 5.0Vrms
Current SourceIEPE (2mA to 10mA)
Typical Operating Current4mA
Interface TypeSMB
Height with Grid62.5mm (2.461″)
Diameter with Grid7mm (0.276″)
