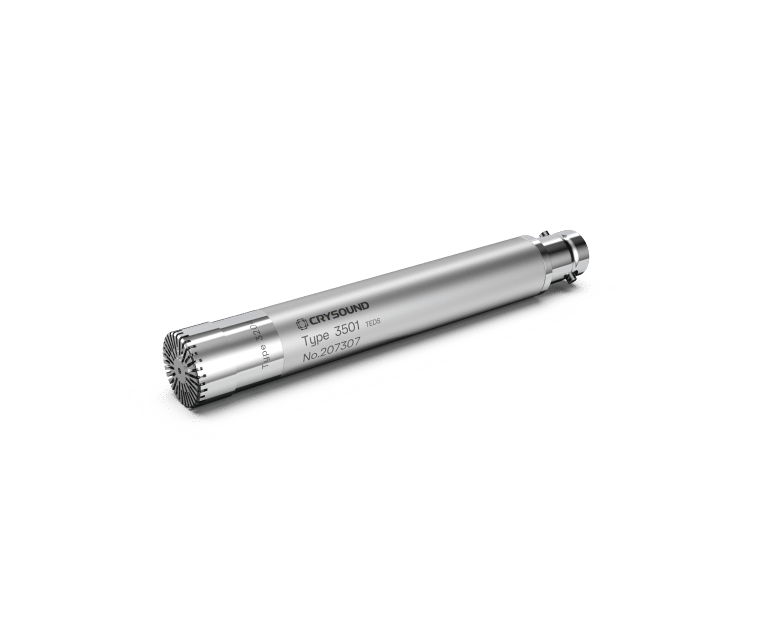

CRY3204-S01 Measurement Microphone Set
The set consists of the CRY3204 and CRY3501 models. It is a high-sensitivity pressure-field microphone set suitable for electroacoustic testing, noise testing, and other related applications.
Interested
For more information on CRY3204-S01 Measurement Microphone Set or to request a quote, contact our team now:
The distinctive design of the CRY3204-S01 makes it highly effective for testing a wide range of electroacoustic devices, including speakers and headphones. Its versatility also extends to acoustic design research and audio equipment calibration, making it a valuable tool in these specialised fields.
- High sensitivity pressure field microphone set
- TEDS microphone set
- Extensive compatibility
- Durable, reliable and high quality
CRY3204 Measurement Microphone
CRY3204 is a high sensitivity microphone with frequency from 3.15Hz-10kHz. Its small size makes it suitable for low-noise testing, audio information acquisition, audio recording. Can measure sound pressure levels from 16dBA-146dB.
CRY3501 Preamplifier
The terminal connector for output is BNC which is convenient to connect to other instruments to input. It is characterised by high input impedance, low background noise and broadband sound range. It can be compatible with ½ inch prepolarisation measurement microphone.
Unsure what measurement microphone best meets your requirements? Use our handy measurement microphone selection tool to discover which measurement microphone set is the best fit for you.
| Technical Specification |
|---|
| Field Type | Pressure-field |
|---|---|
| Noominal Sensitivity | 50mV/Pa, -26±1.5dB re 1V/Pa |
| Frequency Response | 3.15Hz to 10kHz±2dB |
| Polarization Voltage | 0V |
| Dynamic Range(re.20uPa) | 16dBA to 135dB |
| Operating Temperature | -30 to +70℃ (-22 to +158℉) |
| Temperature Stability | 0.012dB/℃(-10 to +50℃ ) 0.007dB/℉(+14 to +122℉) |
| Static Pressure Stability | -0.01dB/kPa |
| Operating Humidity Range | 0 to 90%RH no condensation |
| Humidity Stability | < 0.1dB (0 to 90%RH no condensation) |
| Pressure Equalization Vent | Rear vented |
| IEC 61094-4 Type | WS2P |
| Output Impedance | ＜25Ω |
| Maximum Output Voltage | ＞8Vp |
| Current Source | IEPE (2mA to 20mA) |
| Typical Operating Current | 4mA |
| Interface Type | BNC |
| Height with Grid | 92mm (3.62″) |
| Diameter with Grid | 13.2mm (0.52″) |
