CRY3203-S01 Measurement Microphone Set

CRY3203-S01 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

Interested

For more information on CRY3203-S01 Measurement Microphone Set or to request a quote, contact our team now:

request a quote contact us

CRY3203-S01 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

‍The unique design of CRY3203-S01 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.

High sensitivity, free field microphone set
TEDS microphone set
Extensive compatibility
Durable, reliable and high quality

Unsure what measurement microphone best meets your requirements? Use our handy measurement microphone selection tool to discover which measurement microphone set is the best fit for you.

Technical specification

Field Type	Free-field
Nominal Sensitivity	50mV/Pa, -26±1.5dB re 1V/Pa

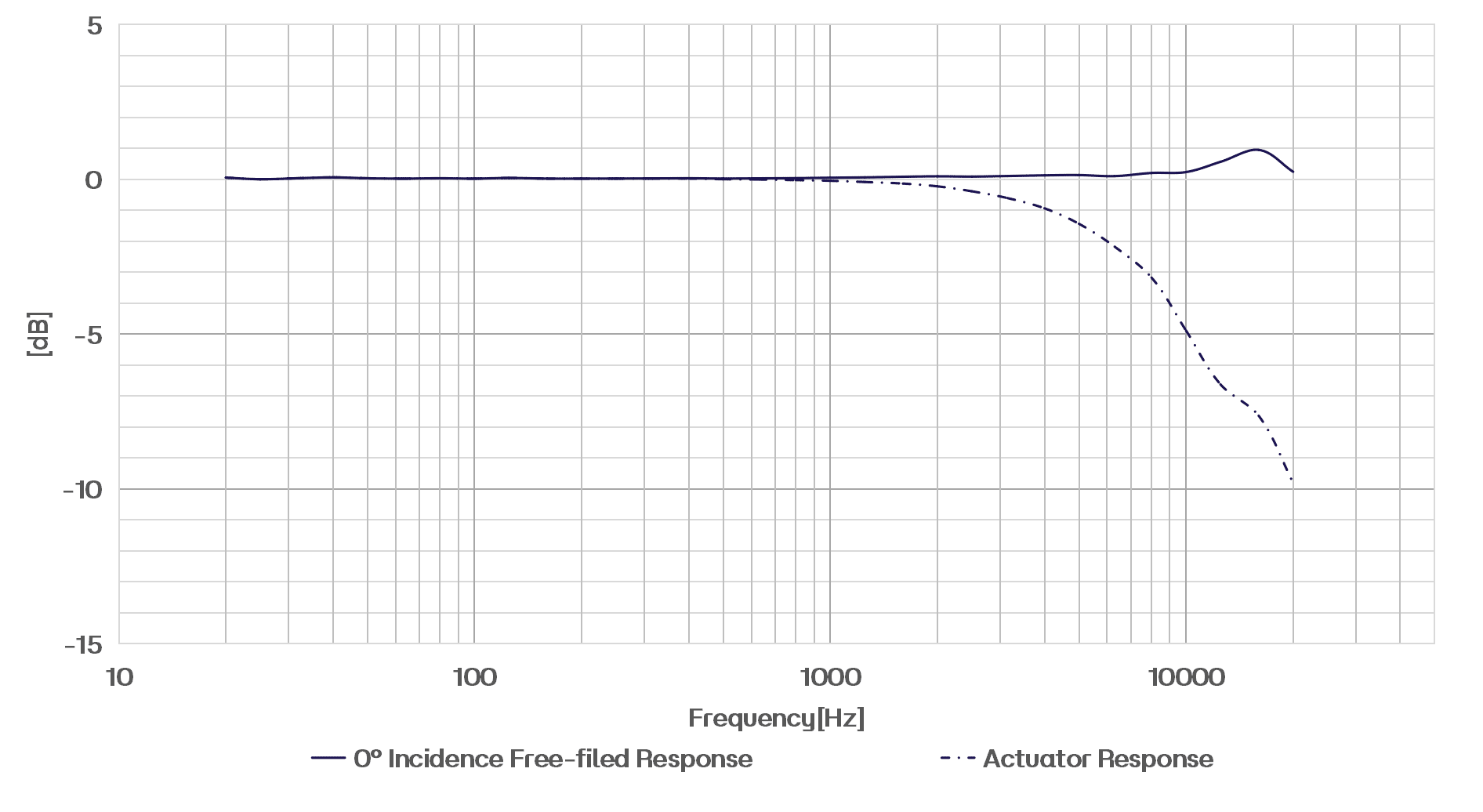

Frequency Response	3.15Hz to 20kHz ±2dB
Polarization Voltage	0V
Dynamic Range(re.20uPa)	16dBA to 135dB
Operating Temperature	-30 to +70℃ (-22 to +158℉)
Temperature Stability	0.012dB/℃(-10 to +50℃) 0.007dB/℉(+14 to +122/℉)
Static Pressure Stability	-0.01dB/kPa
Operating Humidity Range	0 to 90%RH no condensation
Humidity Stability	< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent	Rear vented
IEC 61094-4 Type	WS2F
Output Impedance	＜25Ω
Maximum Output Voltage	＞8Vp
Current Source	IEPE (2mA to 20mA)
Typical Operating Current	4mA
Interface Type	BNC
Height with Grid	92mm (3.62″)
Diameter with Grid	13.2mm (0.52″)
