Voyager

Voyager

Description

MOBILE DATA ACQUISITION & VIBRO-ACOUSTIC ANALYSIS

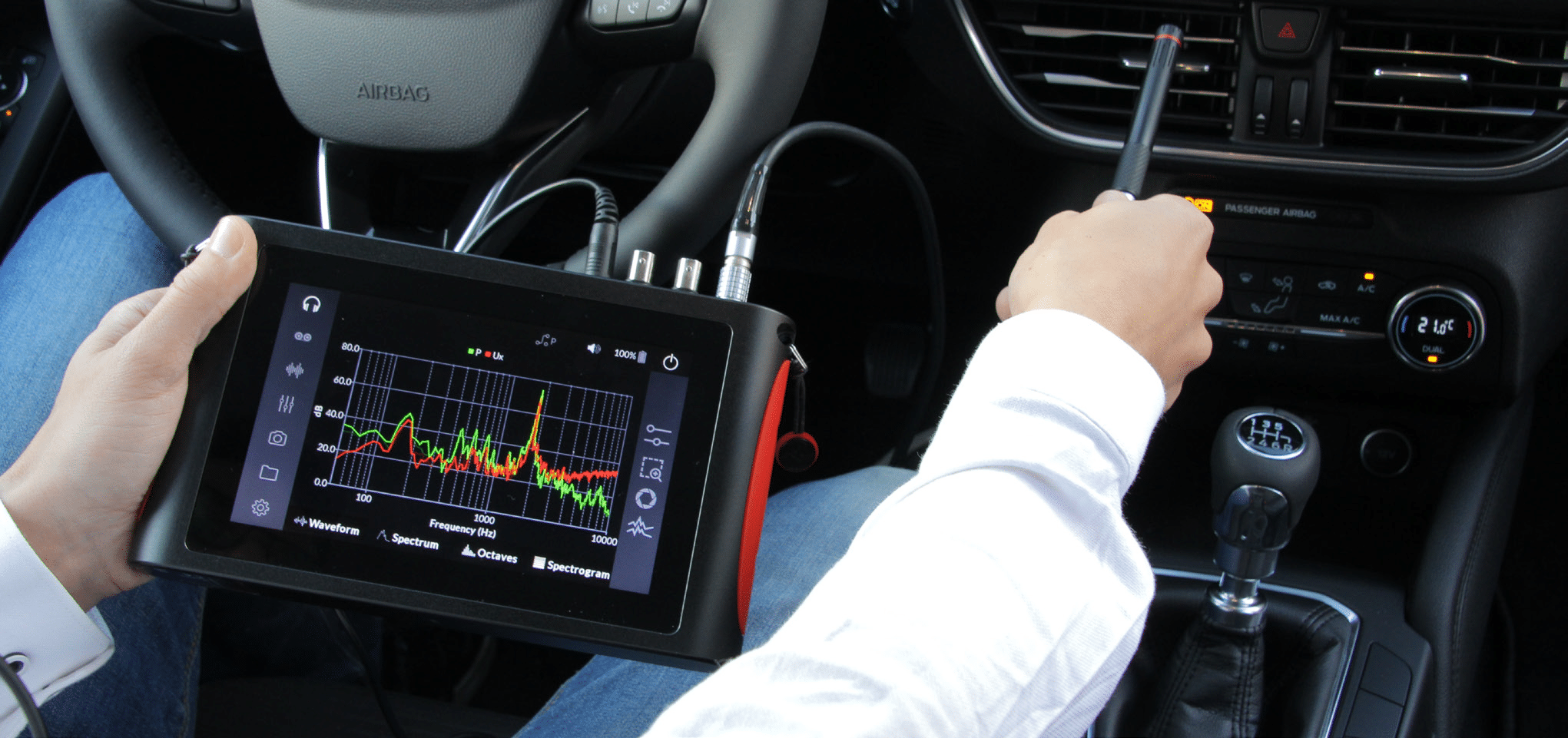

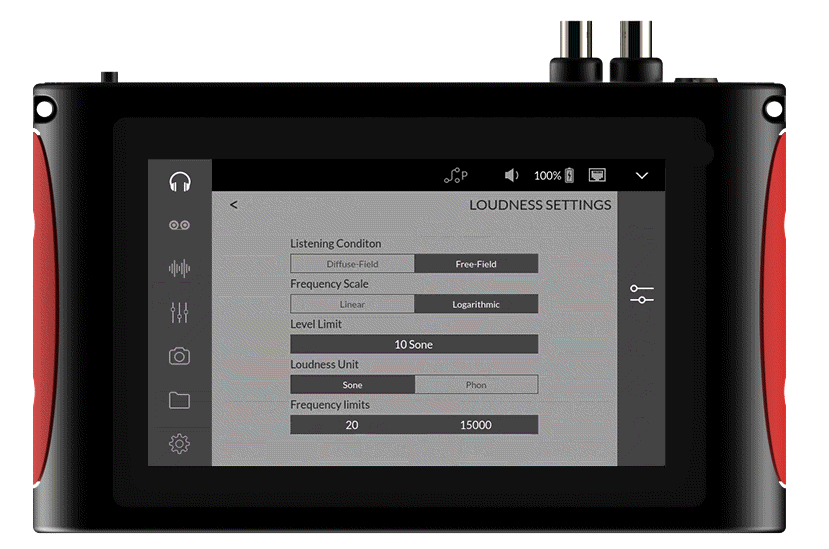

The Voyager is a portable all-in-one device that merges multiple functional units like data acquisition, signal conditioning and storage into a powerful NVH unit ideal for vibro-acoustic data recording, visualisation and analysis.

FEATURES

  • Portable measurement device
  • Built-in battery and internal storage capacity
  • Autonomous operation

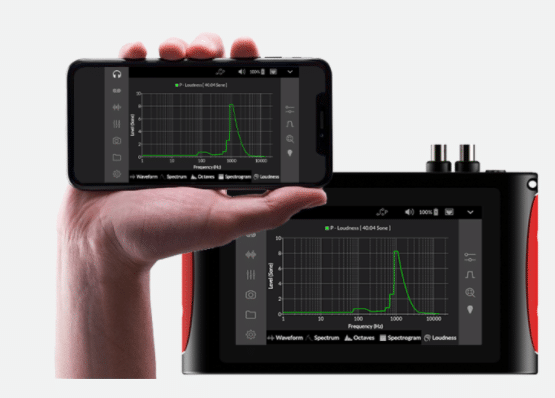

  • Embedded touch controlled software data analysis
  • Octave Bands, FFT, Spectrogram & Wavevorm
  • Real time audio filtering and listening

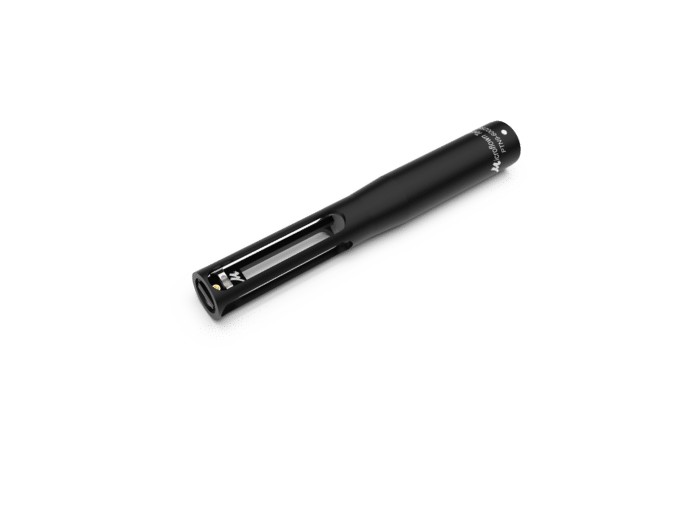

  • Compatibility with all Microflown probes
  • Compatible with up to 2 additional (IEPE) sensors

APPLICATIONS

  • Noise source identification

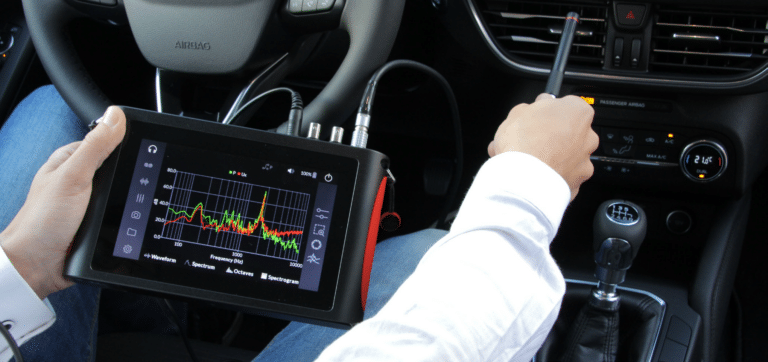

  • Buzz, Squeak & Rattle noise localisation
  • Quality and End-of-Line Control
  • Acoustic leakage detection
  • Acoustic analysis

SIMPLIFYING TESTING TIMES

The Voyager merges multiple functional units like data acquisition, data storage and signal conditioning into a sleek tablet device. Embedded software with touchscreen response allows a more intuitive and user friendly operation for real-time audio playback and comprehensive analysis of the acquired data. Besides conventional FFT and octave frequency analyses, the implementation of spectrogram analysis allows the user to also study non-stationary or transient noises. Targeted analysis with the help of real-time filters on a data channel optimises the workflow and efficiency of the Voyager. The possibility of extension up to 6 channels allows autonomous measurement with reference microphones or accelerometers to correlate and compare data measurements.



SPECIFICATIONS

General

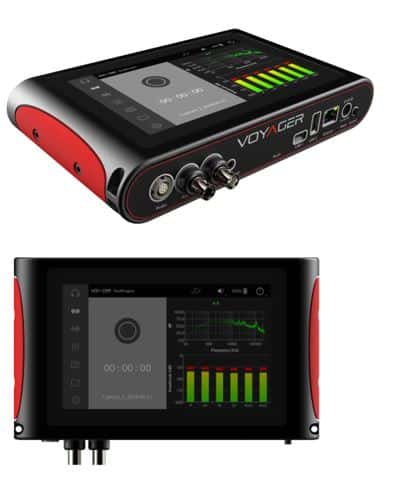

Input Channels 6 channels: 1 x LEMO 7-pin (4 channels) + 2 x BNC IEPE
Output Channels Stereo 3.5mm Jack
Other connectors Micro USB OTG, USB 2.0, Ethernet, DC power
CPU Quad Core 1 GHz
ADC resolution 24 bit
Input Voltage range ± 0.1 V, ± 1 V or ±10 V
Internal Memory 32 GB
Sampling Frequencies 8 kHz, 16 kHz, 24 kHz, 32 kHz and 48 kHz
Display 7 inch LCD Color TTL (800×480)
Operating temperature 0 °C to 40 °C
Storing temperature -10 °C to 50 °C
Physical | Voyager
Physical dimensions 225 mm x 135 mm x 40 mm
Weight 1.3 Kg
Power Supply & Battery
Nominal Power Supply 18 VDC
Battery type Lithium-ion
Battery capacity 4800 mAh | 34.6 Wh
Operating time 6 h

To download the data sheet click here
